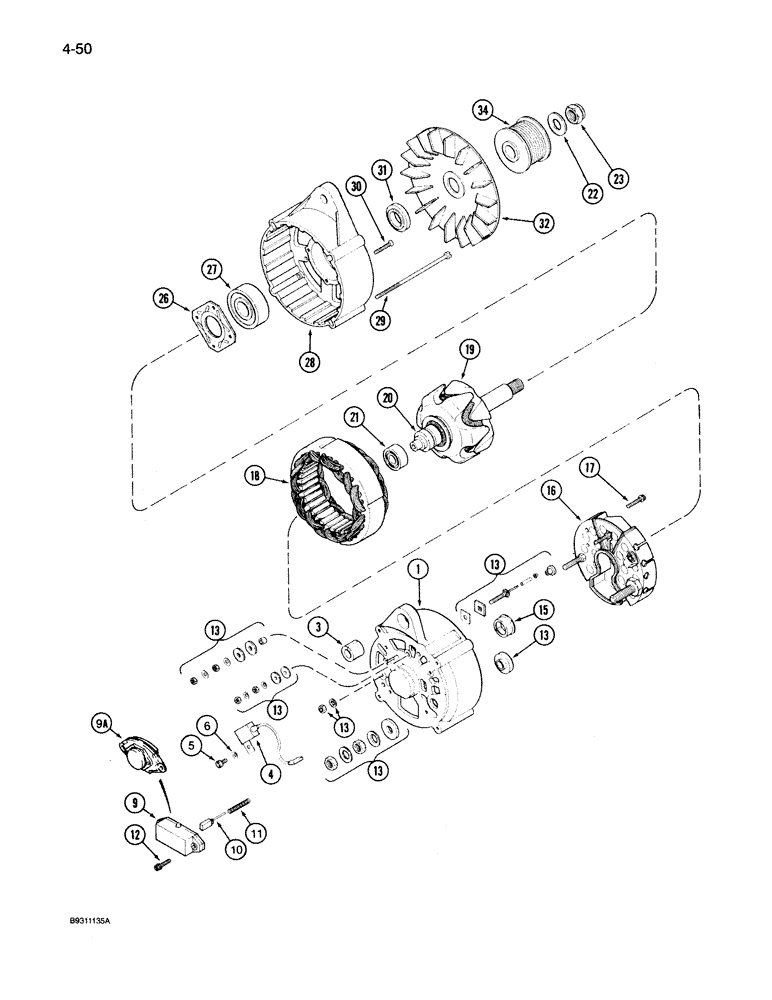

Запчасти Case IH 7130 (4-050) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 110 ampere, Replaces: P/N 91448C1, Includes: Refs. 1-32

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - alternator

1шт.

5

684857C1

SCREW

SCREW - fillister head, capacitor retaining

1шт.

6

A186196

WASHER

WASHER - retaining screw

1шт.

9

1964733C1

REGULATOR

REGULATOR ASSEMBLY - voltage, Includes Ref. 10 and 11, no longer available, Order: P/N 111899A1 regulator, Ref. 9A

1шт.

9a

111899A1

REGULATOR

REGULATOR - voltage

1шт.

10

3079394R91

BRUSH SET

BRUSH SET - alternator

1шт.

11

1964734C1

SPRING

SPRING - compression

2шт.

12

A186194

SCREW,M4 x 18mm

SCREW, , Regulator retaining Sltd Truss Hd, M4 x 18, w/LW

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

15

1546477C1

SLEEVE

SLEEVE - housing ball bearing

1шт.

16

1964732C1

RECTIFIER

RECTIFIER BRIDGE - alternator

1шт.

17

A187504

SCREW

BOLT - rectifier bridge, P/N 91448C1 alternator

2шт.

17

1964749C1

SCREW

BOLT - rectifier bridge, P/N 91448C2 alternator

2шт.

18

1964735C1

STATOR

STATOR ASSEMBLY - alternator

1шт.

19

1964728C1

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

20

3079410R1

RING

RING - collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

BEARING - ball

1шт.

22

495-21063

WASHER,9/16"

WASHER - flat, 5/8 x 1-15/32 x 7/64 inch

1шт.

23

131-56

LOCK NUT,5/8"-18, GB

NUT - lock, 5/8 inch NF

1шт.

26

1964727C1

PLATE

PLATE - retaining, bearing

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball, drive end

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

1964748C1

SCREW

BOLT - retaining, alternator

4шт.

30

1964750C1

SCREW

SCREW - flat head, retaining

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

34

A189616

PULLEY

PULLEY - alternator, Replaces: P/N J902099

1шт.
