Запчасти Case IH 7120 (4-20) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS

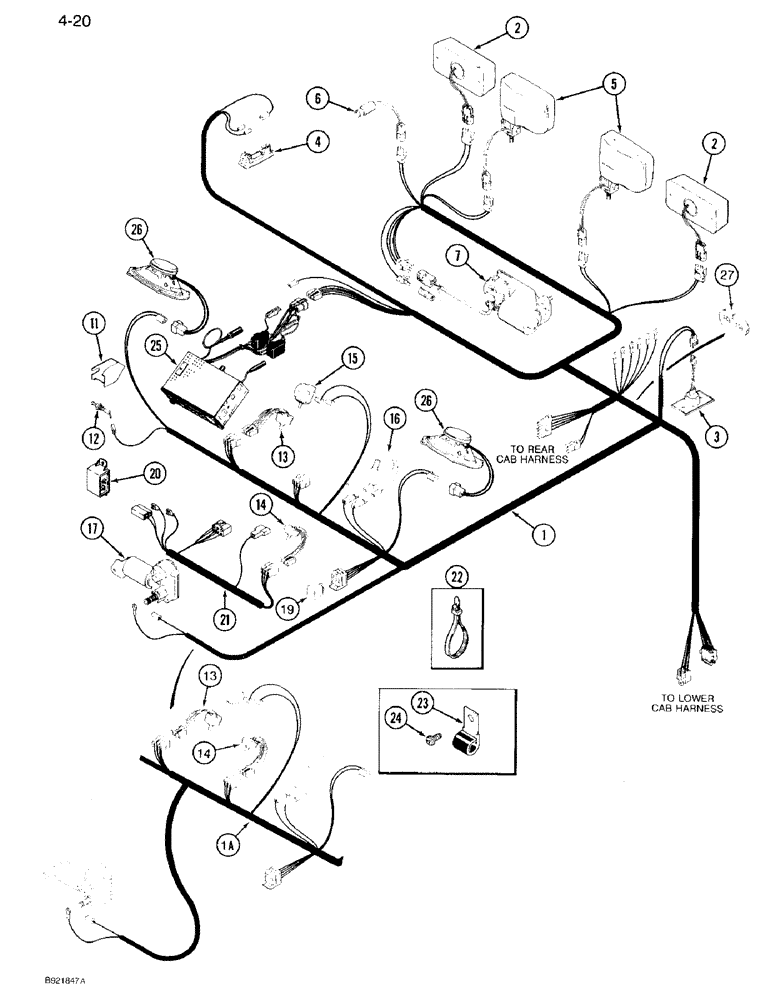

Схема запчастей Case IH 7120 - (4-20) - CAB HEADLINER HARNESS (04) - ELECTRICAL SYSTEMS
20
21
3
11
23
15
1a
13
24
1
2
14
6
27
7
22
16
19
13
14
12
26
2
17
4
5
25
26

Артикул

Название

Примечание

Количество

1

1964559C1

HARNESS

- headliner, if used

1шт.

1a

1964559C2

HARNESS

- headliner, if used

1шт.

2

REF

INSTRUCTION

LAMP ASSEMBLY - warning, See Figure 4-50

2шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - console, See Figure 4-54

1шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - dome, See Figure 4-54

1шт.

5

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, See Figure 4-54

2шт.

6

92153C1

SWITCH

- pressure, air conditioning low

1шт.

7

REF

INSTRUCTION

MOTOR ASSEMBLY - wiper, windshield, See Figure 4-60

1шт.

11

1977350C1

COVER

- switch, door

1шт.

12

245175C1

SWITCH

- dome light, door

1шт.

13

92115C2

SWITCH

- wiper, windshield

1шт.

14

92100C2

SWITCH

- blower

1шт.

15

92101C1

SWITCH

- thermostat

1шт.

16

REF

INSTRUCTION

LIGHT - indicator, air conditioning shut down, See Figure 9-134

1шт.

17

REF

INSTRUCTION

MOTOR ASSEMBLY - wiper, rear, See Figure 4-62

1шт.

19

1-7877

RELAY

- electrical, air conditioning, if equipped

1шт.

20

D144471

RELAY

- switch, 75 ampere, if equipped

1шт.

21

1964697C1

HARNESS

- adapter, blower, if equipped

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

2шт.

23

97249C1

CLIP

CLAMP - harness

2шт.

24

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - truss head tap, No.10 x 3/4 inch, polyseal

2шт.

25

REF

INSTRUCTION

RADIO - entertainment, See Figure 4-58

1шт.

26

REF

INSTRUCTION

SPEAKER - radio, See Figure 4-58

2шт.

27

97039C1

GROMMET

- windshield upper channel

1шт.

Выбрано товаров: 24
