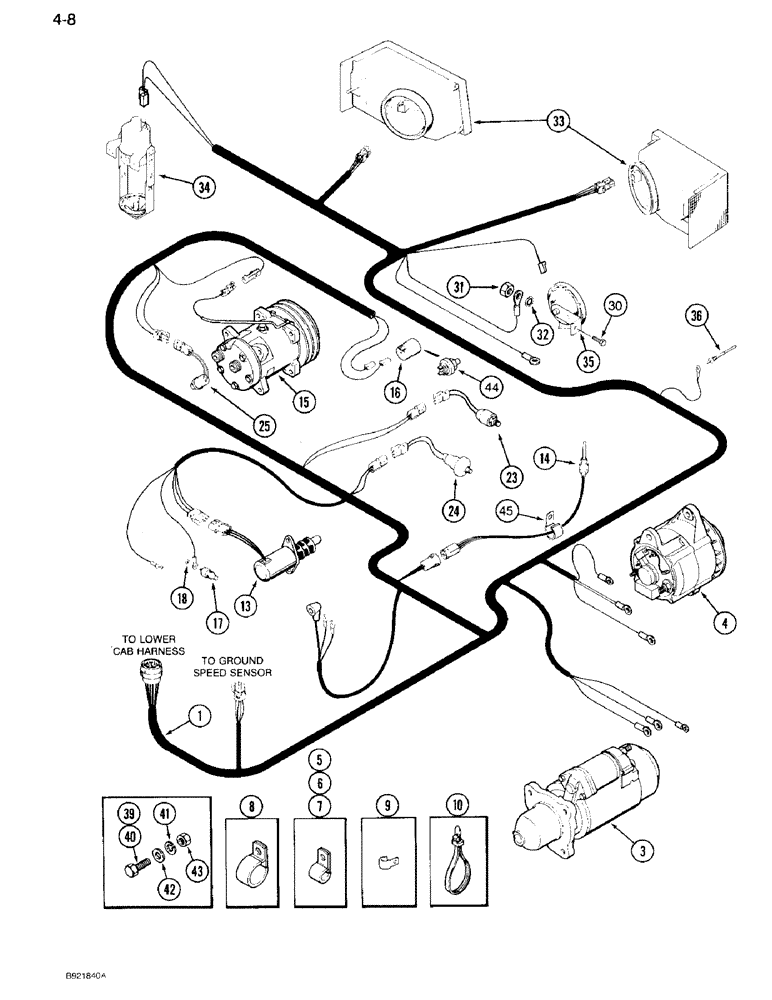

Запчасти Case IH 7120 (4-08) - ENGINE AND FRONT COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

1983257C1

HARNESS

- engine and front component, if equipped, Replaces: 92018C1 and 92032C2, See Figure 4-4 and 4-6

1шт.

3

REF

INSTRUCTION

STARTER ASSEMBLY - engine, See Figures 4-40 and 4-44

1шт.

4

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figure 4-48

1шт.

5

49838

CLAMP

- harness, closed, 12.7 mm ID

1шт.

6

49853

TOOL

- harness

1шт.

7

49854

CLAMP

- harness, closed, 12.7 mm ID

4шт.

8

R14668

CLAMP

- harness, closed, 25.4 mm ID

1шт.

9

R54362

CLAMP,J, 9/16" Insul, 5/16" Bolt

- harness, open, 12.7 mm ID

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

13

REF

INSTRUCTION

SOLENOID - fuel shutoff, See Figure 3-6, 3-7A, 3-8 or 3-9A

1шт.

14

1987588C1

SENSOR

- exhaust gas temperature, Replaces: A186062

1шт.

15

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning, See Figure 9-150

1шт.

16

A172784

RESTRICTION SWITCH

SWITCH - air cleaner restriction, if used

1шт.

17

A176566

TRANSMITTER

SENDER - coolant temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex keps, No. 10-32

1шт.

23

1546461C1

SWITCH

- engine oil pressure, 10 psi, Replaces: 91952C3

1шт.

24

91953C1

SWITCH, PRESSURE

SWITCH - oil pressure, 22 psi, if equipped

1шт.

25

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

32

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

1шт.

33

REF

INSTRUCTION

LAMP ASSEMBLY - head, See Figure 4-50

2шт.

34

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start, See Figure 2-14

1шт.

35

411949C91

HORN

- sounding, tractor

1шт.

36

A145513

SENSOR

- coolant level

1шт.

39

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

40

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

1шт.

41

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

43

825-1108

NUT,Hex, M8, Cl 8

1шт.

44

1983233C1

RESTRICTION SWITCH

SWITCH - air cleaner restriction, if used

1шт.

45

362667R1

CLIP

CLAMP - exhaust gas temperature sensor to turbo elbow bracket

1шт.
