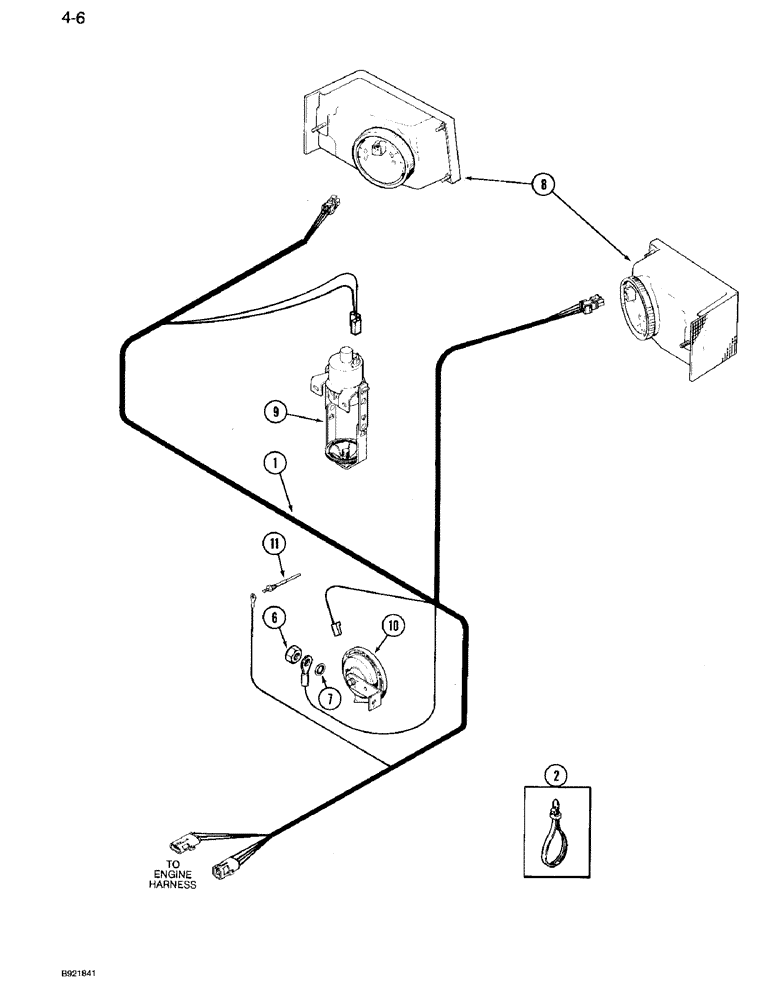

Запчасти Case IH 7120 (4-06) - FRONT HARNESS (04) - ELECTRICAL SYSTEMS

1

92032C2

HARNESS

- front component, if equipped, also See Figure 4-8

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, nylon, 15 inch

3шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

7

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

1шт.

8

REF

INSTRUCTION

LAMP ASSEMBLY - head, See Figure 4-50

2шт.

9

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start, See Figure 2-14

1шт.

10

411949C91

HORN

- tractor

1шт.

11

A145513

SENSOR

- level, coolant

1шт.
