Запчасти Case IH 7120 (3-17A) - FUEL LINES, MODELS WITH ONE FUEL TANK (03) - FUEL SYSTEM

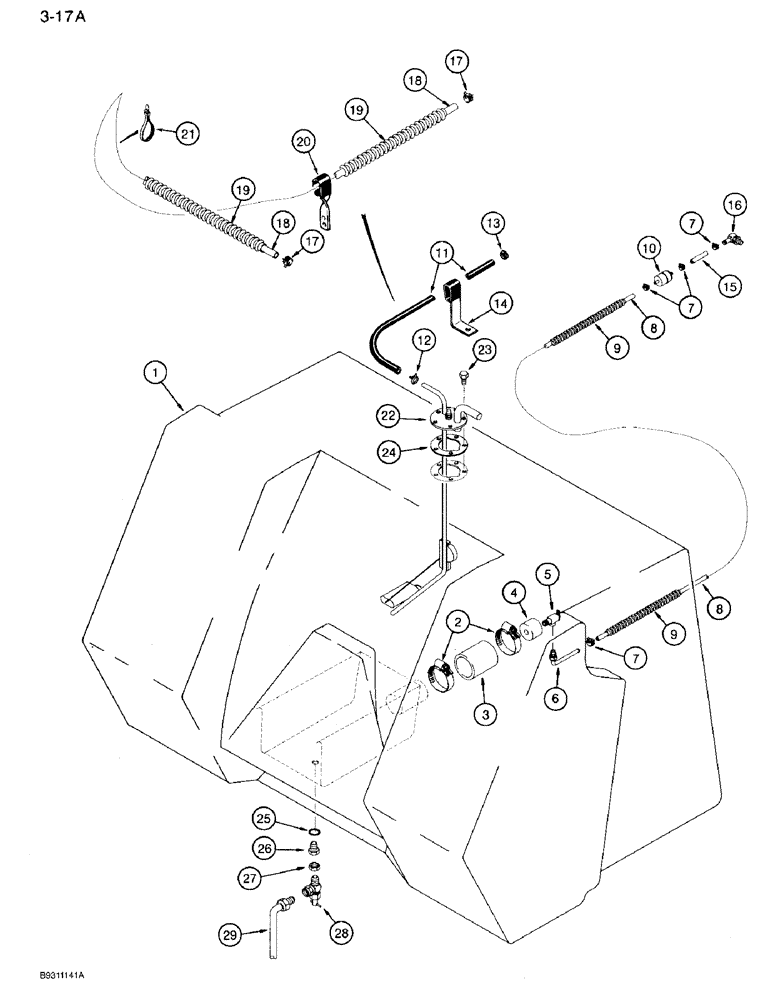

Схема запчастей Case IH 7120 - (3-17A) - FUEL LINES, MODELS WITH ONE FUEL TANK (03) - FUEL SYSTEM
1
23
18
3
7
19
27
17
8
9
13
2
26
28
19
9
25
7
18
6
4
29
8
7
20
15
17
14
10
21
16
11
5
22
24
12

Артикул

Название

Примечание

Количество

1

96903C3

RESERVOIR

TANK ASSEMBLY - fuel, main, see Figure 3-16 for mounting and related parts

1шт.

2

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

3

130345C1

FUEL HOSE

HOSE - fuel tank outlet, 40 x 50 x 60 mm

1шт.

4

130346C1

ADAPTER

- fuel line hose to shut off valve

1шт.

5

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE - fuel shutoff

1шт.

6

1348241C1

FUEL TUBE,0.375 mm OD, 101.6 mm Length

TUBE - fuel line, at tank

1шт.

7

1348264C1

HOSE CLAMP

CLAMP - hose, fuel supply

4шт.

8

1348242C1

FUEL HOSE

HOSE - fuel supply, 9.5 x 16 x 1700 mm

1шт.

9

1348274C1

CONDUIT

GUARD - hose, 16.6 ID x 1575 mm

1шт.

10

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - fuel return, 160 inch, if used, order 74813C2 and, Serial Range: cut-length

1шт.

12

214-101

HOSE CLAMP,#6, 3/8", Spring

CLAMP - hose, spring type, 3/8 inch, if used

1шт.

13

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

if used #4, 0.25/0.62 Type F Worm

1шт.

14

1954473C3

CLAMP

- harness, if used

1шт.

15

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

- Filter to engine 9.52 mm ID x 78.00 mm, SAE 30R7

1шт.

16

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb end x 1/4 inch PT

1шт.

17

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose, if used

2шт.

18

1348240C1

FUEL HOSE

HOSE - fuel return to tank, 8 x 14 x 4310 mm, if used

1шт.

19

1348275C1

LOOM

GUARD - hose, fuel return, if used

1шт.

20

1954474C4

SHIN

CLAMP - fuel line, at left front cab support

1шт.

21

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

22

1987599C1

FUEL GAUGE

SENSOR - fuel level, equipped with main tank, without auxiliary tank, Replaces: 92073C1 and 1983369C1, also order Ref. 24, 104812C3 gasket

1шт.

23

193-563

SCREW,SEMS, Hex Hd, #10-24 x 3/4", G5

- hex washer head, No. 10-24 x 3/4 inch

5шт.

24

104812C3

GASKET,3.05mm Thk

- fuel level sensor

1шт.

25

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

26

1251790C1

FITTING

ADAPTER - straight, fuel tank drain

1шт.

27

1251791C1

JAM NUT,3/4" - 16 LH Thread

- jam, special

1шт.

28

104465C1

DRAIN VALVE

VALVE - drain, main fuel tank

1шт.

29

104896C1

TUBE,9.52 mm OD, 457.2 mm Length

- fuel tank drain, 457 mm, cut from 74813C2 bulk roll, see below

1шт.

74813C2

TUBE,0.375" OD

- nylon, 3/8 inch O.D. x 50 ft

1шт.
