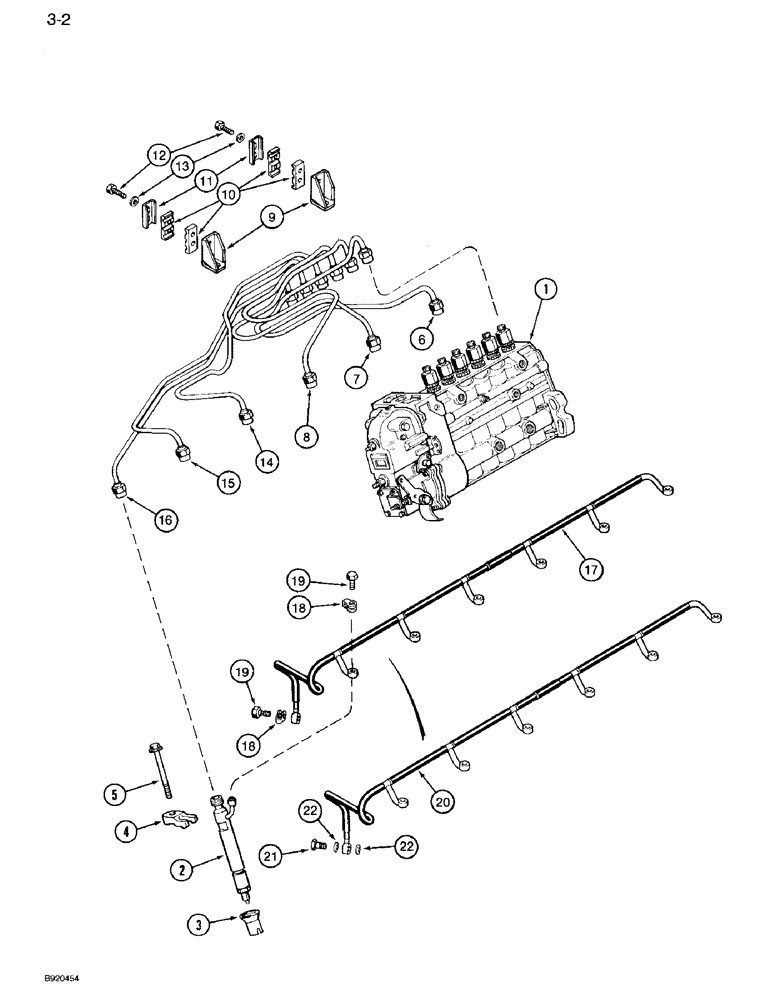

Запчасти Case IH 7120 (3-02) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (03) - FUEL SYSTEM

1

J915683

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, 7110 Tractor only, parts list Figure 3-6, Serial Range: -44827152

1шт.

1

J921092

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, 7110 Tractor only, parts list Figure 3-7A, Start Serial: 44827152

1шт.

1

JR921092

REMAN-ENG OIL PUMP

7110 Tractor only, Start Serial: 44827152

1шт.

1

JC921092

CORE-INJECTION PUMP

Return Number

1шт.

1

J921095

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, 7120 Tractor only, parts list Figure 3-9A, Start Serial: 44827264

1шт.

1

J915684

PUMP

ASSEMBLY - fuel injection, 7120 Tractor only, parts list Figure 3-8, Serial Range: -44827264

1шт.

1

JR915684

REMAN-INJECTION PUMP

7120 Tractor only, Serial Range: -44827264

1шт.

1

JC915684

CORE-INJECTION PUMP

Return Part Number Injection Pump

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figure 3-10

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 3 cylinder

1шт.

9

J917776

BRACE

- tube, Replaces: J906584

2шт.

10

J917747

CLAMP

- tube, Replaces: J914339

4шт.

11

J904519

SUPPORT

BRACE - tube

2шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 Hex Hd, M5 x .8 x 20, w/LW

4шт.

13

J903723

WASHER

- flat, special

4шт.

14

J910521

FUEL TUBE

TUBE - fuel, No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 6 cylinder

1шт.

17

J915695

MANIFOLD

- fuel drain, no longer available, order ref. 20 - 22, manifold, check valve, and washers on this figure, and ref. 20, J918191 washers and ref. 21A, J916361 banjo bolt on Figure 3-4, Serial Range: -44713107

1шт.

18

J903380

SEAL

- connector, 6 used with ref. 20, J920595 manifold, 7 used with ref. 17, J915695 manifold

6-7шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , 6 used with Ref 20, J920595 manifold, 7 used with Ref 17, J915695 manifold M6 x 1 x 14.3

7шт.

20

J920595

TUBE ASSY.

MANIFOLD - fuel drain, Start Serial: 44713107

1шт.

21

J916360

VALVE

- check

1шт.

22

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- banjo fitting

2шт.

J914094

LEVER

hangs down under the pump

1шт.

3078528R1

THRUST WASHER

behind the lever J914094

1шт.
