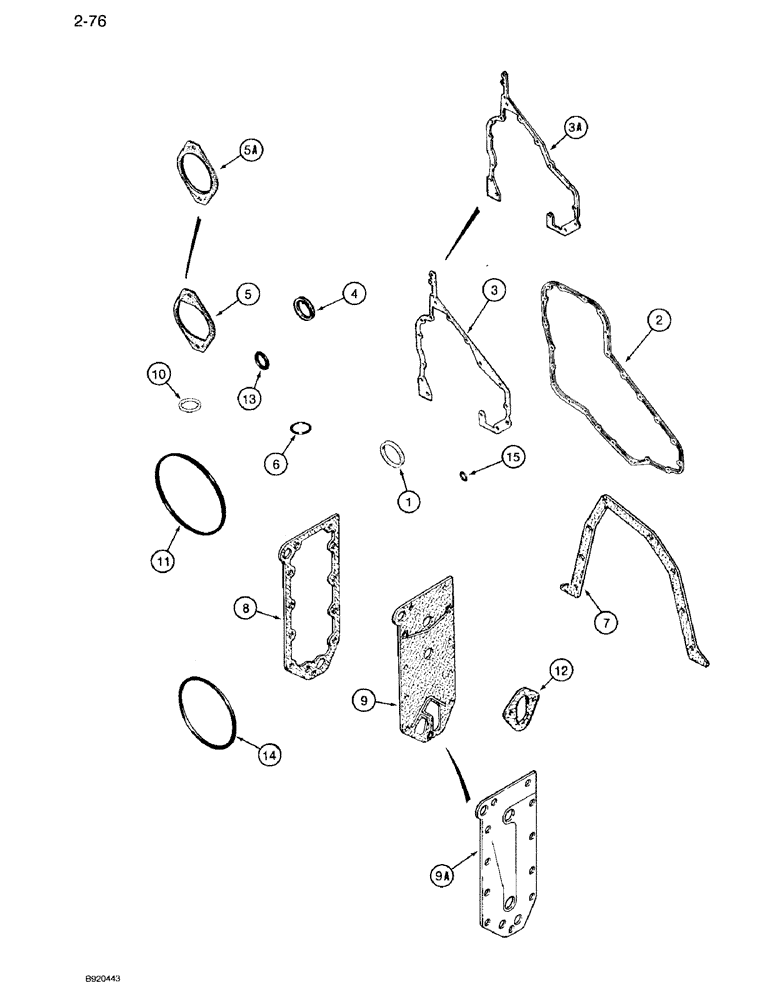

Запчасти Case IH 7120 (2-76[A]) - CYLINDER BLOCK GASKET KITS, 6T-830 ENGINE, ENGINE SERIAL NUMBER 44500128 AND AFTER (02) - ENGINE

A77726

KIT

- gasket, cylinder block, Includes: Ref. 1 - 15

1шт.

For complete engine overhaul order (1) valve grind kit, Figure 2-74, (1) cylinder block kit, (1) oil pan kit, Figure 2-42, front and rear crankshaft seal kit, Figure 2-66, and required cylinder head gasket, Figure 2-44.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J917779

GASKET,0.98mm Thk

- front gear cover

1шт.

2a

J917780

GASKET,0.98mm Thk

GASKET - cover, gear, not used in this application, not shown

1шт.

3a

J281721

GASKET

- housing, gear

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

5a

J919601

GASKET

- cover, plate

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump

1шт.

7

J914301

GASKET

- rear retainer, crankshaft

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core

1шт.

9a

J918332

GASKET

- filter head

1шт.

10

J901798

SEALING WASHER

WASHER - sealing, not used in this application

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, not used in this application

1шт.

12

J914304

GASKET

- mounting, fuel transfer pump

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application -212, 70 Duro, .859" ID x .139" Thk

1шт.

14

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston

6шт.

15

J913994

O-RING

- sealing, timing pin

1шт.
