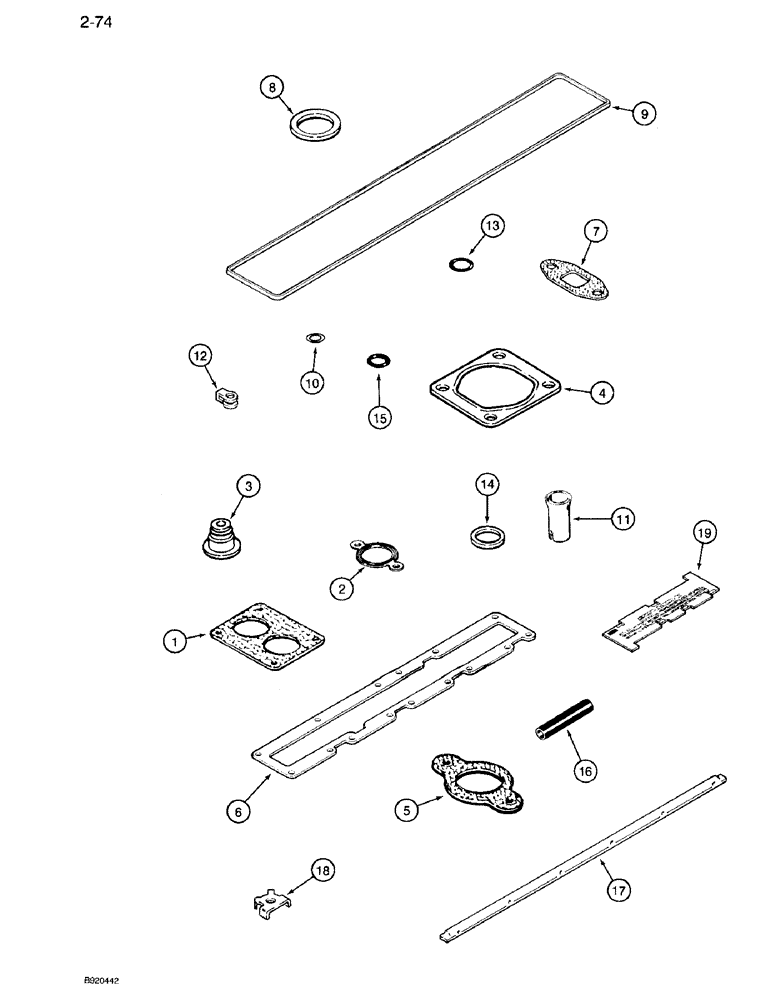

Запчасти Case IH 7120 (2-74) - VALVE GRIND GASKET KITS, 6T-830 ENGINE (02) - ENGINE

A77794

GASKET KIT

KIT - gasket, valve grind, Replaces: A77678, Includes: Ref. 1 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, thermostat housing

1шт.

3

J915707

SEAL

- intake and exhaust valve stem

12шт.

4

J911941

GASKET

- turbocharger mounting

1шт.

5

J921787

GASKET

- manifold, exhaust, Replaces: J911942

6шт.

6

J914311

MANIFOLD GASKET

- cover, intake manifold

1шт.

7

J914388

GASKET

- turbocharger drain tube

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap to valve cover

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector seal

6шт.

12

J903380

SEAL

- connector, fuel injection nozzle

7шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing, breather tube

1шт.

14

J906659

SEAL

GASKET - injector nozzle

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Valve Cover Ebow 19.05 mm ID x 51.00 mm

1шт.

17

J919677

TUBE

- oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

PLATE - locking, bolt, exhaust manifold

12шт.

19

J823921

GAUGE

- head bolt, cylinder head

1шт.
