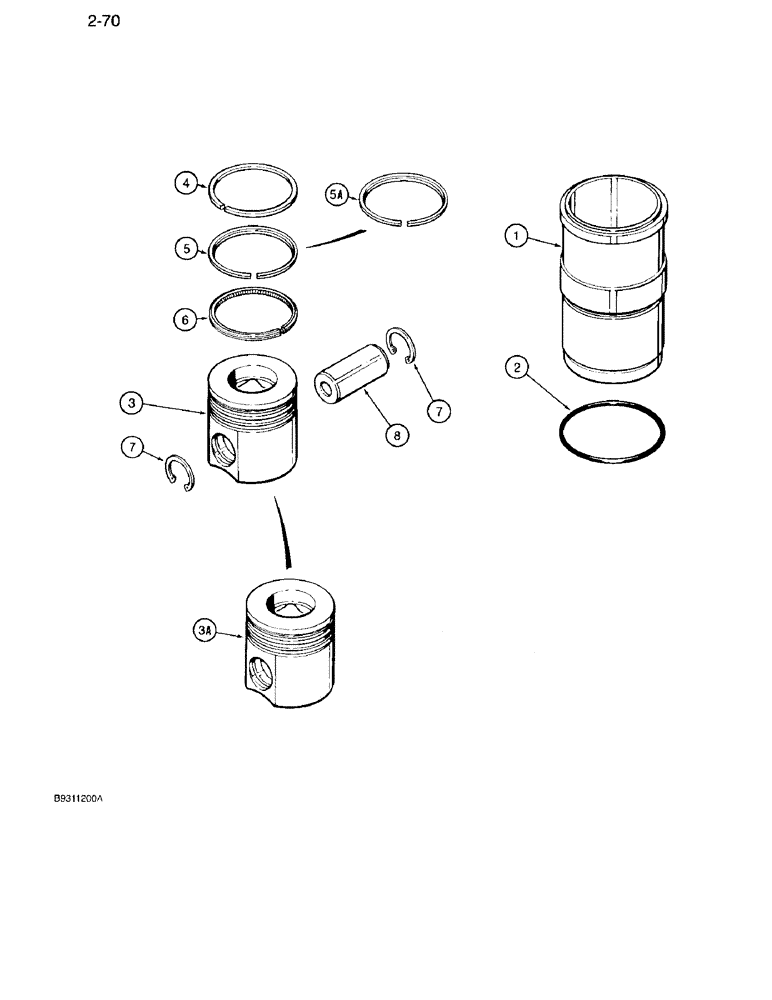

Запчасти Case IH 7120 (2-70) - PISTONS, 6T-830 ENGINE (02) - ENGINE

A77598

CYLINDER

KIT - piston and sleeve, includes piston stamped 8749, no longer available, order A77747, shown below, Includes: Ref. 1 - 8

6шт.

Prior to Engine S/N 44536857

1шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

- piston, standard, includes piston stamped 8749, no longer available, order A77771, shown below, Includes: Ref. 3 -6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8749, Includes: Ref. 4, 5, and 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901044 1.75", Int, #175

2шт.

Prior to Engine S/N 44536857

1шт.

8

J901597

PIN

- piston

1шт.

A77747

PACKAGE

KIT - piston and sleeve, includes piston stamped 9928, Includes: Ref. 1 - 8

6шт.

Engine S/N 44536857 through 44706125

1шт.

A77772

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564 or 3163, Includes: Ref. 1 - 8

6шт.

Includes piston, sleeves and rings. A77771 includes piston and rings only, same piston in both.

1шт.

Engine S/N 44536857 through 44706125

1шт.

Piston Pin J901597 Ref. 8 is NOT included in kit P/N A77772

1шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

Engine S/N 44536857 through 44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

Engine S/N 44536857 through 44706125

1шт.

A77745

PACKAGE

KIT - piston, standard, includes piston stamped 9928, no longer available, order A77771, Includes: Ref. 3A - 6

1шт.

Engine S/N 44536857 through 44706125

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, includes piston stamped 9564 or 3163, Includes: Ref. 3A - 6

1шт.

Engine S/N 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9928

1шт.

Engine S/N 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163

1шт.

Engine S/N 44536857 through 44706125

1шт.

A77744

PACKAGE

KIT - piston ring, used with pistons stamped 9928, 9564, or 3163, Includes: 4, 5A, and 6

1шт.

Engine S/N 44536857 through 44706125

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

Engine S/N 44536857 through 44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901044 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.
