Запчасти Case IH 7120 (2-66) - CRANKSHAFT, 6T-830 ENGINE (02) - ENGINE

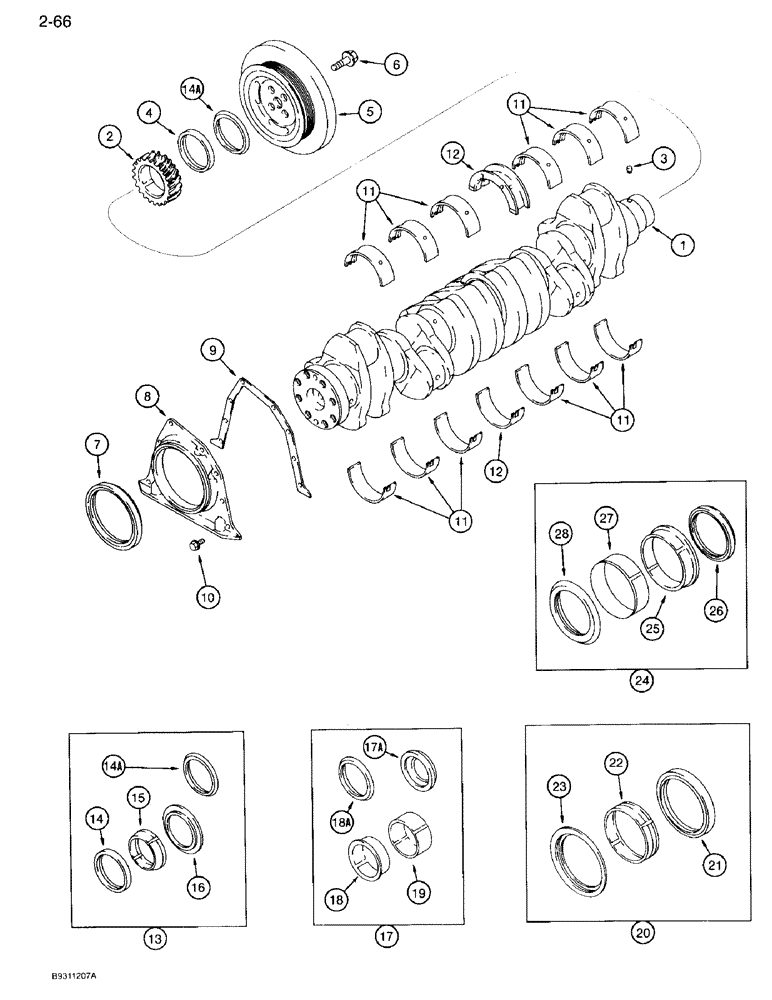

Схема запчастей Case IH 7120 - (2-66) - CRANKSHAFT, 6T-830 ENGINE (02) - ENGINE
17a
20
10
26
16
12
14a
11
12
22
18a
2
13
14
18
25
11
19
24
15
14a
11
28
27
7
6
23
1
3
5
9
11
21
17
4
8

Артикул

Название

Примечание

Количество

1

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces: JR904363

1шт.

1

JC917443

CORE-CRANKSHAFT

RETURN NUMBER use this part number to return crankshaft for credit when using a remanufactured assembly, Replaces: JC904363

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY engine, new, Replaces: J904363, Includes: Ref. 2 and 3

1шт.

2

J918380

GEAR

crankshaft, Replaces: J907645

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, front, order ref. 13, A77790 kit

1шт.

5

J925568

DAMPER,246mm OD

PULLEY damper, vibration, Replaces: J914456

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

SCREW hex flange, special, M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL oil, rear, order ref. 20, A77809 kit

1шт.

8

J921042

REAR COVER

RETAINER seal, rear, Replaces: J907535

1шт.

O-ring to retainer, see Figure 2-76 ref 11

1шт.

9

J914301

GASKET

rear retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

A77711

BEARING LINER

BEARING main, upper and lower, standard, Replaces: A77569 kit

6шт.

11

A77712

BEARING LINER

BEARING main, upper and lower, 0.25 mm undersize, Replaces: A77570 kit

6шт.

11

A77713

BEARING LINER

BEARING main, upper and lower, 0.50 mm undersize, Replaces: A77571 kit

6шт.

11

A77714

BEARING LINER

BEARING main, upper and lower, 0.75 mm undersize, Replaces: A77572 kit

6шт.

11

A77715

BEARING LINER

BEARING main, upper and lower, 1.00 mm undersize, Replaces: A77573 kit

6шт.

12

A77706

BEARING LINER

BEARING main thrust, upper and lower, standard, Replaces: A77574 kit

1шт.

12

A77707

SET

BEARING main thrust, upper and lower, 0.25 mm undersize, Replaces: A77575 kit

1шт.

12

A77708

BEARING LINER

BEARING main thrust, upper and lower, 0.50 mm undersize, Replaces: A77576 kit

1шт.

12

A77709

BEARING LINER

BEARING main thrust, upper and lower, 0.75 mm undersize, Replaces: A77577 kit

1шт.

12

A77710

BEARING LINER

BEARING main thrust, upper and lower, 1.00 mm undersize, Replaces: A77578 kit

1шт.

13

A77790

SEAL KIT

KIT oil seal, crankshaft front, Replaces: J908139, Includes: Ref. 14, 14A, 15, and 16

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

14a

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

crank seal, dust

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

A77808

SERVICE KIT

KIT wear sleeve, crankshaft front, Replaces: J908277 and A77791, Includes: Ref. 17A, 18, 18A, and 19

1шт.

17a

NSS

NOT SOLD SEPARAT

SEAL oil, front crank

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

18a

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

crank seal, dust, Replaces: J918113

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

20

A77809

GASKET KIT

KIT oil seal, rear, Replaces: J909410, Includes: Ref. 21, 22, and 23; Tool No Longer Included in Kit, Available from OTC

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

24

A77810

SERVICE KIT

KIT wear sleeve, crankshaft rear, Replaces: J906081, Includes: Ref. 25, 24, 27, and 28; No Longer Includes Tools; Tools Available from OTC

1шт.

Does not contain the service tool as illustrated. CAS2355 is the service tool that can be ordered from OTC.

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

Выбрано товаров: 43
