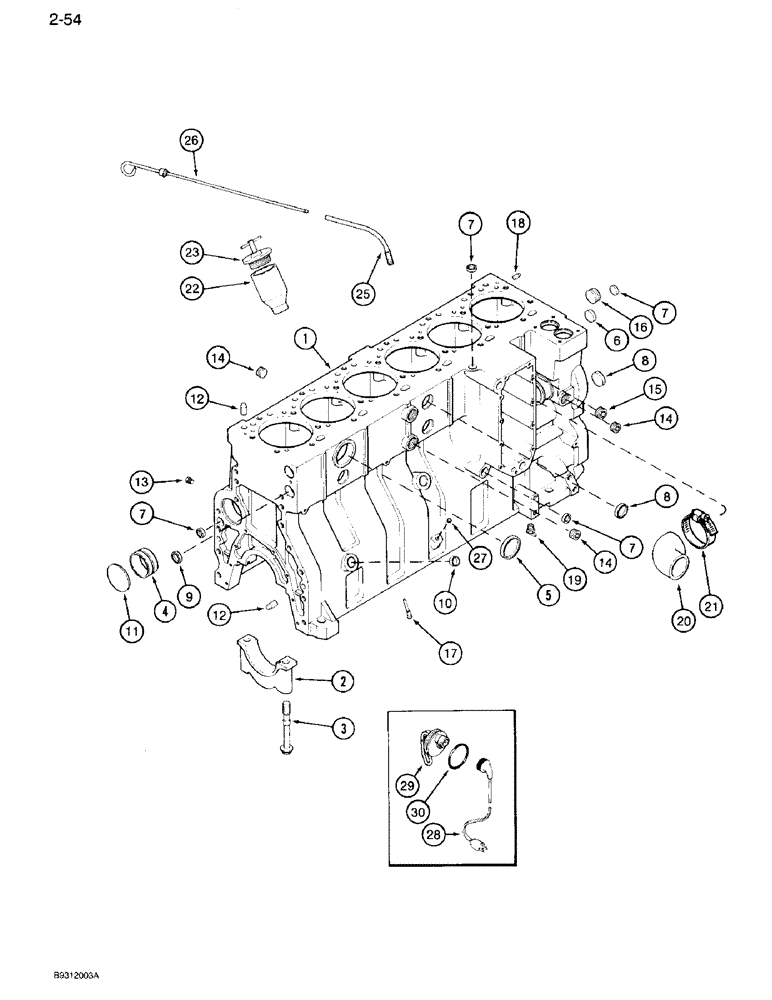

Запчасти Case IH 7120 (2-54) - CYLINDER BLOCK, 6T-830 ENGINE, BLOCK WITH SIX PISTON COOLING NOZZLES, PRIOR TO ENGINE S/N 44487830 (02) - ENGINE

A174180

ENGINE

ASSEMBLY, 7110 Tractor

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses item 1 sleeve, and item 3 piston, shown on Figure 2-70, for service order 1989098C2 basic engine shown on Figure 2-62

1шт.

A174181

ENGINE ASSEMBLY

7120 Tractor

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses item 1 sleeve, and item 3 piston, shown on Figure 2-70, for service order 1989098C2 basic engine shown on Figure 2-62

1шт.

A174181 subs to 1989006C3 which is used on before and after serial numbers.

1шт.

87448699

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Number, Short Block, For N.A. Only

1шт.

JR912531

ENGINE, EXCHANGE

BLOCK ASSEMBLY short engine, remanufactured, North America only

1шт.

Component parts shown on this page do not apply to the remanufactured assembly, no longer available, for service order (1) JR921843 remanufactured short block, shown on Figure 2-62, (1) JR921067 remanufactured oil pump and J918532 pressure regulator plunger shown on Figure 2-42, (14) J917728 bolts and (12) J917729 bolts shown on Figure 2-48

1шт.

JC912531

CORE-SHORT ENGINE

RETURN NUMBER engine short block, use this part number to return block core for credit when using a remanufactured assembly

1шт.

J912531

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, new, Includes: Ref. 1 - 30

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY cylinder, stripped, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER stripped block assembly, use this part number to return stripped block core for credit when using a remanufactured assembly

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY cylinder, stripped, Includes: Ref. 2-19

1шт.

No longer available, for service order (1) J920036 stripped block assembly and A77716 kit shown on Figure 2-60, (1) J921067 oil pump and J918532 plunger shown on Figure 2-42, (14) J917728 bolts and (12) J917729 bolts shown on Figure 2-48

1шт.

J909415

KIT

block hardware, no longer available, order component parts separately, Includes: Ref. 9 - 19

1шт.

2

J905397

CAP

bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

hex flange, main bearing, Serial Range: cap-block

14шт.

4

J901685

BUSHING

camshaft, See Figure 2-52, ref. 6

7шт.

5

A77782

PLUG

expansion, 58 mm O.D., Replaces: J900965

1шт.

6

A77586

PLUG

expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

expansion, 35 mm O.D.

3шт.

9

A77530

PLUG

expansion, 30 mm O.D.

2шт.

10

A77439

PLUG

expansion, 22 mm O.D.

1шт.

11

J901969

PLUG

expansion, 69 mm O.D.

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

dowel

4шт.

13

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

6шт.

14

A77429

PLUG

hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

hex socket, 1 inch PT

1шт.

17

J905928

NOZZLE INJECTION

NOZZLE cooling, piston

6шт.

18

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE 1/4 inch PT

1шт.

20

J920762

ELBOW

HOSE elbow, water, Replaces: J909389

1шт.

21

J918521

HOSE CLAMP,59mm - 83mm

CLAMP hose, coolant, 1-13/16 - 2-3/4, Replaces: 214-261

1шт.

22

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

filler, oil

1шт.

23

A77424

FILLER CAP

CAP filler

1шт.

25

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

oil dipstick

1шт.

26

J908094

DIPSTICK

oil

1шт.

27

J900955

PLUG

10 mm, left-hand or right-hand dipstick hole, if used

1шт.

A77595

KIT

engine block heater, Includes: Ref. 28 - 30

1шт.

28

J905113

CABLE

heater, 6 feet, engine block

1шт.

29

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, engine block

1шт.

30

J910517

O-RING

seal, engine block heater

1шт.
