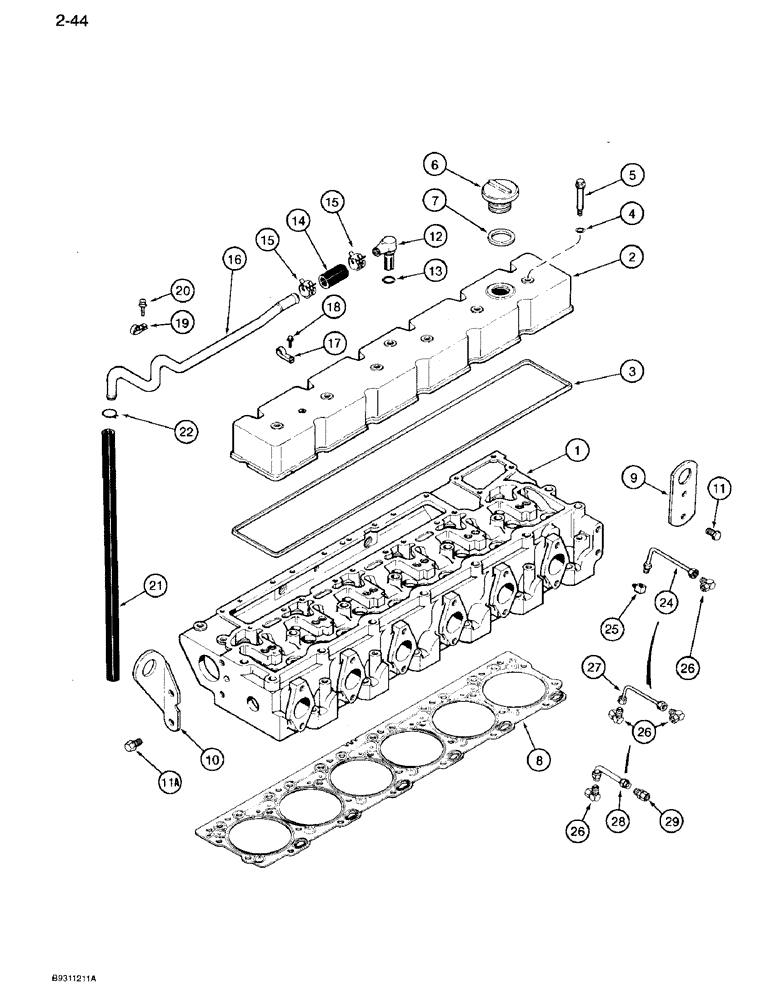

Запчасти Case IH 7120 (2-44) - CYLINDER HEAD COVER, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, See Figure 2-48 for correct assembly and component parts

1шт.

2

J907734

COVER ASSY

COVER valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL cover

1шт.

4

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, sealing, Replaces: J910824

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT hex, special, Replaces: J901838

6шт.

6

J902468

FILLER CAP,Male

CAP filler, oil, or A77424

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING cap sealing

1шт.

8

J921850

GASKET

cylinder head, standard, Replaces: J911342 and J921216

1шт.

8

J921852

GASKET

cylinder head, 0.27 mm thicker, Replaces: J908119 and J914305

1шт.

8

J921853

GASKET

cylinder head, 0.48 mm thicker, Replaces: J908120 and J914306

1шт.

9

J907861

LIFTING EYE

BRACKET lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

11a

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

12

J920497

ELBOW

CONNECTOR vent, Replaces: J906794

1шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing

1шт.

14

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector, Replaces J915040 19.05 mm ID x 51.00 mm

1шт.

15

J918163

CLIP

CLAMP spring type

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube retaining M15.88, M9.52 Bolt Hole

1шт.

18

J912072

SELF-TAP SCREW

SCREW self tapping, special, 8 x 15 mm

1шт.

19

A77538

CLIP

P style, tube retaining

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

21

J918616

TUBE,680.00 mm

Breather, Tube End, Replaces A77717 680.00 mm

1шт.

22

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP hose, spring type, 1-1/8 inch

1шт.

24

J912802

TUBE,6.35 mm OD x 127.9 mm L

vent, air, no longer available, order (1) J918167 tube, Ref. 27 and (2) 222-42 elbow, ref. 26

1шт.

25

A77535

ELBOW UNION

ELBOW, 90 degree, adapter, used with J912802 tube, item 24

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

90 degree, compression, 1/4 tube O.D. x 1/8 inch PT

1-2шт.

27

J918167

TUBE,6.35 mm OD x 117.5 mm L

vent, air, Serial Range: -44808257

1шт.

Use on units prior to S/N 44808257.

1шт.

28

J924589

TUBE,6.35 mm OD x 112.6 mm L

vent, air

1шт.

Engine S/N 44808257 & After

1шт.

29

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER compression, 1/4 tube O.D. x 1/8 inch PT, tube to thermostat housing

1шт.

Engine S/N 44808257 & After

1шт.
