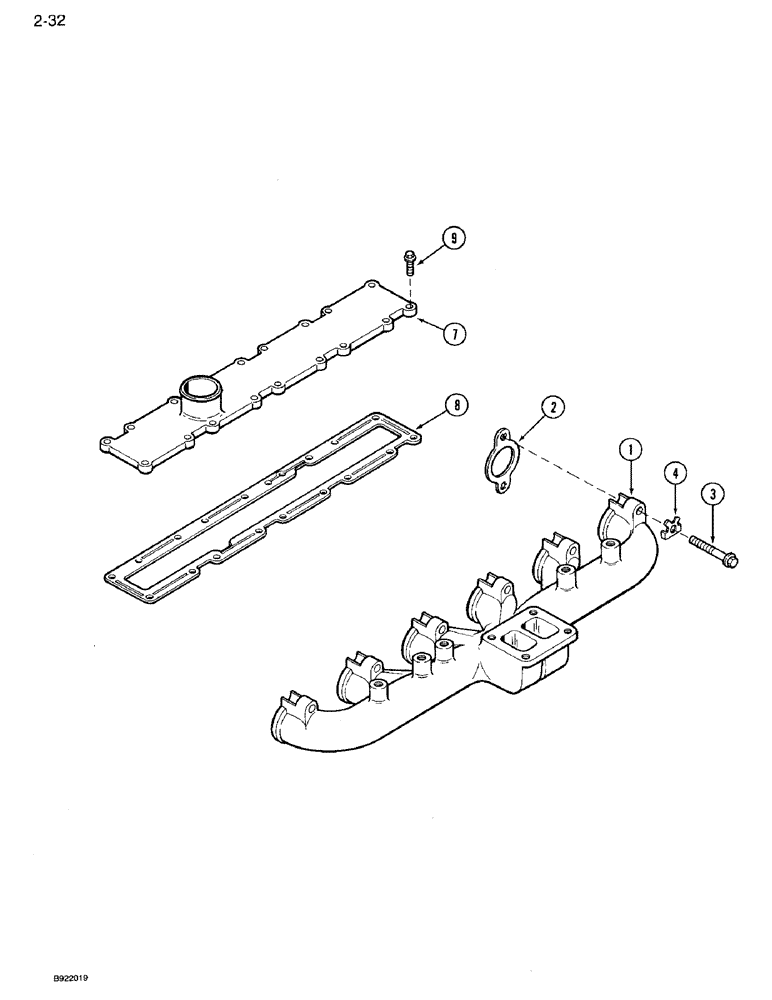

Запчасти Case IH 7120 (2-32) - MANIFOLDS, 6T-830 ENGINE (02) - ENGINE

1

J906720

MANIFOLD

exhaust

1шт.

2

J921787

GASKET

manifold, exhaust, Replaces: J911942

6шт.

3

813-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.5 x 70 mm, exhaust

12шт.

4

J914708

LOCKING PLATE

PLATE locking, manifold bolt, exhaust

12шт.

A77611

MANIFOLD

KIT intake manifold, Includes: Ref. 7 and 8

1шт.

7

J906737

COVER ASSY

COVER manifold, intake

1шт.

8

J914311

MANIFOLD GASKET

intake manifold cover, Replaces: J910779

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold Hex Flg Hd, M8 x 1.25 x 25

18шт.
