Запчасти Case IH 7120 (2-30) - FRONT GEAR COVER, 6T-830 ENGINE (02) - ENGINE

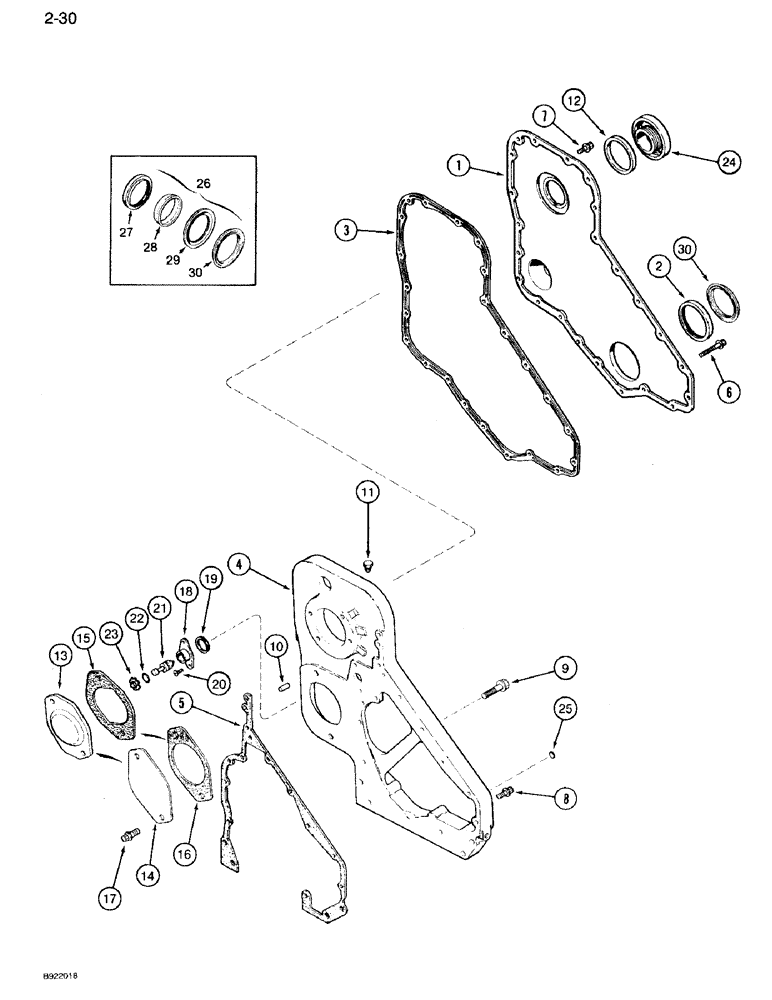

Схема запчастей Case IH 7120 - (2-30) - FRONT GEAR COVER, 6T-830 ENGINE (02) - ENGINE
12
26
13
18
14
22
10
15
24
4
20
3
5
30
7
6
11
19
9
27
23
28
2
30
21
17
16
29
25
1
8

Артикул

Название

Примечание

Количество

1

J924422

COVER ASSY

COVER gear, front, Replaces: J916192

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order ref. 26, A77790 Seal Kit

1шт.

3

J917779

GASKET,0.98mm Thk

front cover, Replaces: J913429

1шт.

4

J917316

MOTOR HOUSING

HOUSING timing gear, Replaces: J915073

1шт.

5

J281721

GASKET

gear housing, Replaces: J914303

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 50 mm

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm-1.25 x 16 mm

17шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

5шт.

9

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

10

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm

2шт.

11

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

3шт.

12

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

13

J909918

PLATE

accessory drive cover, no longer available, for service order ref. 14, J914868

1шт.

14

J914868

COVER

PLATE accessory drive cover

1шт.

15

J913288

SEAL

GASKET cover plate, no longer available, for service order ref. 16, J919601

1шт.

16

J919601

GASKET

cover plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

18

J919683

HOUSING

timing pin, Replaces: J905933

1шт.

19

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing, Replaces: J914092

1шт.

20

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

21

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

22

J913994

O-RING

sealing, timing pin

1шт.

23

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

24

J903463

PLUG,M63 x 5

front access

1шт.

25

A77552

PLUG

expansion, 29/64 inch diameter

1шт.

26

A77790

SEAL KIT

KIT seal, crankshaft front, Includes: Ref. 27, 28, 29 and 30

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

29

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

30

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, crank seal

1шт.

Выбрано товаров: 30
