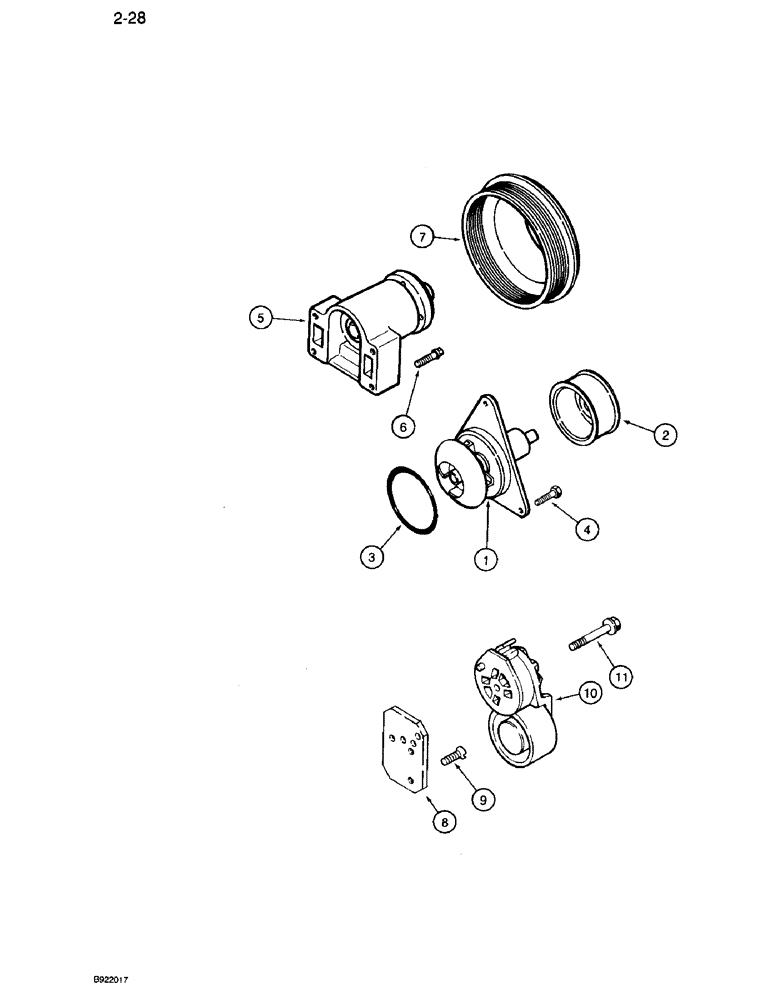

Запчасти Case IH 7120 (2-28) - WATER PUMP SYSTEM, 6T-830 ENGINE (02) - ENGINE

AR77704

PUMP, WATER

PUMP water, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces: AR77579 remanufactured pump.

1шт.

J800976R

REMAN-WATER PUMP

7110, 7120, Both 6T-830 ENGINE (10/87-12/93), Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER use to return pump core for credit when using a remanufactured assembly, Replaces: AC77579 return number, the water pump remanufacture program is not available at this time, order: A77704 water pump.

1шт.

A77704

PUMP, WATER

KIT water pump, Replaces: A77579, Includes: Ref. 1, 2, and 3

1шт.

J800976R

REMAN-WATER PUMP

7110, 7120, Both 6T-830 ENGINE (10/87-12/93), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water, new

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT fan

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 50 mm

4шт.

7

J914462

PULLEY,163mm OD

fan

1шт.

8

J911473

BRACKET

mounting, tensioner

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm, mounting bracket to cylinder head

2шт.

10

J918944

BELT TENSIONER

TENSIONER belt, replaces J914086

1шт.

When replacing old tensioner J914086 with new J918944, you also need to order new bolt 854-10075.

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

Used with old tensioner J914086.

1шт.

11

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

1шт.

Used with new tensioner J918944.

1шт.
