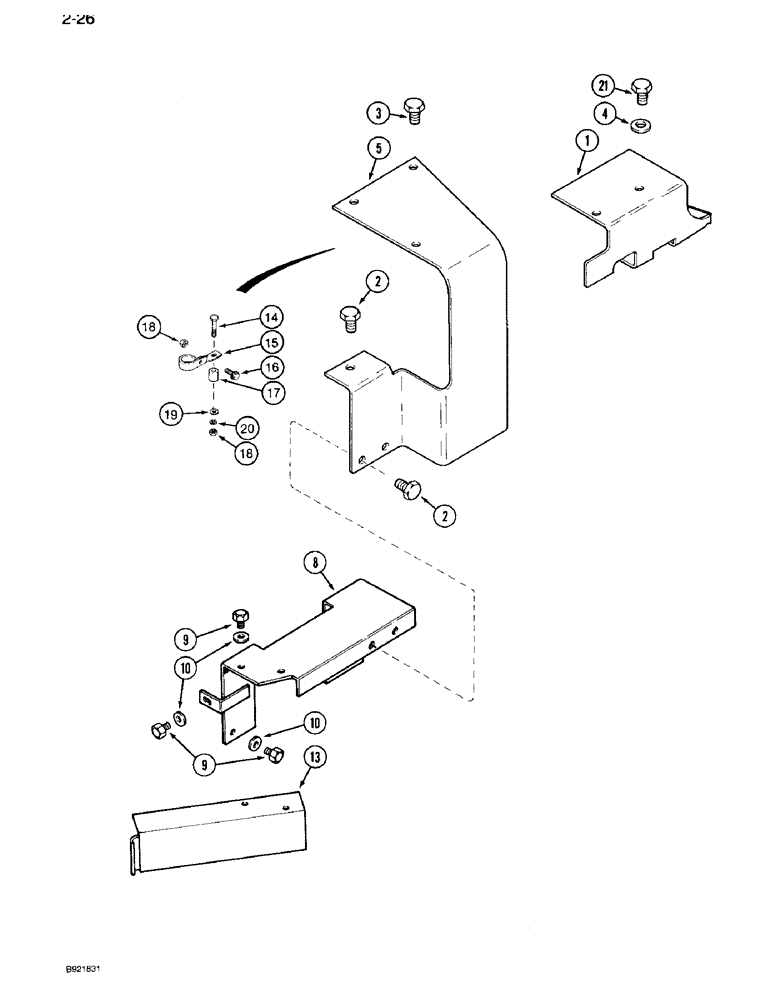

Запчасти Case IH 7120 (2-26) - EXHAUST SYSTEM SHIELDS, P.I.N. JJA0033579 AND AFTER (02) - ENGINE

1

1334628C6

GUARD

SHIELD manifold

1шт.

2

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

3

905-10025

BOLT,Hex Flg, M10 x 25mm

hex, 10 x 25 mm, class 10.9

2шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

5

1340698C1

SHIELD

turbocharger

1шт.

8

1968122C1

SHIELD

starter, front

1шт.

9

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

5шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

5шт.

13

1289443C1

SHIELD

starter, rear

1шт.

14

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

15

1334309C2

COLLAR CLAMP

CLAMP tube, aspirator

1шт.

16

905-10025

BOLT,Hex Flg, M10 x 25mm

hex flange, 10 x 25 mm

1шт.

17

A176570

SPACER

muffler support

1шт.

18

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

20

892-11010

LOCK WASHER,M10

1шт.

21

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.
