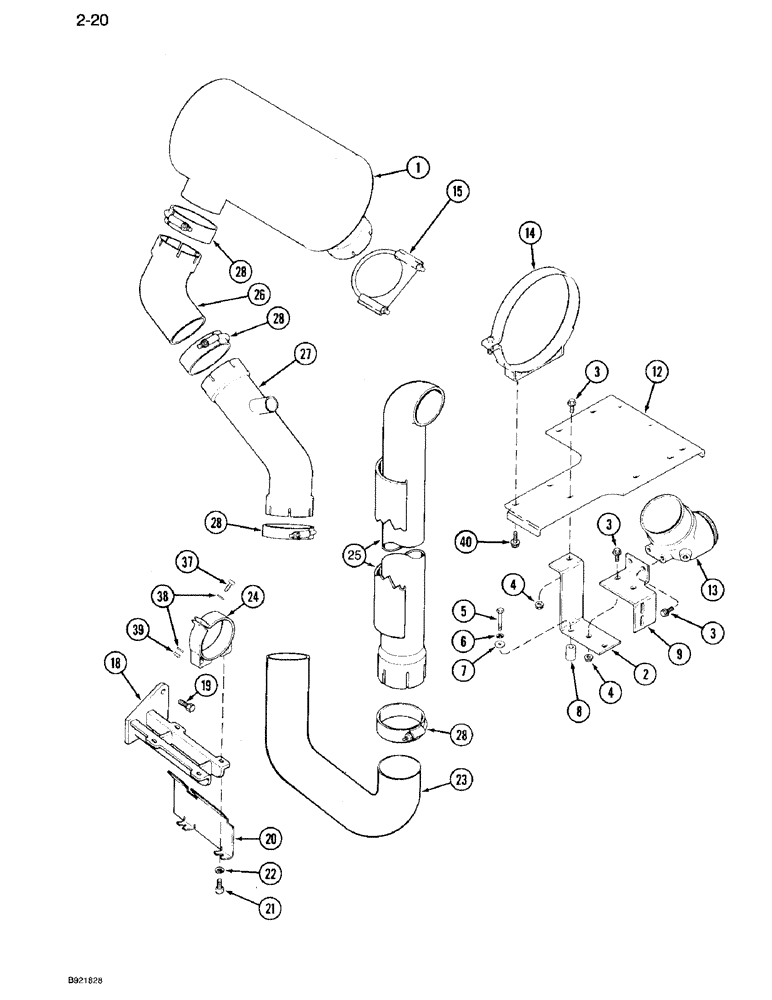

Запчасти Case IH 7120 (2-20) - EXHAUST SYSTEM, P.I.N. JJA0033579 AND AFTER (02) - ENGINE

1

A184157

MUFFLER

exhaust

1шт.

2

1340699C1

SUPPORT

BRACKET muffler support

1шт.

3

905-10025

BOLT,Hex Flg, M10 x 25mm

hex, 10 x 25 mm

5шт.

4

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

3шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

6

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

8

A176570

SPACER

muffler support

1шт.

9

1340700C1

BRACKET

turbo elbow

1шт.

12

1340697C2

SUPPORT

air cleaner

1шт.

13

A184232

ELBOW UNION

ELBOW turbocharger

1шт.

14

A173223

MOUNTING CLIP

CLAMP retaining

1шт.

15

A184592

CLAMP

muffler

1шт.

18

1342060C1

SUPPORT

BRACKET exhaust

1шт.

19

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

3шт.

20

1342143C1

COVER

SHIELD lower exhaust pipe

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 x 25 mm

4шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

1342006C1

PIPE

exhaust, lower

1шт.

24

1342185C2

CLAMP,114.3mm - 130mm

exhaust

2шт.

25

1342150C2

PIPE, EXHAUST SYSTEM

EXTENSION, includes shield, exhaust, Replaces: 1342150C1

1шт.

26

A184564

ELBOW

TUBE exhaust

1шт.

27

A184565

PIPE

TUBE ejector exhaust

1шт.

28

A173381

CLAMP,117.7mm ID

retaining

3шт.

37

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

39

825-1410

NUT,M10, Cl 8

2шт.

40

905-10020

BOLT,Hex Flg, M10 x 20mm

2шт.
