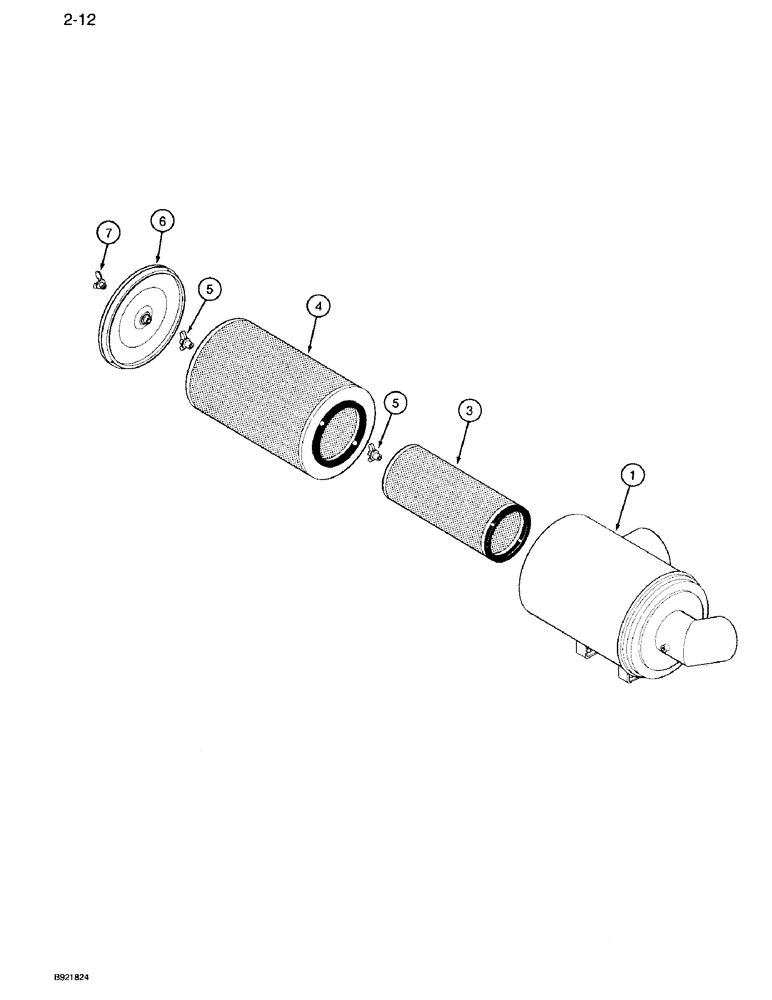

Запчасти Case IH 7120 (2-12) - AIR CLEANER ASSEMBLY (02) - ENGINE

A189385

AIR CLEANER

CLEANER ASSEMBLY air, engine, Replaces: A184647, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner, order A189385

1шт.

3

A171256

AIR FILTER

ELEMENT secondary

1шт.

4

A171255

AIR FILTER

ELEMENT primary

1шт.

5

D78354

WING NUT

NUT wing, element retaining

2шт.

Includes Gasket D37976

1шт.

6

A184650

COVER ASSY

COVER ASSEMBLY access, Includes: Ref. 7 P/N A185635, Ref. 7 P/N 33-1387T1, and Ref. 8

1шт.

7

A185635

WING NUT

wing, cover retaining, used with Donaldson air cleaner

1шт.

7

33-1387T1

WING NUT

NUT wing, cover retaining, used with Nelson air cleaner

1шт.

8

33-1389T1

RING, SNAP

RING snap, used with Nelson air cleaner, not shown

1шт.
