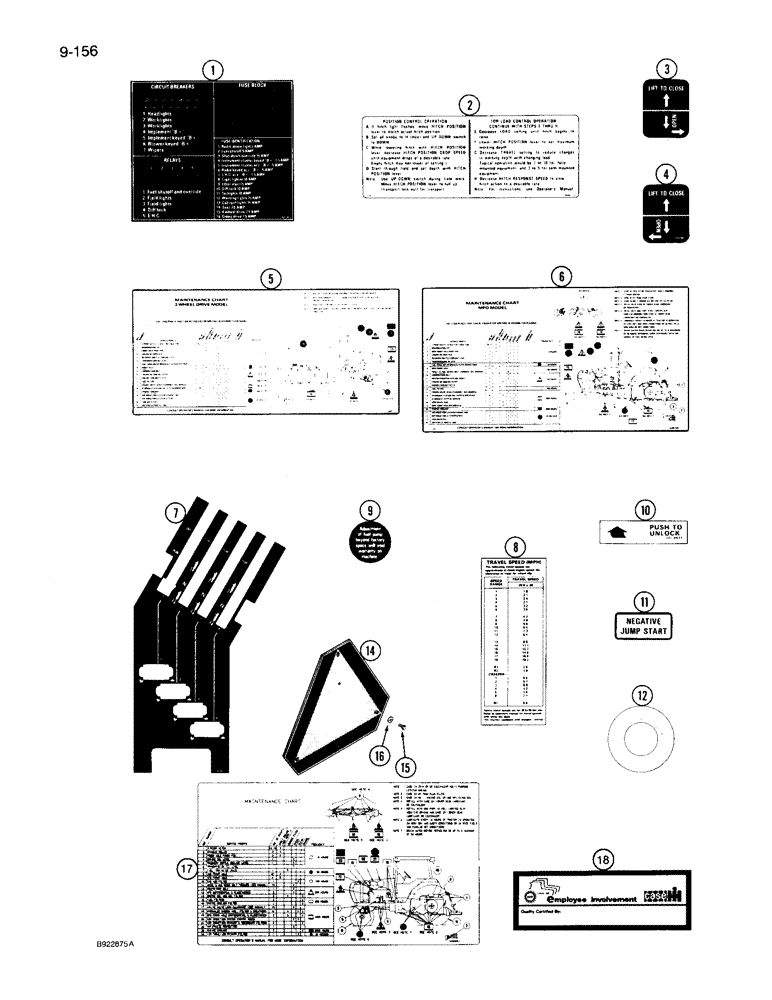

Запчасти Case IH 7120 (9-156) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS

1

1964770C2

DECAL

- fuse panel

1шт.

2

1964671C4

DECAL

- hitch operation, field setup

1шт.

2

1974541C1

DECAL

- hitch operation, field setup, French

1шт.

3

1954287C1

DECAL

- Lift to close, latch, front right window

1шт.

3

1976753C1

DECAL

- Lift to close, latch, front right window, French

1шт.

4

1954288C1

DECAL

- Lift to close, latch, rear window

1шт.

4

1976754C1

DECAL

- Lift to close, latch, rear window, French

1шт.

5

1334668C6

DECAL

- Maintenance Chart, 2-wheel drive, Serial Range: -JJA0027701

1шт.

5

1348349C1

DECAL

- Maintenance Chart, 2-wheel drive, not shown, if used, Start Serial: JJA0027701

1шт.

5

1974532C2

DECAL

- Maintenance Chart, 2-wheel drive, French

1шт.

6

1334677C6

DECAL

- Maintenance Chart, MFD, Serial Range: -JJA0027701

1шт.

6

1348350C1

DECAL

- Maintenance Chart, MFD, if used, Start Serial: JJA0027701

1шт.

6

1974533C2

DECAL

- Maintenance Chart, MFD, French

1шт.

7

1941362C2

DECAL

- auxiliary valve and sector, Replaces: 1941362C1, Serial Range: -JJA0027701

1шт.

7

1999531C1

DECAL

- auxiliary valve and sector, Start Serial: JJA0027701

1шт.

8

1975779C1

DECAL

- travel speed, tractor, if equipped

1шт.

9

A189007

DECAL

- adjustment of fuel pump, warranty, if used

1шт.

10

321-4622

DECAL

- Push to unlock, hood unlatch

1шт.

10

321-5625

DECAL

- Push to unlock, hood unlatch, French

1шт.

11

1968123C2

DECAL

- Negative jump start

1шт.

11

1974534C1

DECAL

- Negative jump start, French

1шт.

12

1955107C1

LARGE PLATE

PLATE - light switch cover

1шт.

14

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

15

98000C1

BOLT,Hex, 5/16" x 11/16"

FASTENER - slow moving vehicle emblem

3шт.

16

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

3шт.

17

134200A1

DECAL

- Maintenance Chart, 2-wheel or 4-wheel drive

1шт.

18

111605A1

DECAL

- Employee Involvement, Quality Assurance

1шт.
