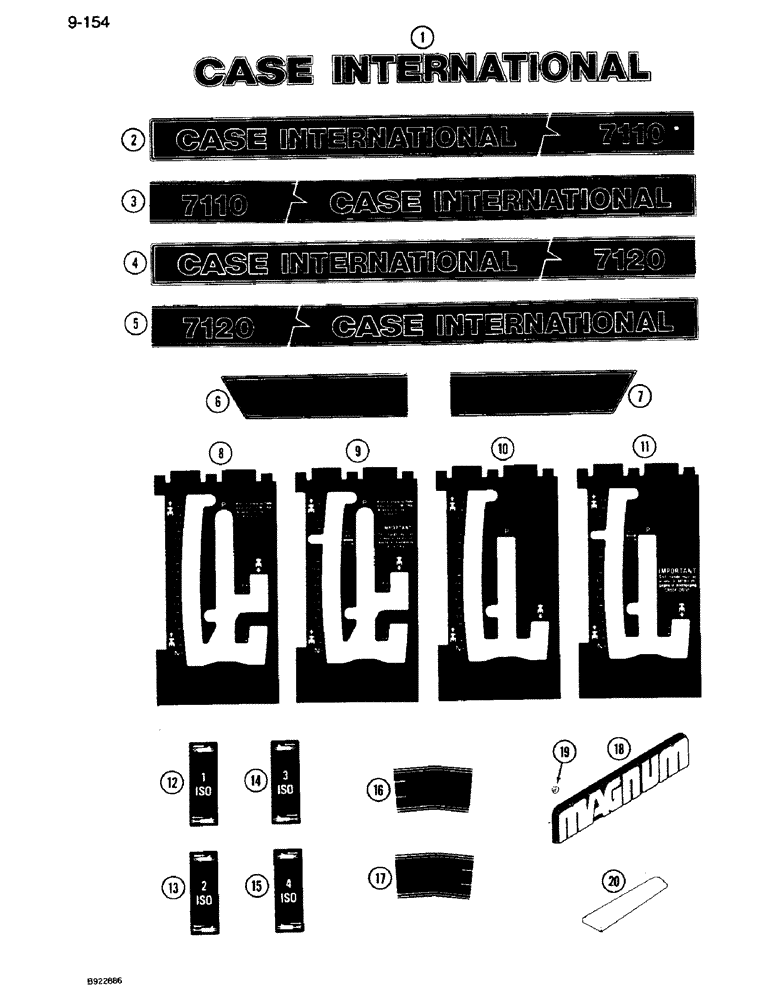

Запчасти Case IH 7120 (9-154) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS

1

1342052C1

DECAL

- Case International

1шт.

2

1342045C1

DECAL

- 7110, Case International, hood, left-hand side

1шт.

3

1342044C1

DECAL

- 7110, Case International, hood, right-hand side

1шт.

4

1342047C1

DECAL

- 7120, Case International, hood, left-hand side

1шт.

5

1342046C1

DECAL

- 7120, Case International, hood, right-hand side

1шт.

6

1334444C1

DECAL

- door, stripe right

1шт.

7

1334445C3

DECAL

- door, stripe left

1шт.

8

1340033C3

DECAL

- shift selector, 4-speed reverse, without creeper, Replaces: 1340033C2

1шт.

9

1340034C3

DECAL

- shift selector, 4-speed reverse, with creeper, Replaces: 1340034C2

1шт.

10

1941361C3

DECAL

- shift selector, 2-speed reverse, without creeper

1шт.

11

1941360C3

DECAL

- shift selector, 2-speed reverse, with creeper

1шт.

12

1334581C2

DECAL

- first coupler

1шт.

13

1334582C2

DECAL

- second coupler

1шт.

14

1334583C3

DECAL

- third coupler

1шт.

15

1334584C3

DECAL

- fourth coupler

1шт.

16

1334457C2

DECAL

- stripe, cab pillar, left

1шт.

17

1334456C2

DECAL

- stripe, cab pillar, right

1шт.

18

1342040C1

SYMBOLS

EMBLEM - Magnum, for Magnum emblem on instrument panel cover, see Figure 9-54

1шт.

P/N A181437 reads Case IH

1шт.

19

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - hex self-threading, 1/4 inch, if equipped

1шт.

20

1968108C2

TRIM

TRIM - hood sight, if equipped

1шт.
