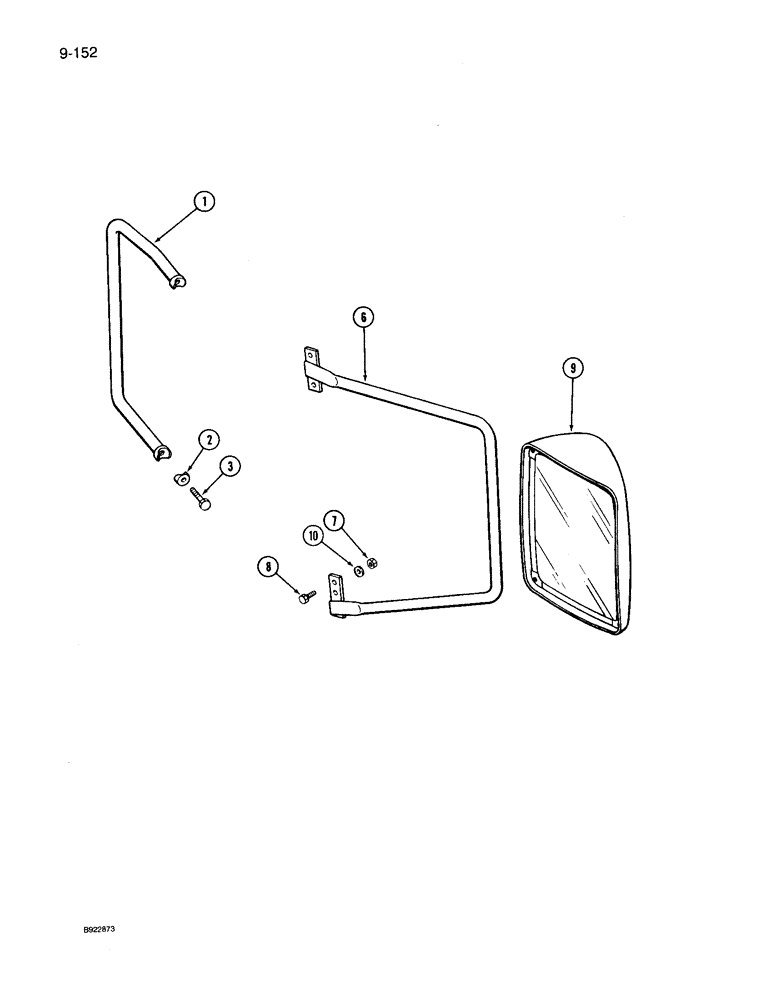

Запчасти Case IH 7120 (9-152) - MIRROR KIT (09) - CHASSIS/ATTACHMENTS

A67886

MIRROR

KIT - rear view, Includes: Ref. 1 - 10

1шт.

1

97158C1

SUPPORT

BRACKET - mirror, left

1шт.

2

97161C1

WASHER

- mirror, left

2шт.

3

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

6

97162C4

SUPPORT

BRACKET - mirror, right

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

4шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

9

97165C1

MIRROR

- tractor

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.
