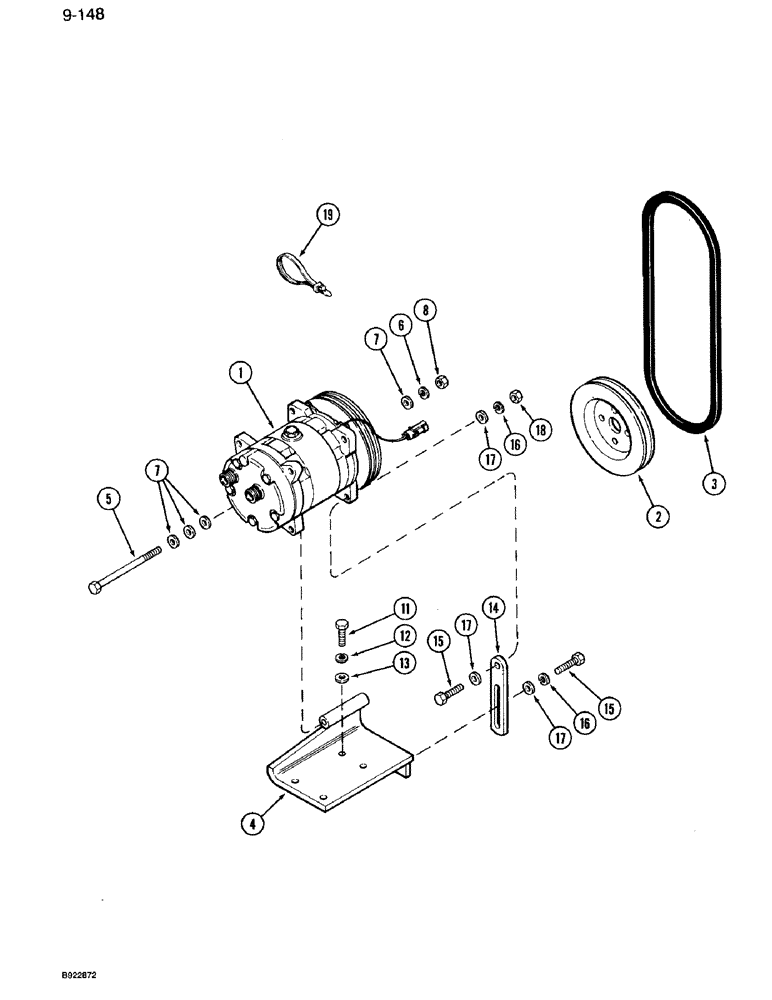

Запчасти Case IH 7120 (9-148) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

97204C1

COMPRESSOR

COMPRESSOR - air conditioning, See Figure 9-150

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

1

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

A189155

PULLEY

PULLEY - drive, compressor, Replaces: 84757C1

1шт.

3

131403C1

V-BELT,0.50" W x 38.50" L

Drive, Compressor

1шт.

4

84715C1

BRACKET

BRACKET - mounting, compressor

1шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

BOLT - hex, 10 x 130 mm

1шт.

6

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

WASHER, M11 x 24 x 2

4шт.

8

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

BOLT, Hex, M10 x 25, 8.8, Full Thd

4шт.

12

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

WASHER, M11 x 24 x 2

4шт.

14

84716C1

SUPPORT

STRAP - adjusting

1шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT - hex, 10 x 35 mm

2шт.

16

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

WASHER, M11 x 24 x 2

3шт.

18

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

2шт.

19

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - nylon 14 in

2шт.
