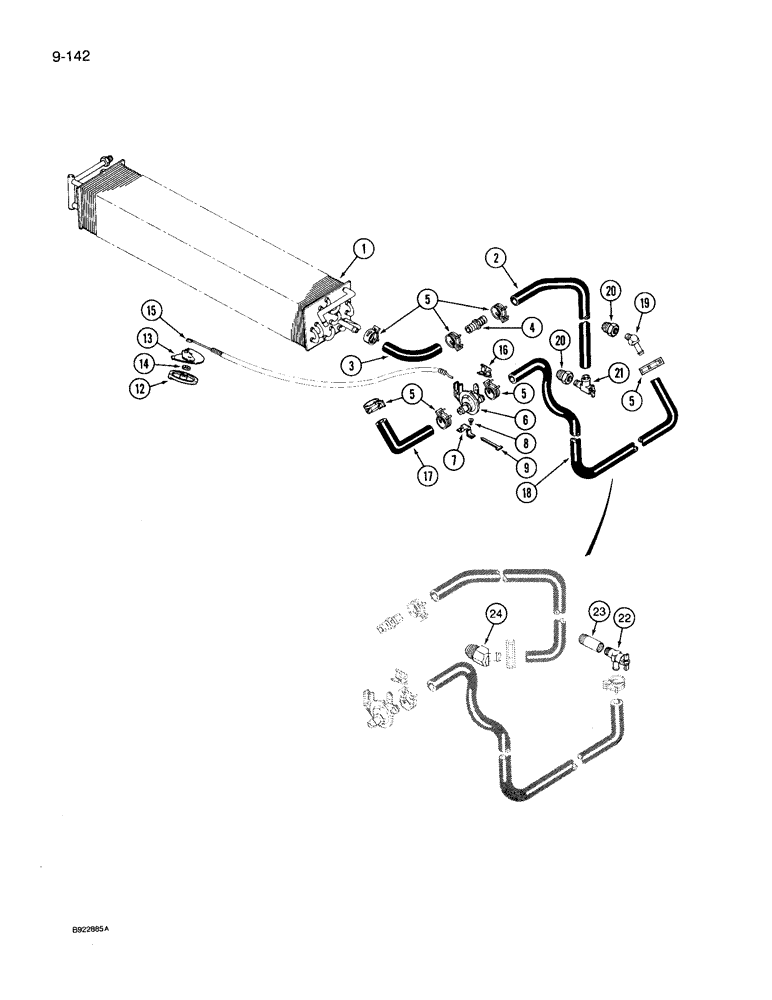

Запчасти Case IH 7120 (9-142) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CORE - heater and air conditioning, See Figure 9-144

1шт.

2

1954493C1

HEATER HOSE,15.50 mm ID x 3500.00 mm

- Cab heater supply, Order 97252C1 and cut to length 15.50 mm ID x 3500.00 mm

1шт.

3

96881C2

HEATER HOSE

- Heater core inlet

1шт.

4

1301342C1

FITTING

CONNECTOR - hose, 5/8 inch ID

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, Spring

8шт.

6

1331087C1

HEATER VALVE

VALVE - heater control

1шт.

7

97116C1

BRACKET

SUPPORT - heater valve

1шт.

8

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan head tap, No. 8-18 x 1/2 inch

2шт.

9

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , Replaces 702093C1 .098" x 8"

2шт.

12

96893C1

KNOB

- heater control

1шт.

13

96879C1

LEVER

- heater control

1шт.

14

109311H

JAM NUT

- hex jam, 7/16-28 inch NF

1шт.

15

96877C2

CABLE PULLING GRIP

CABLE - heater control

1шт.

16

1954626C1

SPRING CLIP

CLIP - spring, cable retainer

1шт.

17

96880C2

HEATER HOSE,15.50 mm ID x 131.00 mm

- Core to valve 15.50 mm ID x 131.00 mm

1шт.

18

1954494C1

HEATER HOSE,15.50 mm ID x 4267.00 mm

Heater return, Order 97252C1 and cut to length 15.50 mm ID x 4267.00 mm

1шт.

19

217-207

FITTING,45 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

ELBOW - 45 degree, 5/8 barb end x 3/8 inch PT, if used, Replaces 941980R1

1шт.

20

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - pipe reducer, 1/2 x 3/8 inch, if used

2шт.

21

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - shutoff, inlet, if used

1шт.

22

107107A1

SHUT-OFF VALVE

VALVE - water shutoff, right-hand side, if used

1шт.

23

105581A1

COUPLING

BUSHING - pipe reducer, 1/2 x 3/8 inch, if used

1шт.

24

1348531C1

ADAPTER

ELBOW - 45 degree, 1/2 NPT x 5/8 inch hose, left-hand side, if used

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
