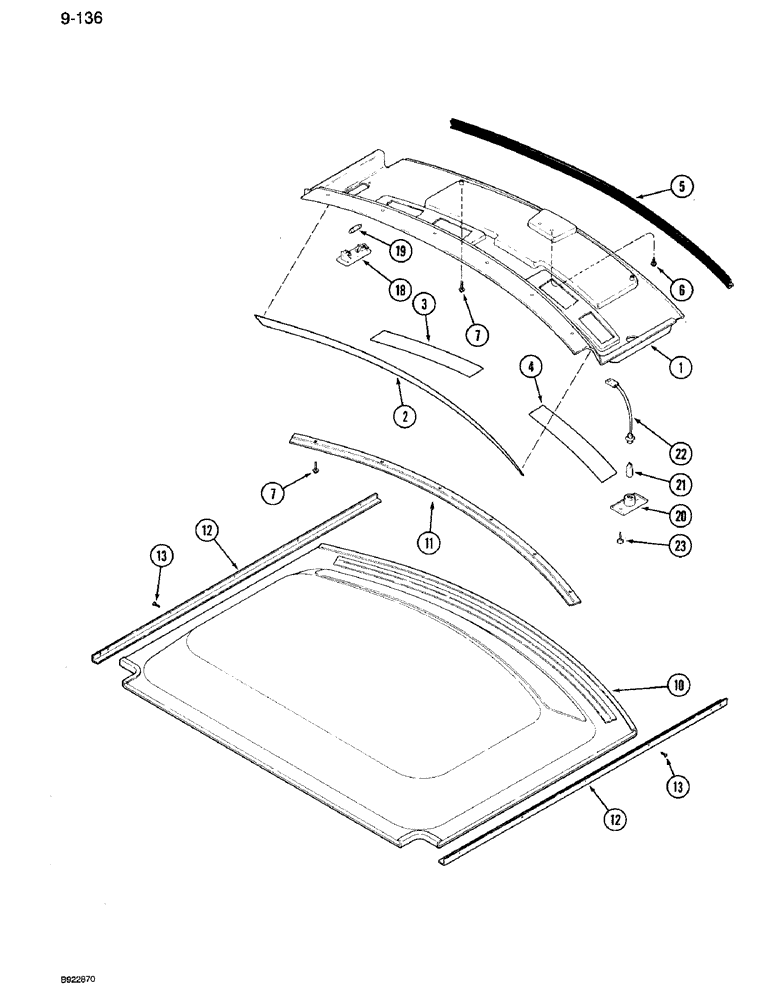

Запчасти Case IH 7120 (9-136) - FOUR POST ROPS, HEADLINERS (09) - CHASSIS/ATTACHMENTS

1

1975907C1

PANEL ASSY.

HEADLINER ASSEMBLY - front, ROPS, Includes: Ref. 2 - 4

1шт.

2

1975908C1

DECAL

- panel, center

1шт.

3

1975909C1

DECAL

- panel, left louver

1шт.

4

1975910C1

DECAL

- panel, right louver

1шт.

5

1975965C1

SEAL

SEAL - rubber, headliner front

1шт.

6

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - pan head cross slot, polyseal

2шт.

7

97172C1

SELF-TAP SCREW,Cross Pan Hd, #10-16 x 1"

polyseal Cross Pan Hd, #10-16 x 1"

8шт.

10

1975911C3

ROOF

HEADLINER - rear, Replaces: 1975911C2

1шт.

11

1977524C1

SUPPORT ASSY.

SUPPORT - front, rear headliner

1шт.

12

1975883C1

ANGLE

SUPPORT - headliner, side

2шт.

13

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

10шт.

18

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Replaces: K303720, Includes: Ref. 19

1шт.

19

3050958R1

BULB,K, 12V, 10W

- light, Replaces K913579 K, 12V, 10W

1шт.

20

83882C91

LAMP

ASSEMBLY - illumination, console, Includes: Ref. 21 and 22

1шт.

21

26617R1

BULB,C2F, #168, 14V

- lamp, No. 168

1шт.

22

107329C1

WIRE HARNESS

SOCKET - cable, bulb

1шт.

23

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.
