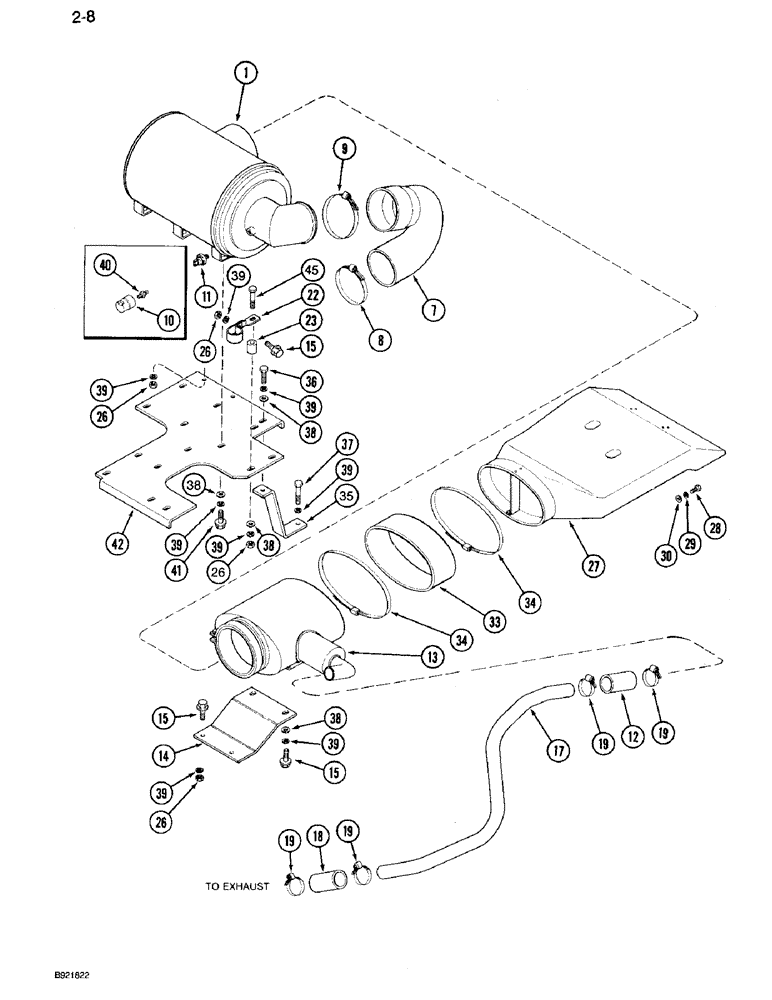

Запчасти Case IH 7120 (2-08) - AIR INDUCTION SYSTEM, PRIOR TO P.I.N. JJA0033579 (02) - ENGINE

1

REF

INSTRUCTION

CLEANER ASSEMBLY air, engine, See Figure 2-12

1шт.

7

1289073C2

LARGE HOSE

HOSE air, Serial Range: cleaner-turbocharger

1шт.

8

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP, HOSE, #76, 5-1/2 inch

1шт.

9

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP hose No.84, 6 inch

1шт.

10

REF

INSTRUCTION

SWITCH restriction, air, order 1983233C1

1шт.

11

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air, Replaces: A172784 and D36264

1шт.

12

L79809

HOSE

aspirator

1шт.

13

A173833

PRECLEANER

engine

1шт.

14

1968176C3

SUPPORT

BRACKET support, precleaner

1шт.

15

905-10025

BOLT,Hex Flg, M10 x 25mm

hex flange, 10 x 25 mm

5шт.

17

1289096C3

TUBE

aspirator

1шт.

18

A169142

HOSE,38.90 mm ID, 37.30 mm ID x 92.25 mm, SAE 20R4 class D-3

- Aspirator 38.90 mm ID, 37.30 mm ID x 92.25 mm, SAE 20R4 class D-3

1шт.

19

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

Use until depleted, then use 214-1476

1шт.

22

1334309C2

COLLAR CLAMP

CLAMP tube, aspirator

1шт.

23

A176570

SPACER

muffler support, Replaces: 1334497C1

1шт.

26

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

11шт.

27

1289106C1

DUCT

air intake

1шт.

28

813-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

hex, 8 mm, 1.25 x 14 mm

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 2 mm

2шт.

33

1289310C2

STRIP

HOSE inlet, precleaner

1шт.

34

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP hose No.136, 8-1/2 inch

2шт.

35

1340705C1

SUPPORT

BRACKET air cleaner mounting, Replaces: 1289094C1

1шт.

36

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

37

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

39

892-11010

LOCK WASHER,M10

1шт.

40

D36264

FITTING

filter, used with ref 10 only

1шт.

41

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

42

1289088C3

SUPPORT

air cleaner

1шт.

45

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.
