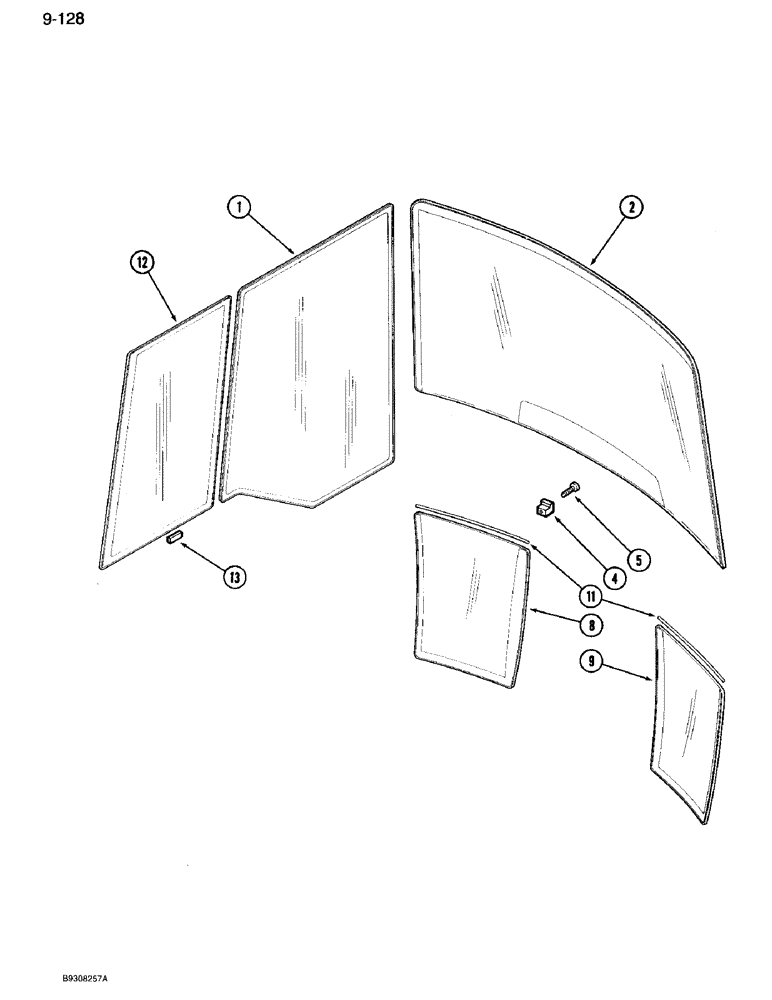

Запчасти Case IH 7120 (9-128) - CAB, WINDSHIELD, DOOR AND LEFT REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

1340194C1

GLASS

- window, door, Replaces: 96938C1

1шт.

2

1340195C1

GLASS

- windshield, upper, Replaces: 96594C2

1шт.

4

96902C1

SPACER

- windshield, upper

2шт.

5

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

8

1340196C1

GLASS

- lower, windshield left, Replaces: 96596C2

1шт.

9

1340197C1

GLASS

- lower, windshield right, Replaces: 96595C2

1шт.

11

1981771C2

SEAL,380mm L

- windshield, Replaces: 1276394C2 and 1981771C1

1шт.

P/N 1276394C2 is replaced by B17576, RTV sealant for 1 side of the glass, and P/N 1981771C2 is used for the other side.

1шт.

12

1340200C1

GLASS,CAB

GLASS - window, left rear side, Replaces: 96760C1

1шт.

13

97268C1

SPACER

- bonded glass, adhesive back, door window

4шт.
