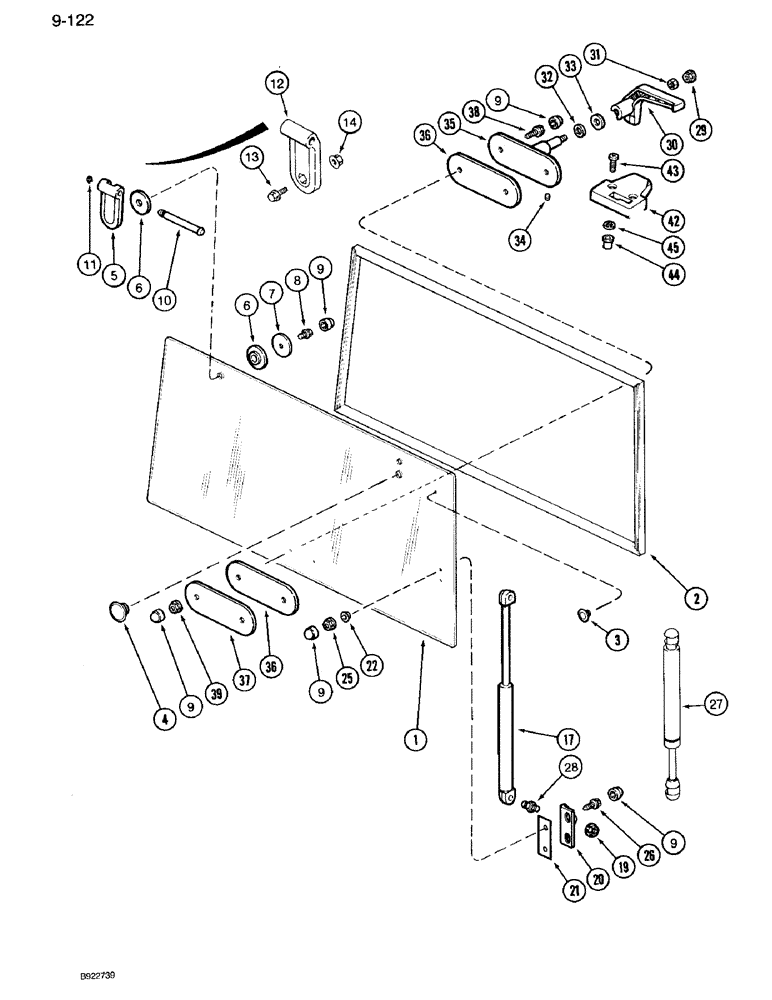

Запчасти Case IH 7120 (9-122) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

1340198C1

GLASS

- window, rear, Replaces: 96669C2

1шт.

2

1990790C1

SEAL

- glass, window, Replaces: 97071C1

1шт.

3

F66089

PLUG

- window, 3/8 inch diameter

1шт.

4

F66090

PLUG

- window, 29/32 inch diameter

1шт.

5

97166C1

HINGE

- window, no longer available, order 1999808C1, 107135A1, 97005C1, Ref. 12 - 14

2шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

- rubber

2-4шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- flat, 6 mm

2шт.

8

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

- hex flange seal, 6 x 12 mm, if used

2шт.

9

K651962

CAP

- bolt, if equipped

14шт.

10

K303517

PIN

- hinge, Replaces: K310930

2шт.

11

31355R1

RING, SNAP,M8, Ext

RING - retainer

2шт.

12

1999808C1

HINGE

- window

2шт.

13

107135A1

BOLT

BOLT - hex flange, 6 x 25 mm

2шт.

14

97005C1

FLANGE NUT

- hex flange self-locking, 6 mm

2шт.

17

96817C1

SHOCK ABSORBER

CYLINDER - door, gas spring, Serial Range: -JJA0044634

2шт.

18

1304648C1

STUD

- ball, Replaces: F44882, used with ref. 17, 96817C1, cylinder

4шт.

19

1330064C1

FLANGE NUT

- hex flange, 5/16 inch NC

2шт.

20

1954284C1

BRACKET

- cylinder, Replaces: 96808C3

2шт.

21

109587C2

PAD

- bracket

2шт.

22

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

- bolt

4шт.

25

97005C1

FLANGE NUT

- hex flange, 6 mm

4шт.

26

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 x 20 mm

4шт.

27

1343825C1

GAS STRUT,306mm Extended, 207.02mm Compressed

CYLINDER - gas spring, Start Serial: JJA0044634

2шт.

28

1999766C1

BALL JOINT

STUD - ball, used with ref. 27, 1343825C1, cylinder

2шт.

1340201C1

HANDLE

- assembly, window, Replaces: 1975984C1, Includes: Ref. 29 - 35

1шт.

29

1340207C1

PLUG

- window hinge, Replaces: K656780

1шт.

30

1340205C1

HANDLE

- rear window, Replaces: K303514

1шт.

31

825-1406

NUT,M6, Cl 8

1шт.

32

1340206C1

RUBBER BUSHING

BUSHING - rubber, Replaces: K651910

1шт.

33

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

34

19443R1

PIN,5/32" x 5/8", Coiled

Replaces K654315 5/32" x 5/8", Coiled

1шт.

35

1340202C1

PLATE

- assembly, clamping, Replaces: K303982

1шт.

36

1340208C1

RUBBER PAD

PAD - rubber, Replaces: K303503

2шт.

37

1340203C1

PLATE

- clamping, Replaces: K303508

1шт.

38

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

BOLT - hex flange seal, 6 x 25 mm

2шт.

39

97005C1

FLANGE NUT

- hex flange seal, 6 mm

2шт.

42

1340142C1

PLATE

- striker, Replaces: K303980

1шт.

43

261-34720

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

Replaces 31144R1 Cross Pan Hd, 1/4" x 1 1/4"

2шт.

43

31144R1

SCREW,Cross Pan Hd, M6 x 30

- pan cross slot, 6 x 30 mm, if equipped

2шт.

44

97017C1

INSERT

- threaded, 6 mm, if equipped

2шт.

45

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.
