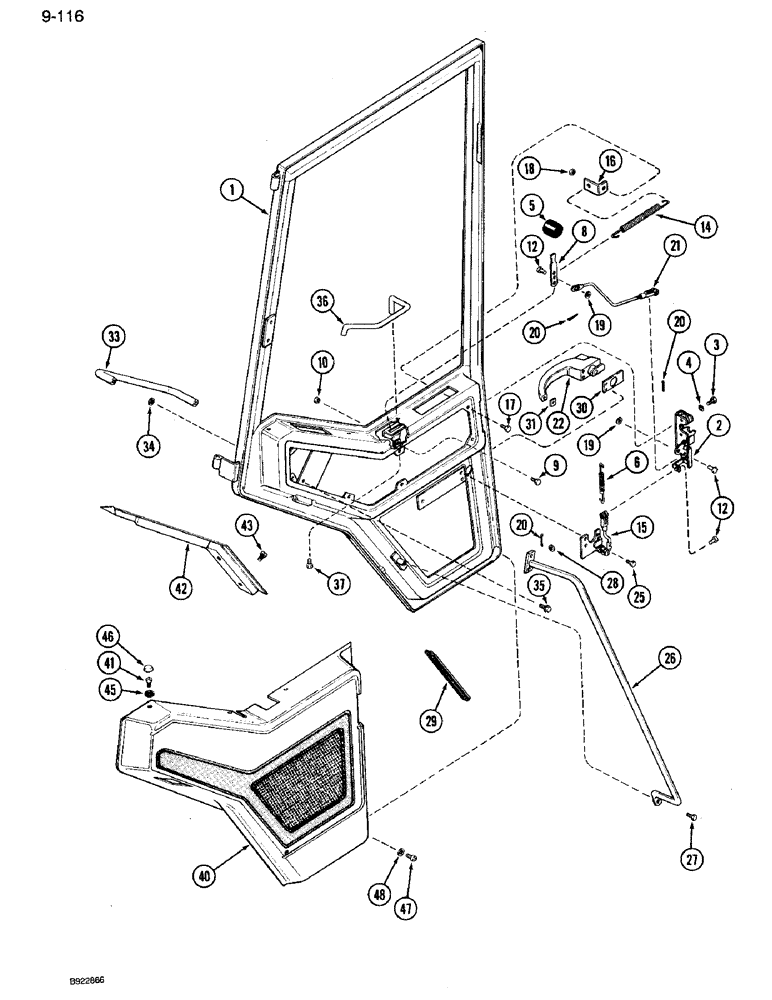

Запчасти Case IH 7120 (9-116) - CAB DOOR AND LATCH, PRIOR TO CAB SERIAL NUMBER JAB0052818 (09) - CHASSIS/ATTACHMENTS

1

1343890C1

DOOR

FRAME - cab door, Replaces: 1262185C5

1шт.

No glass in door glass, P/N 96938C1

1шт.

2

97208C2

LATCH ASSY.

LATCH ASSEMBLY - door, rotary

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

4

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

3шт.

5

A177435

BALL KNOB

KNOB - lever

1шт.

6

1977595C1

SPRING

- return, latch

1шт.

8

97112C3

ARM

- latch, door

1шт.

9

21934R1

HEADED PIN,1/4" x 1/2"

BOLT - mounting, arm

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

12

427-4077

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64 inch

3шт.

14

97057C2

TENSION SPRING

SPRING - handle

1шт.

15

97210C2

ROD

LINKAGE ASSEMBLY - rod

1шт.

16

97218C1

BRACKET

- mounting, spring

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

20

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

21

97211C1

ROD

- latch

1шт.

22

1283591C2

HANDLE

- door, outer

1шт.

A77313

SET OF 2 KEYS

KEY - door lock, set of 2

1шт.

25

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

3шт.

26

1283495C2

HANDLE

- grab, door

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex seal, 5/16 NC x 3/4 inch

3шт.

28

195-520

WASHER,1/4"

- flat, 3/8 x 7/8 x 5/64 inch

1шт.

29

96771C1

DOOR SEAL

SEAL - door

1шт.

30

1974873C1

WASHER

GASKET - handle, door, large

1шт.

31

1974872C1

WASHER

GASKET - handle, door, small

1шт.

33

96840C1

HANDLE

- grab

1шт.

34

1283589C2

RUBBER WASHER

PAD - mounting, handle

2шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex flange seal, 5/16 NC x 3/4 inch

2шт.

36

1283690C1

ROD

- guard, handle

1шт.

37

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex flange lock, 1/4 NC x 1/2 inch

2шт.

40

97082C5

PANEL ASSY.

PANEL - door, door panel covering may differ between models

1шт.

41

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot tap, No. 10-16 x 1/2 inch

2шт.

42

96736C2

PANEL ASSY.

PANEL - trim, door

1шт.

43

97207C1

SELF-TAP SCREW,#10 - 24 x 3/4"

- pan head cross slot tap, No. 10-24 x 3/4 inch

3шт.

45

97279C1

RETAINER

- trim

2шт.

46

97280C1

CAP

- trim

2шт.

47

187-1722

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - pan head cross slot tap, No. 8 x 3/8 inch

1шт.

48

495-21019

WASHER,#8

1шт.
