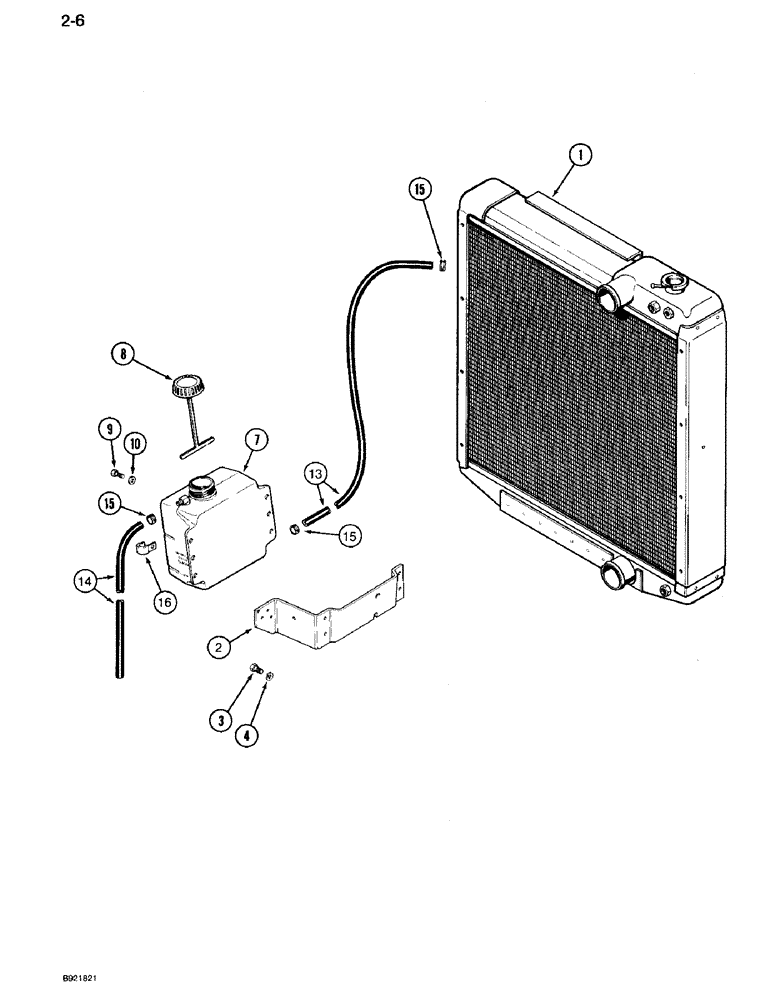

Запчасти Case IH 7120 (2-06) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR coolant, engine, See Figure 2-02

1шт.

2

1289499C2

SUPPORT

BRACKET mounting, container, Replaces: 1289499C1

1шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

7

A184395

RESERVOIR

CONTAINER coolant, recovery

1шт.

8

A184079

CAP

container

1шт.

9

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW, self-tapping, hex washer head, 5/16 NC x 3/4 inch

4шт.

10

30175R1

WASHER,M8 x 17.5 x 2, HT

if used M8 x 17.5 x 2, HT

4шт.

13

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Coolant, Recovery 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

14

1340641C1

HOSE

coolant, recovery, 300 mm long

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP hose, retaining

3шт.

16

R54362

CLAMP,J, 9/16" Insul, 5/16" Bolt

harness

2шт.
