Запчасти Case IH 7120 (9-112) - CAB ROOF CAP (09) - CHASSIS/ATTACHMENTS

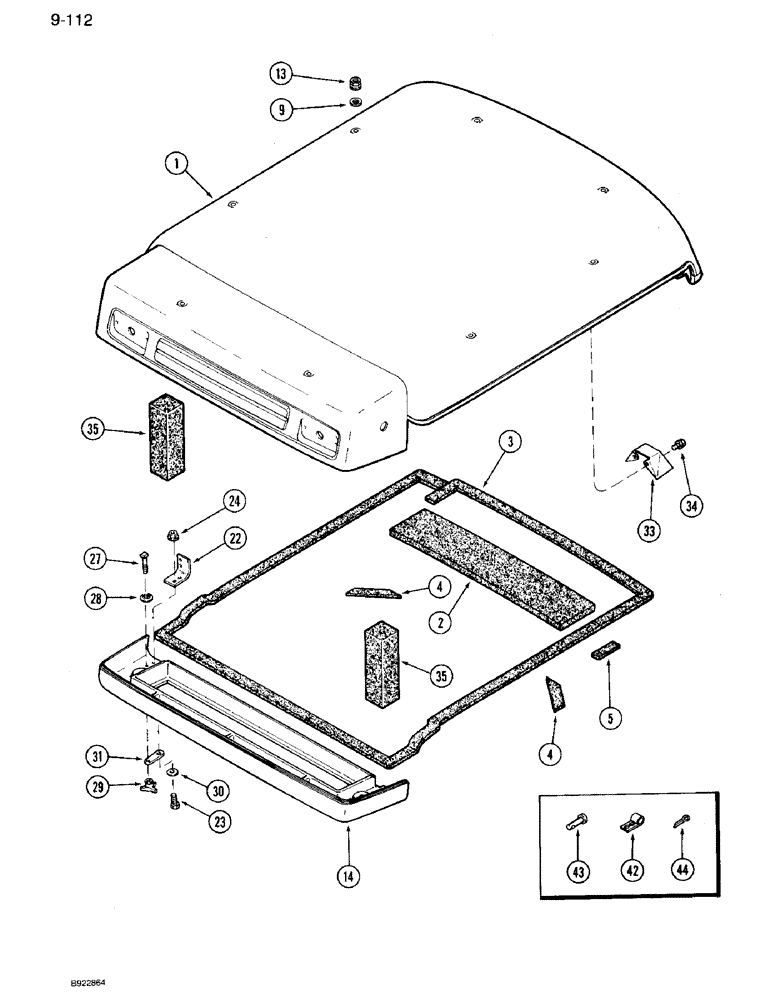

Схема запчастей Case IH 7120 - (9-112) - CAB ROOF CAP (09) - CHASSIS/ATTACHMENTS
9
27
1
44
22
43
23
4
3
35
34
33
42
5
2
14
31
30
29
4
13
35
28
24

Артикул

Название

Примечание

Количество

1

96755C5

ROOF

ASSEMBLY - cab, Replaces: 96755C4

1шт.

2

98355C1

FOAM INSULATION

SEAL - roof, 810 mm long

1шт.

3

98356C1

SEALING STRIP

SEAL - roof, 5100 mm, order 1974883C1 and, Serial Range: cut-length

1шт.

4

98358C1

SEALING STRIP

SEAL - roof, 210 mm, order 1974883C1 and, Serial Range: cut-length

2шт.

5

98359C1

SEALING STRIP

SEAL - roof, 100 mm, order 1974883C1 and, Serial Range: cut-length

1шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

- sector arm

8шт.

13

1330157C1

FLANGE NUT

- hex flange, 1/4 inch NC

8шт.

14

97029C3

COVER ASSY

COVER - support

1шт.

22

1981897C1

HINGE

- cover, support

2шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

24

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC, grade 8

8шт.

27

117-206

SQUARE BOLT,1/4" - 20 x 2 1/2", Gr 2

- hex, 1/4 x 2-1/2 inch NC

2шт.

28

1971364C1

RETAINER

- bolt

2шт.

29

1340216C1

BUTTON

KNOB retaining, cover, female threads

2шт.

29

1975759C3

BUTTON

KNOB retaining, cover, male threads, has three prong arm with 1/4-20 UNC male stud attached, insert this into 1975757C1

2шт.

30

195-81032

WASHER,.266" x 13/16" x .083"

12шт.

31

1340093C1

LARGE PLATE

STRAP - knob retaining

2шт.

33

1975760C2

COVER

- wiper arm

1шт.

34

414-410

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

- hex flange, 1/4 x 5/8 inch, polyseal

2шт.

35

1977988C1

FOAM

PAD - foam, filler, anti-bird

6шт.

42

97216C1

HINGE

- support cover, iIf equipped

4шт.

43

663921R1

PIN

- head, 5/16 x 2-1/2 inch, if equipped

2шт.

44

432-816

COTTER PIN,1/8" x 1"

if equipped 1/8" x 1"

2шт.

1974883C1

SEAL

- 68 foot, foam, bulk roll

1шт.

Выбрано товаров: 24
