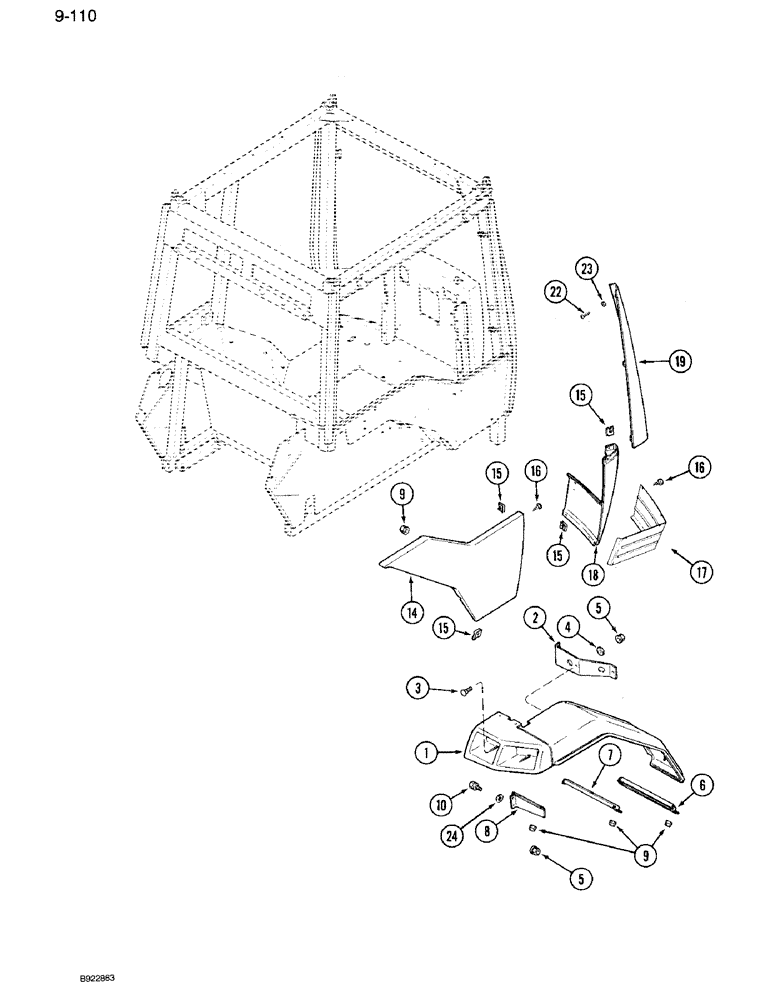

Запчасти Case IH 7120 (9-110) - RIGHT REAR FENDER AND PANELS (09) - CHASSIS/ATTACHMENTS

1

97004C2

FENDER

ASSEMBLY - right, tractor, Replaces: 97004C1

1шт.

2

1283847C1

SUPPORT

BRACKET - rear support

1шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

6

1990670C1

SUPPORT

- fender, lower right, Replaces: 96949C1

1шт.

7

1990671C1

SUPPORT

- fender, upper right, Replaces: 96950C1

1шт.

8

1990672C1

SUPPORT

- fender, right front, Replaces: 1283793C1

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

1348499C1

SCREW,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Dog Pt

BOLT - hex flange lock, 5/16 NC x 3/4 inch, dog point

1шт.

14

96702C2

PANEL ASSY.

PANEL - side, right

1шт.

15

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

1шт.

16

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross slotted, No. 10-16 x 5/8"

1шт.

17

1348226C1

PANEL ASSY.

PANEL - frame, lower right front, Replaces: 96765C1

1шт.

Panel was changed in Aug 1991 with old part retained for service, product important that eliminated accumulation of debris, eliminated "shelf" on old panel.

1шт.

18

96710C1

COVER ASSY

COVER - post, lower right, cab only

1шт.

19

96703C1

COVER ASSY

COVER - post, upper right, cab only

1шт.

22

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross slotted, No. 10-16 x 5/8"

2шт.

23

495-31016

WASHER,#6

2шт.

24

1990583C1

WASHER

- fender mounting

1шт.
