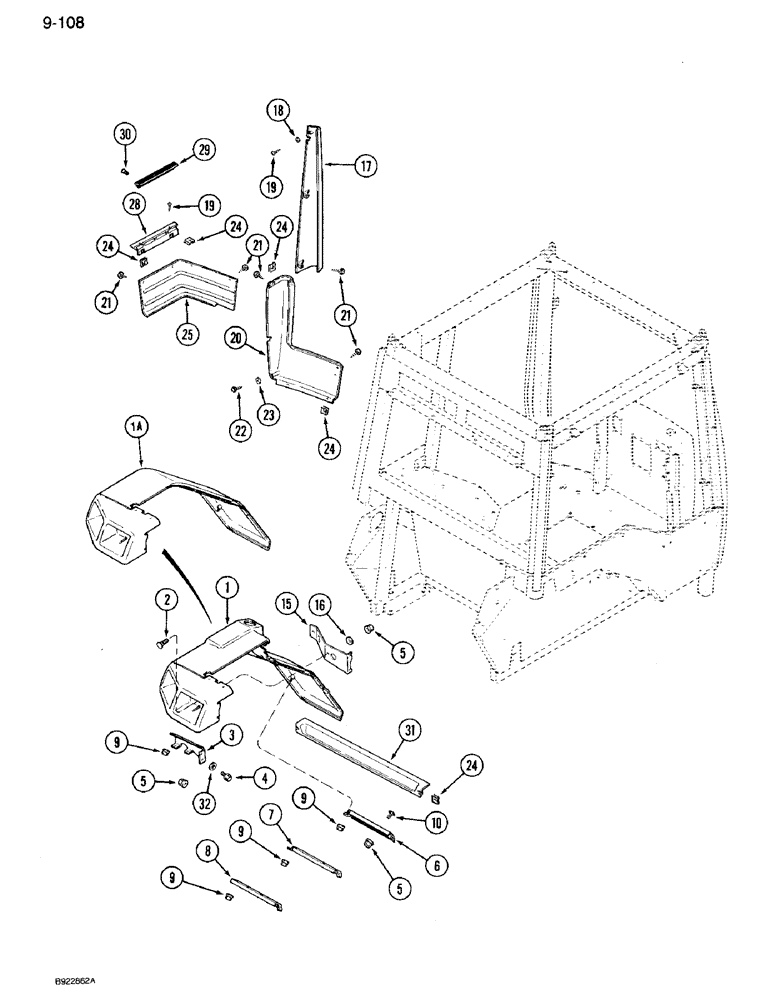

Запчасти Case IH 7120 (9-108) - LEFT REAR FENDER AND PANELS (09) - CHASSIS/ATTACHMENTS

1

97003C1

FENDER

ASSEMBLY - tractor, left, no longer available, order 97003C2, Ref. 1A

1шт.

1a

97003C2

FENDER

ASSEMBLY - tractor, left

1шт.

Does have a filler hole as shown on P/N 97003C1 diagram is incorrect.

1шт.

2

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

4шт.

3

1990666C1

SUPPORT

- fuel filler tube, Replaces: 1283791C1

1шт.

4

1348499C1

SCREW,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Dog Pt

BOLT - hex flange lock, 5/16 NC x 3/4 inch, dog point

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

1шт.

6

1990669C1

SUPPORT

- fender, lower left, Replaces: 96946C1

1шт.

7

1990668C1

SUPPORT

- fender, center left, Replaces: 96947C1

1шт.

8

1990667C1

SUPPORT

- fender, upper left, Replaces: 96948C1

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 x 3/4 inch

4шт.

15

1283847C1

SUPPORT

BRACKET - rear support

1шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

17

96704C1

COVER ASSY

COVER - post, upper left, cab only

1шт.

18

495-31016

WASHER,#6

1шт.

19

1270762C1

SELF-TAP SCREW

- special, No. 10 x 3/4 inch, panel

2шт.

20

96709C1

COVER ASSY

COVER - post, lower left, cab only

1шт.

Tape Decal P/N 220941A1. In kit auxiliary step kit P/N 198841A1

1шт.

21

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

1шт.

22

1283774C1

SELF-TAP SCREW,Hi-Lo, Hex Wshr Hd, #8 - 18 x 3/4", Blunt Pt

- hex washer head, No. 8 x 3/4 inch

2шт.

23

495-31016

WASHER,#6

2шт.

24

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

1шт.

25

96764C2

PANEL ASSY.

PANEL - frame, lower left front

1шт.

28

96763C1

PANEL ASSY.

PANEL - step

1шт.

29

1971318C1

STEP

THRESHOLD - entrance, tractor

1шт.

30

1971367C2

SELF-TAP SCREW,Cross Oval Hd, #10-16 x 3/4"

SCREW - oval cross slotted, No. 10-16 x 3/4 inch

2шт.

31

96930C1

PLATE

PANEL - tail light

1шт.

32

1990583C1

WASHER

- fender mounting

1шт.
