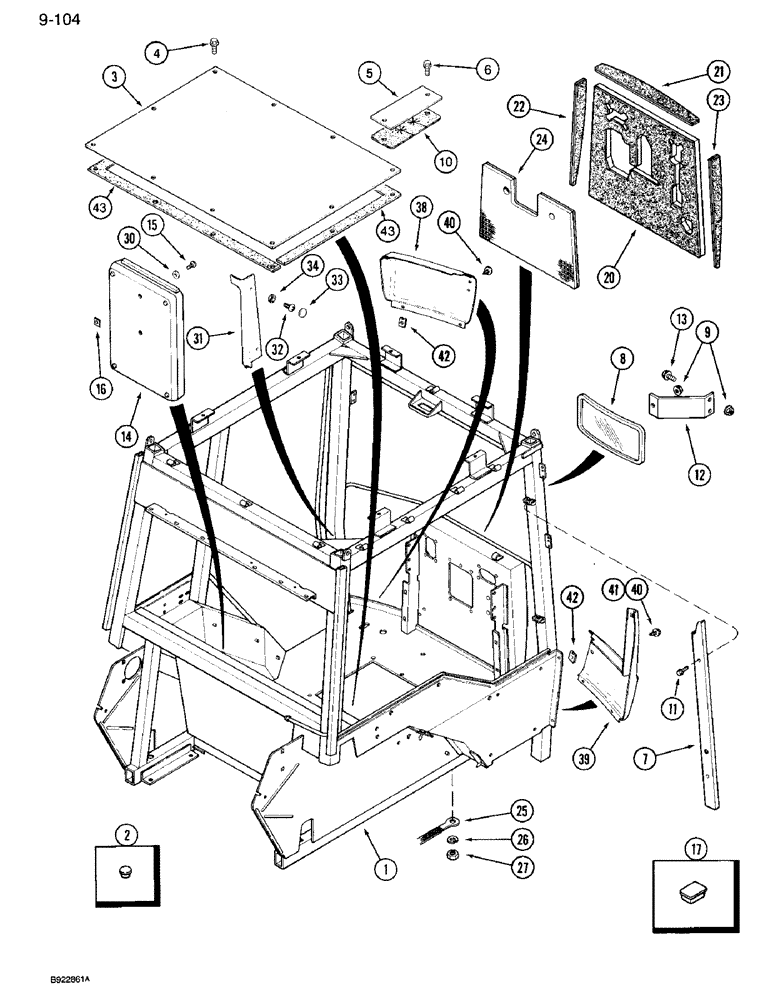

Запчасти Case IH 7120 (9-104) - FOUR POST ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1

1344306C4

CHASSIS

FRAME - protective, ROPS, some frames may or may not have lift eyes, Replaces: 97132C2

1шт.

2

353-405

PLUG,Dome, .562" hole, Nylon

- plastic, 9/16 inch diameter

3шт.

3

96964C1

PLATE ASSY.

PLATE - floor access

1шт.

4

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - hex flange, 5/16 NC x 3/4 inch, Replaces: 121-106

10шт.

5

96951C1

PLATE ASSY.

PLATE - implement cable

1шт.

6

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

2шт.

7

97093C3

COVER ASSY

COVER - post, upper right

1шт.

8

A177462

MIRROR

- rear view

1шт.

9

1330064C1

FLANGE NUT

- hex flange, 5/16 inch NC

3шт.

10

A165354

SEAL

- plate

1шт.

11

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - cross slotted truss head, polyseal

2шт.

12

96845C1

BRACKET

- mirror

1шт.

13

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - hex flange, 5/16 NC x 3/4 inch

2шт.

14

97079C2

BOX

- operators manual

1шт.

15

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head, No. 10-16 x 1/2 inch

2шт.

16

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

2шт.

17

97028C1

PLUG

- post, right

1шт.

20

1334281C3

INSULATOR

PAD - insulation, firewall front

1шт.

21

1334282C2

INSULATOR

PAD - insulation, top

1шт.

22

1334283C2

INSULATOR

PAD - insulation, firewall left

1шт.

23

1334284C2

INSULATOR

PAD - insulation, firewall right

1шт.

24

97027C1

PAD

- firewall

1шт.

25

91963C1

GROUND STRAP

STRAP - ground

1шт.

26

892-11010

LOCK WASHER,M10

1шт.

27

825-1410

NUT,M10, Cl 8

1шт.

30

495-31022

WASHER,#10

2шт.

31

96720C2

COVER ASSY

COVER - lower front, left post, if equipped

1шт.

32

97207C1

SELF-TAP SCREW,#10 - 24 x 3/4"

- tapping, retainer, if equipped

2шт.

33

97280C1

CAP

- trim, if equipped

2шт.

34

97279C1

RETAINER

- cap, if equipped

2шт.

38

1977382C1

COVER ASSY

COVER - lower post, left

1шт.

39

1977383C1

COVER ASSY

COVER - lower post, left

1шт.

40

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

5шт.

41

1977385C1

SELF-TAP SCREW

- cross slotted polyseal, 1-1/4 inch tapping

1шт.

42

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

5шт.

43

1971260C1

SEAL

SEAL - floor access plate

2шт.
