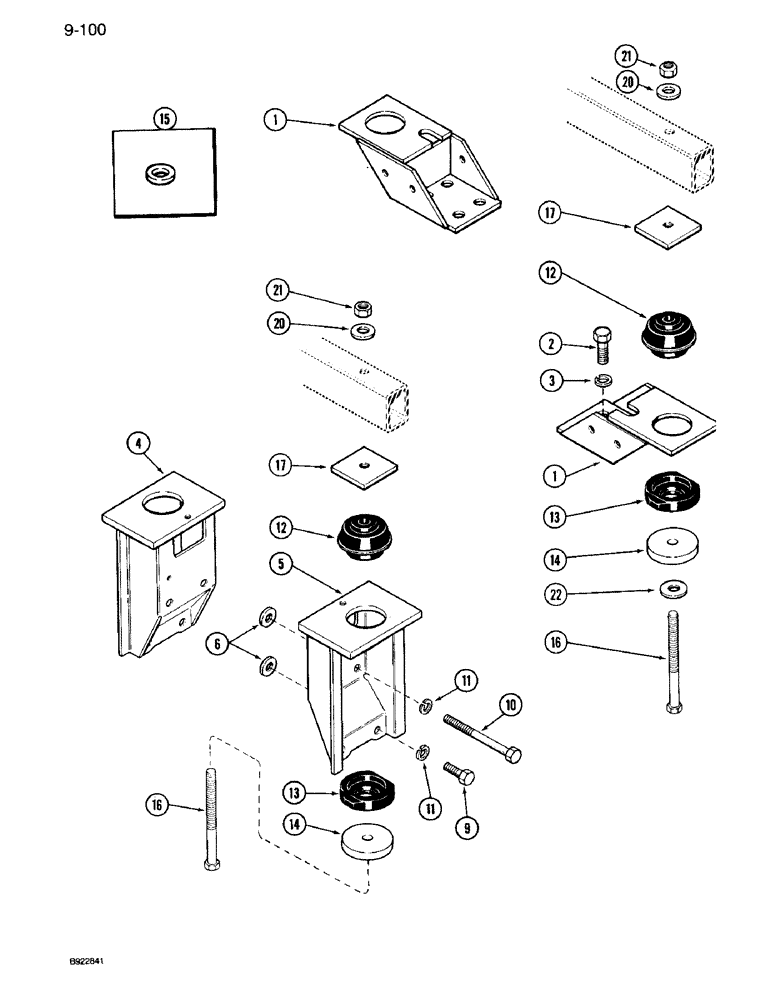

Запчасти Case IH 7120 (9-100) - MOUNTS, CAB AND FOUR POST ROPS (09) - CHASSIS/ATTACHMENTS

1

96523C2

BRACKET

- mounting, front

2шт.

2

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

BOLT - hex, 20 mm - 2.5 x 50 mm, class 10.9

8шт.

3

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

8шт.

4

1982052C2

SUPPORT

BRACKET - mounting, left rear, Replaces: 1259749C3

1шт.

5

1982053C2

SUPPORT

BRACKET - mounting, right rear, Replaces: 1259750C3

1шт.

6

144212C1

WASHER

- rear mounting spacer

8шт.

9

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

10

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

- hex, 16 mm - 2 x 150 mm. class 10.9

4шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

8шт.

1286905C2

KIT

MOUNT AND SPACER KIT - cab, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

MOUNT - isolation, top

4шт.

13

NSS

NOT SOLD SEPARAT

MOUNT - isolation, bottom

4шт.

14

1982005C1

SPACER

- rebound, Replaces: 96526C1 and 1286886C1

4шт.

15

1286904C1

WASHER

SPACER - 1/8 x 1-15/16 inch, not used this application

2шт.

16

1982004C1

BOLT

BOLT - mounting, Replaces: 96525C1

4шт.

17

117737C1

PLATE

- mounting

4шт.

20

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch

4шт.

21

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

22

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

2шт.
