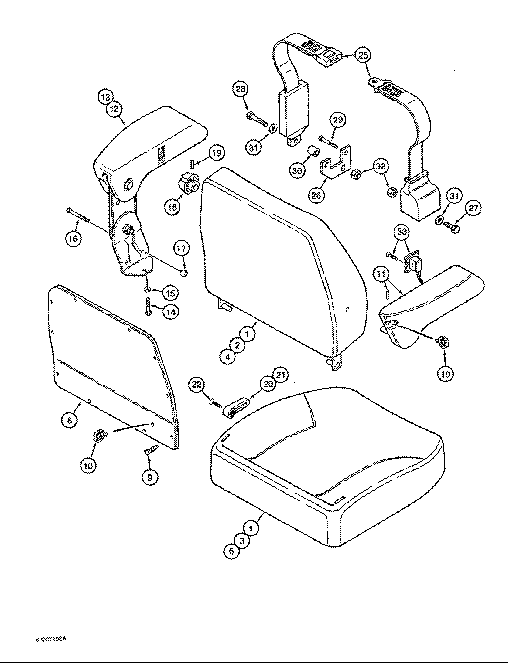

Запчасти Case IH 7120 (9-095A) - DELUXE AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1999936C1

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, parts list Figures 9-95A - 9-95L, Includes: Ref. 1 - 33

1шт.

1

134128A1

SEAT

KIT - seat cushion and backrest, without armrest

1шт.

2

132886A1

BACKREST

KIT - backrest, with structure, without armrest

1шт.

3

132888A1

CUSHION

KIT - seat cushion, with structure

1шт.

132884A1

BACKREST

KIT - backrest pad only, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

132885A1

CUSHION

KIT - seat cushion pad only, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

1974713C2

PACKAGE

KIT - backrest plate, cover, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest plate

1шт.

9

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

10шт.

10

NSS

NOT SOLD SEPARAT

CLIP - cable retaining

2шт.

11

132880A1

ARMREST

- right-hand, black, includes 1- drive pin

1шт.

12

143214A1

ARMREST

LH, Complete

1шт.

13

132882A1

ARMREST

LH, Molded Pad Only, Black

1шт.

13

132883A1

SET OF PARTS

KIT - left-hand armrest adjustment

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

16

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

17

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, seat top, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

19

138-2024

PIN,5/32" x 1", Coiled

2шт.

20

NSS

NOT SOLD SEPARAT

KNOB - back tilt cover

1шт.

21

NSS

NOT SOLD SEPARAT

HANDLE - recliner

1шт.

22

942-1612

SCREW,Oval CSK, M6 x 12mm, Cl 4.8

1шт.

23

NSS

NOT SOLD SEPARAT

KNOB - seat tilt, not used, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, not used, not shown

1шт.

1344158C1

SET

KIT - seat belt, Includes: Ref. 25 - 32

1шт.

25

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - seat belt, left-hand

1шт.

27

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

28

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

29

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

30

NSS

NOT SOLD SEPARAT

SPACER - 3/8 x 3/8 inch

1шт.

31

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

32

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex, self-locking, 7/16 inch NC

2шт.

33

132868A1

SET OF PARTS

KIT - height adjustment, includes 3 - cover plates, 1 - rocker switch, and 4 - screws, included in 132861A1 suspension

1шт.
