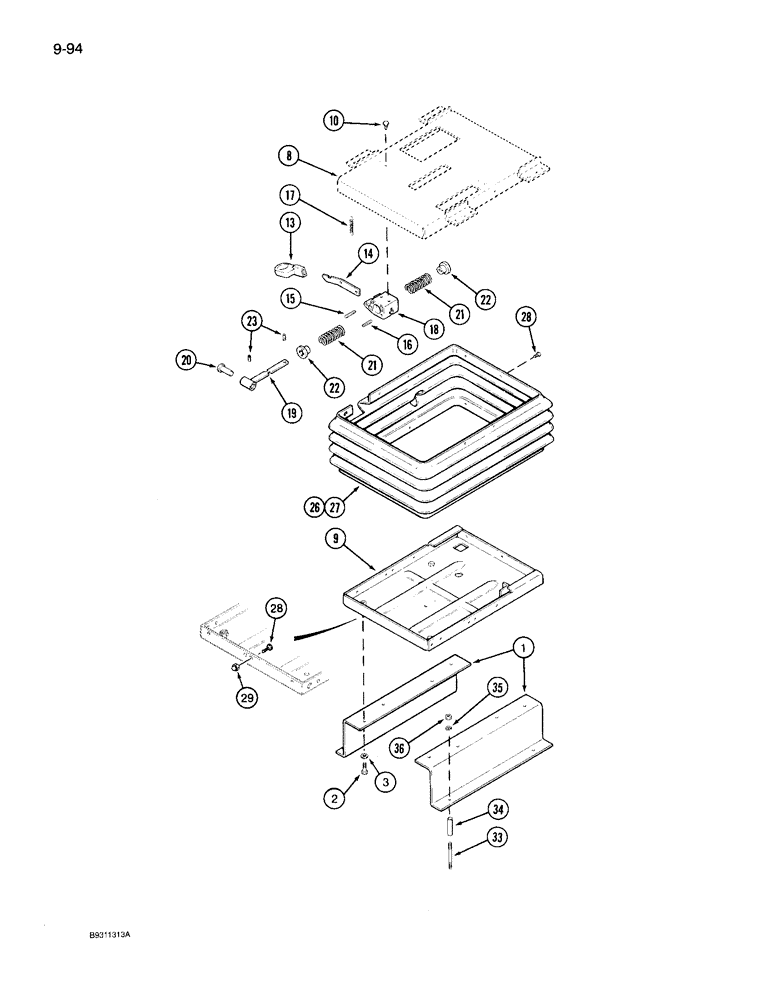

Запчасти Case IH 7120 (9-094) - AIR SUSPENSION SEAT, SUSPENSION AND MOUNTS, P.I.N. JJA0028200 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1977735C1

SUPPORT

BRACKET - mounting, seat

2шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

1987214C4

SEAT ASSY.

SEAT ASSEMBLY - air suspension, without brackets, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1987214C3, Includes: Ref. 8 - 36

1шт.

1990641C2

PACKAGE

KIT - seat suspension, parts list Figures 9-90 - 9-94, Replaces: 1990641C1

1шт.

8

REF

INSTRUCTION

HOUSING - upper, suspension, See Figure 9-90

1шт.

9

1981834C1

HOUSING

- lower, suspension, no longer available, order 1990641C1

1шт.

10

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, Includes: Ref. 13 - 23

1шт.

13

1981850C1

GRIP

KNOB - isolator control, fore and aft, no longer available, order 1999692C1 kit shown below

1шт.

Part of Knob Kit, P/N 1999692C1

1шт.

14

NSS

NOT SOLD SEPARAT

LATCH - isolator, Replaces: 1343884C1

1шт.

15

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

16

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - extension, Replaces: 1981863C1

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK - isolator, Replaces: 1981839C1

1шт.

19

NSS

NOT SOLD SEPARAT

BAR - spring, Replaces: 1981838C1

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, Replaces: 1981846C1

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - compression, Replaces: 1981840C1

2шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - spring, Replaces: 1981841C1

2шт.

23

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

26

1990647C2

KIT

BOOT KIT - suspension, with buttons, Replaces: 1990647C1, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

132872A1

KIT

- boot pins, Includes: Ref. 28 - 30

1шт.

28

700709502

FASTENER

PIN - retaining, plastic, bag of 25

1шт.

29

NSS

NOT SOLD SEPARAT

NUT - dome

3шт.

30

NSS

NOT SOLD SEPARAT

CLIP - dart, not shown

3шт.

33

1954650C1

STUD

- 8 x 80 mm

4шт.

34

F15988

SPACER

- seat mounting

4шт.

35

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, includes Ref. 22 on Figure 9-88 and Ref. 13 on this figure

1шт.
