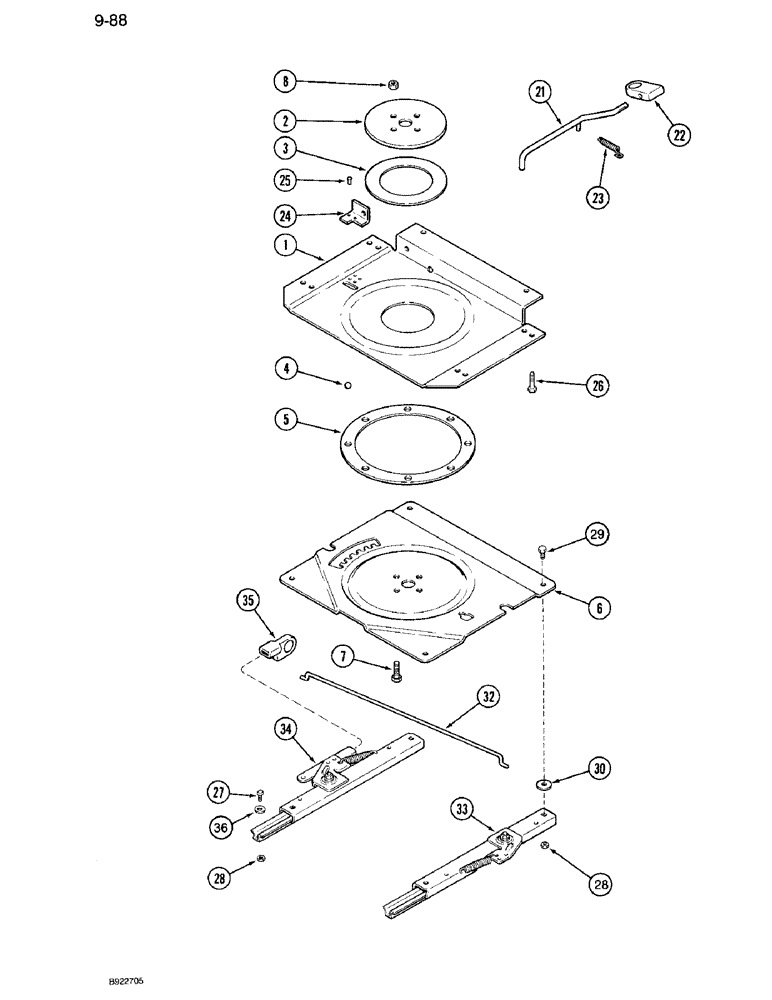

Запчасти Case IH 7120 (9-088) - AIR SUSPENSION SEAT, SWIVEL AND SLIDES, P.I.N. JJA00228200 AND AFTER (09) - CHASSIS/ATTACHMENTS

1987214C4

SEAT ASSY.

SEAT ASSEMBLY - air suspension, without brackets, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1987214C3, Includes: Ref. 1 - 36 and P/N 1344003C3

1шт.

1344003C3

SEAT SUPPORT

SWIVEL ASSEMBLY - seat, Replaces: 1344003C1, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - swivel, upper, Replaces: 1343857C1 and 1999896C1

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - swivel, Replaces:1343859C1

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - swivel bearing, Replaces: 1343860C1

1шт.

4

211-315

BALL,1/2" Dia

- 1/2 inch diameter

8шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - ball, Replaces: A49555

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - swivel, lower, Replaces: 1343858C1

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

21

1343862C2

ROD, ADJUSTMENT

ROD ASSEMBLY - latch, Includes: Ref. 22

1шт.

Used for service only on 460 mm wide seats prior to seat serial number 688971 and 500 mm wide seats prior to seat serial number 683824. 1343862C2 is not used for service on other seats.

1шт.

22

1343863C1

KNOB

- control, swivel, no longer available, order 1999692C1, shown below

1шт.

Part of Knob Kit, P/N 1999692C1

1шт.

23

N8680

SPRING

- latch rod

1шт.

24

1343861C1

SUPPORT

BRACKET - mounting, latch rod

1шт.

25

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, steel, 3/16 x 3/8 inch

2шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

27

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

4шт.

28

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Replaces 1974732C1 5/16"

4шт.

1344248C1

SLIDE

KIT - slide, double locking, Replaces: 1344247C1, Includes: Ref. 27 - 29 and 36, Includes: Ref. 32 - 34

1шт.

32

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.

33

1981823C1

SLIDE

ASSEMBLY - seat, right

1шт.

34

1981822C1

SLIDE

ASSEMBLY - seat, left, with handle

1шт.

35

1981829C1

WINDOW STAY

KNOB - fore and aft, no longer available, order 1999691C1 kit, shown below

1шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, includes Ref. 4, 5, 15, and 16, on Figure 9-86, Ref. 35 on this Figure, and two additional knobs not used

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, includes ref. 13 on Figure 9-94 and Ref. 22 on this figure

1шт.
