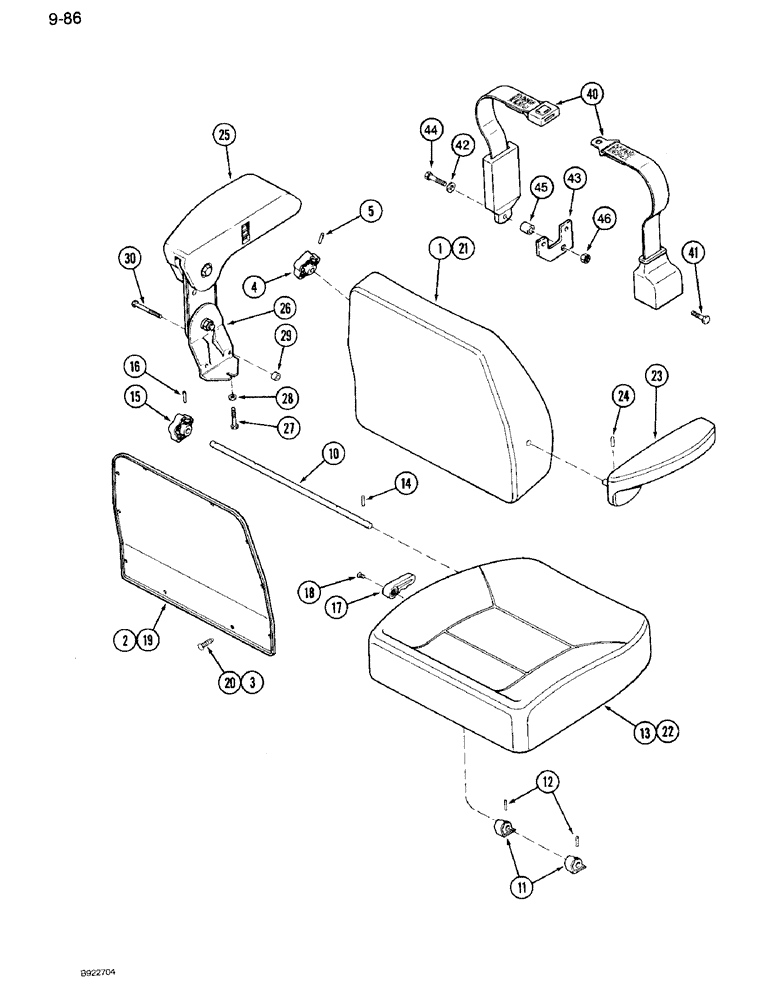

Запчасти Case IH 7120 (9-086) - AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT, P.I.N. JJA0028200 AND AFTER (09) - CHASSIS/ATTACHMENTS

1987214C4

SEAT ASSY.

SEAT ASSEMBLY - air suspension, without brackets, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1987214C3, Includes: Ref. 1 - 29

1шт.

1344004C3

SEAT ASSY.

CUSHION KIT - seat and backrest, Replaces: 1344004C2, Inlcudes: Ref. 1 - 18

1шт.

1344158C1

SET

KIT - seat belt, order components

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

Part number for seat back w/structure is 132886A1, same as delux seat asm.

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - backrest, order 1974713C2 kit, Ref. 19

1шт.

3

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

4

1981828C1

BUTTON

KNOB - lumbar, included in 1999691C1 kit, Figure 9-88

1шт.

5

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , In 1999691C1 kit, Figure 9-88 5/32" x 1", Slotted

1шт.

1987286C2

CUSHION, SEAT

KIT - seat cushion, Includes: Ref. 10 - 18 and P/N 1343847C2

1шт.

1343847C2

SHAFT ASSY.

SHAFT ASSEMBLY - cam, seat tilt, Includes: Ref. 10 - 12

1шт.

Used for service only on 460 mm wide seats prior to seat serial number 688971 and 500 mm wide seats prior to seat serial number 683824. 1343847C2 is not used for service on other seats.

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - cam

1шт.

11

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

12

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

13

NSS

NOT SOLD SEPARAT

KIT - seat cushion

1шт.

14

138-85

LOCK PIN,5/32" x 2", Slotted

PIN, , No longer in kit, order separately 5/32" x 2", Slotted

1шт.

15

1981826C1

KNOB

- seat tilt, included in 1999691C1 kit, Figure 9-88

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , In 1999691C1 kit, Figure 9-88 5/32" x 1", Slotted

1шт.

1987212C1

PACKAGE

KIT - seat knob, backrest tilt, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

LEVER - backrest tilt

1шт.

18

NSS

NOT SOLD SEPARAT

SCREW - machine, oval head cross recess, 6 x 12 mm

1шт.

1974713C2

PACKAGE

KIT - seat cover, back, Replaces: 1974713C1, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - backrest

1шт.

20

1999693C1

KIT

- clip, retaining, bag of 12, Replaces: 1974722C1

1шт.

1974702C2

PACKAGE,SERVICE

KIT - backrest cushion, Replaces: 1974702C1, Includes: Ref. 21 and ring

1шт.

21

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

44шт.

1974701C2

CUSHION, SEAT

KIT - seat cushion, Replaces: 1974701C1, Includes: Ref. 22 and ring

1шт.

22

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

48шт.

1990640C1

ARMREST

KIT - armrest, right-hand, grey, no longer available, order 1974703C2 black

1шт.

1974703C2

ARMREST ASSY.

KIT - armrest, right-hand, black, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

ARMREST - right-hand

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

25

1990639C1

ARMREST

KIT - armrest, left-hand, grey, no longer available, order 1974704C1 black

1шт.

25

1974704C1

ARMREST

KIT - armrest, left-hand, black

1шт.

26

107398A1

ARMREST

KIT - armrest, grey, left-hand, includes adjusting mechanism, Replaces: 1990638C1

1шт.

107399A1

SET OF PARTS

KIT - service, adjustable armrest, includes wheel, cable, hub, and hardware, not shown

1шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, Replaces 413-532

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

1шт.

29

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

1344158C1

SET

KIT - seat belt, order components, Includes: Ref. 30 - 46

1шт.

30

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch, Replaces 413-548

2шт.

40

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

41

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

42

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

43

1975957C1

BRACKET

- seat belt, left-hand

1шт.

44

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

1шт.

45

S5375

SPACER,3/8" Pipe x 3/8"

- 3/8 x 3/8 inch

1шт.

46

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex, self-locking, 7/16 inch NC

1шт.
