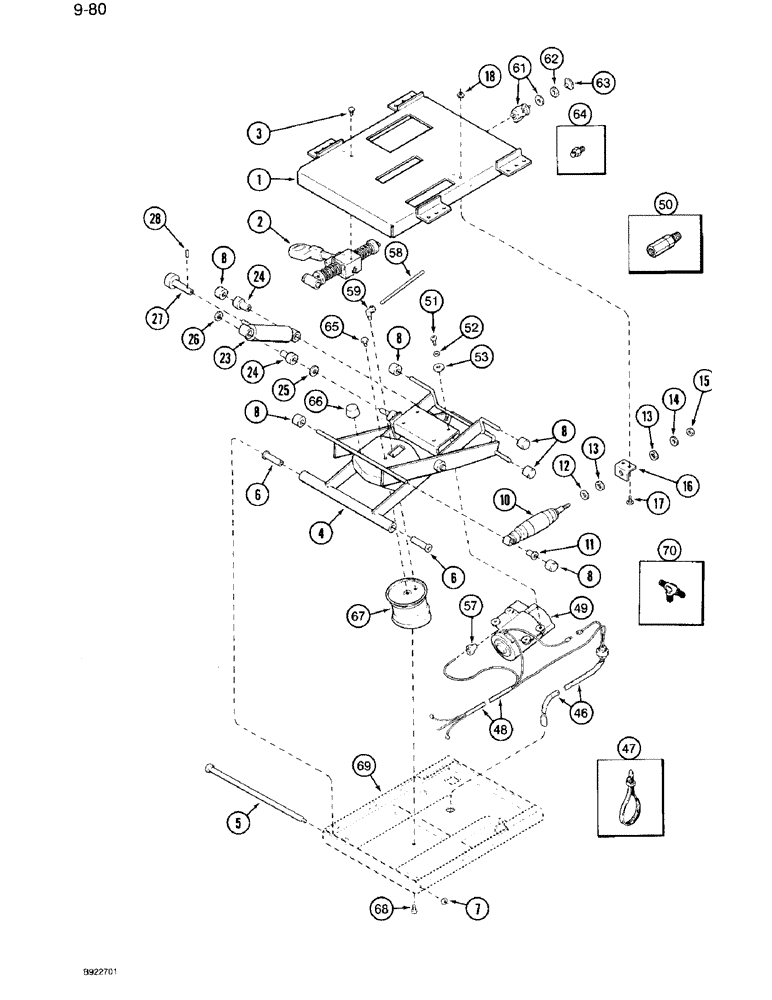

Запчасти Case IH 7120 (9-080) - AIR SUSPENSION SEAT, SUSPENSION, PRIOR TO P.I.N. JJA0028200 (09) - CHASSIS/ATTACHMENTS

1340097C3

SEAT

ASSEMBLY - air suspension, includes seat belt and brackets, no longer available, order 1999936C on Figure 9-95A, Replaces: 1340097C2, Includes: Ref. 1 - 70 and P/N's 1340096C1, 1343849C1

1шт.

1340096C1

SEAT

ASSEMBLY - air suspension, without belt and brackets, no longer available, order 1999936C1 on Figure 9-95A, Includes: Ref. 1 - 70

1шт.

1343849C1

SET OF PARTS

KIT - seat suspension, no longer available, order 1990641C2 kit, Figures 9-90 & 9-94, Includes: Ref. 1 - 70

1шт.

1

1981835C1

HOUSING

- upper, suspension, no longer available, order 1990642C1 kit, Figure 9-90

1шт.

2

REF

INSTRUCTION

LATCH ASSEMBLY - isolator, fore and aft, See Figure 9-84

1шт.

3

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head self-tapping, 5/16 NC x 3/4 inch

2шт.

4

1981836C1

ARM ASSY.

ARM ASSEMBLY - scissor, suspension

1шт.

5

A49529

SHAFT

- scissor arm

1шт.

6

A47760

BUSHING

- shaft, use 1344249C1 bearing kit

2шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

8

1981788C1

SHIFTER ROLLER

ROLLER - suspension, no longer available, order 1344249C1 bearing kit

6шт.

10

1981844C1

SHOCK ABSORBER

ABSORBER - shock, use 1990646C3 kit, Figure 9-90

1шт.

11

1981847C1

BUSHING

- shock absorber, no longer available, order 1990646C3 kit on Figure 9-90 or 9-95G

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

13

A49679

BUSHING

WASHER - rubber

2шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

14

A49678

WASHER

- flat, 21/64 x 1 x 5/64 inch

1шт.

15

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

16

1981845C1

ANGLE

- mounting

1шт.

17

434-38

BOLT

BOLT - carriage, 1/4 NC x 1/2 inch

2шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

18

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

23

1343854C1

DAMPER

ABSORBER - shock, no longer available, order 1987218C2 kit, Figure 9-90

1шт.

24

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

- shock absorber, included in 1987218C2 kit, Figure 9-90

2шт.

25

A45519

WASHER

- flat, 33/64 x 1-1/8 x 1/16 inch

1шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

27

1343853C1

LEVER ASSY & KNOB

KNOB - control, damping

1шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

Included in P/N 1990641C2 kit on Figure 9-90.

1шт.

46

1981848C2

HARNESS

- wire, no longer available, order 134237A1, Figure 9-92, Replaces: 1981848C1

1шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 6 inch long, included in 1999947C3, Figure 9-92

1шт.

48

1343833C1

TUBE

TUBING - corrugated, 3/8 ID x 24 inch

1шт.

49

1981843C1

COMPRESSOR

- air, no longer available, order 1999947C3 kit, Figure 9-92

1шт.

50

1990650C1

VALVE

- check, Serial Range: -594916

1шт.

51

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head cross recess, No. 8-32 x 3/8", Included in 1999947C3 kit, Figure 9-90

4шт.

52

495-31022

WASHER,#10

Included in 1999947C3 kit, Figure 9-92 #10

4шт.

53

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Replaces 1974732C1 5/16"

4шт.

57

1981864C1

UNION

ADAPTER - 1/8 PT x 5/32 inch tube

1шт.

Parts are no longer available, order P/N 1990548C3 air line and fitting kit on Figure 9-92.

1шт.

58

1981853C1

PLASTIC-RUBBER TUBE,0.156" OD, 6" Length

AIR HOSE 152.00 mm - Nylon, 5/32 OD

1шт.

Parts are no longer available, order P/N 1990548C3 air line and fitting kit on Figure 9-92.

1шт.

59

1981865C1

UNION

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube

1шт.

Parts are no longer available, order P/N 1990548C3 air line and fitting kit on Figure 9-92.

1шт.

60

1343946C1

TUBE

- nylon, 5/32 O.D. x 33 inch

1шт.

Parts are no longer available, order P/N 1990548C3 air line and fitting kit on Figure 9-92.

1шт.

61

1981852C2

IGNITION SWITCH

SWITCH ASSEMBLY - air control, mounts to 1981851C1 plate, Ref. 71, Replaces: 1981852C1 and Ref. 64, Includes: Ref. 62 - 64

1шт.

62

NSS

NOT SOLD SEPARAT

NUT - hex jam, 5/8 inch NF, included in 1981852C2, Figure 9-92

1шт.

63

1987186C1

BUTTON

KNOB - switch, included in 1981852C2 kit, Figure 9-92

1шт.

NSS

NOT SOLD SEPARAT

DECAL - air control, if equipped

1шт.

64

1344091C1

FITTING

ADAPTER - pipe thread to 5/32 inch tube, if equipped, used with switch 1981852C1 only

1шт.

Parts are no longer available, order P/N 1990548C3 air line and fitting kit on Figure 9-92.

1шт.

65

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

66

1981849C1

SHOCK ABSORBER

BUMPER - rubber

2шт.

67

1981842C1

SPRING

- air

1шт.

68

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat head cross recess, 3/8 NC x 3/4"

1шт.

69

REF

INSTRUCTION

HOUSING - lower, suspension, See Figure 9-84

1шт.

70

1344262C1

FITTING

TEE - male, 5/32 x 5/32 x 1/8 NPT

1шт.

Parts are no longer available, order P/N 1990548C3 air line and fitting kit on Figure 9-92.

1шт.

71

1981851C1

PLATE

- switch mounting, not shown

1шт.
