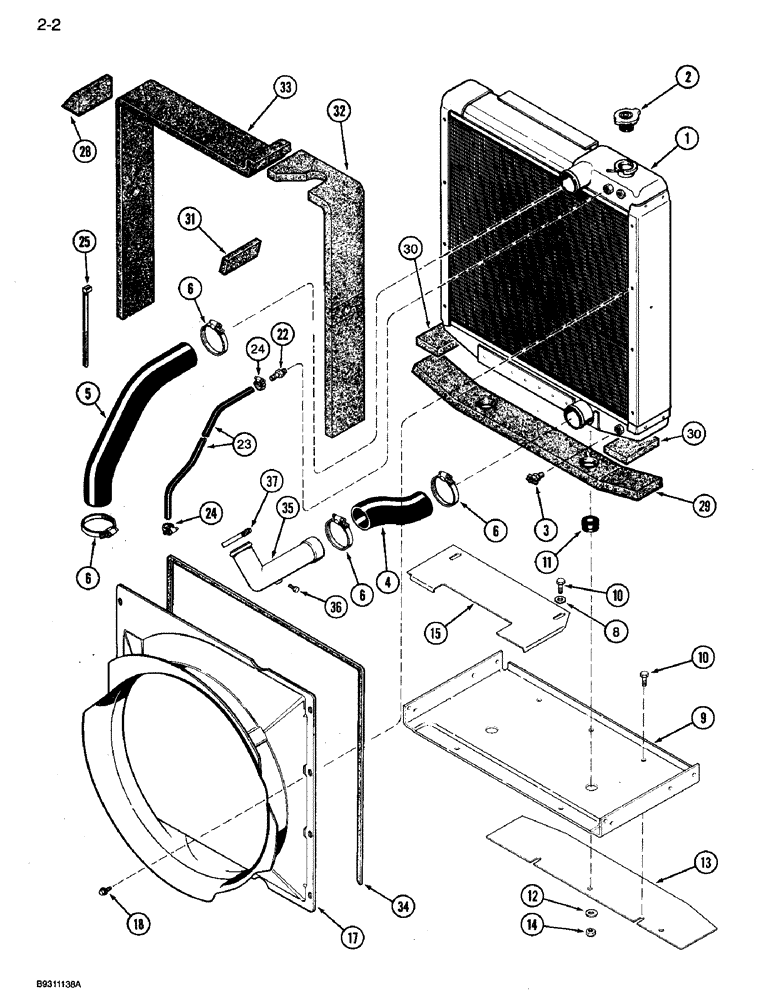

Запчасти Case IH 7120 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

A190663

RADIATOR

cooling system, Replaces: A184441

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

217-103

COCK, DRAIN

VALVE drain, Replaces: A23656

1шт.

4

1334477C1

RADIATOR HOSE,58.00 mm ID x 263.00 mm, SAE 20R4

Lower 58.00 mm ID x 263.00 mm, SAE 20R4

1шт.

5

1289072C1

LARGE HOSE,58.00 mm ID x 344.00 mm, SAE 20 R4 CLASS D1

RADIATOR HOSE, , Upper 58.00 mm ID x 344.00 mm, SAE 20 R4 CLASS D1

1шт.

6

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP hose, 1-13/16 to 2-3/4 inch

4шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

9

1340707C1

SUPPORT ASSY.

SUPPORT radiator, Replaces: 1960789C1

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

11

L46821

SHOCK ABSORBER

BUSHING rubber mount

2шт.

12

NLS

NO LONGER SERVICED

flat, radiator support

2шт.

13

1340708C1

LARGE PLATE

PLATE radiator

1шт.

14

131-1308

JAM NUT,Jam, 1/2"-13

NUT hex jam lock, 1/2 inch NC

2шт.

15

1955424C1

PLATE

bolster cover

1шт.

17

1289320C1

SHROUD

SHROUD fan

1шт.

18

REF

INSTRUCTION

BOLT hex flange, J I Case installed, order 413-514, 492-11031 and 495-21038

8шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

22

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector, barb 3/8" Hose X 1/4" NPTF Beaded

1шт.

23

1960764C1

RADIATOR HOSE,9.50 mm ID x 560.00 mm, SAE 20R3

Radiator vent to engine, If used 9.50 mm ID x 560.00 mm, SAE 20R3

1шт.

24

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP retaining, hose

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP retaining, nylon, Replaces: 533959R1

2шт.

28

1289476C1

SEAL

radiator, upper left

1шт.

29

1968024C1

SEAL

radiator, lower support

1шт.

30

1289473C1

SEAL

radiator, lower

2шт.

31

1289473C1

SEAL

radiator, upper right, Replaces: 1289475C2

1шт.

32

1348509C2

SEAL

radiator, Replaces: 1289474C2 and 1348509C1

1шт.

33

1348510C2

SEAL

radiator, Replaces: 1348510C1

1шт.

34

A171317

SEAL

fan shroud

2шт.

35

J907208

TUBE,50.8 mm DIA x 295.3 mm L

inlet, water

1шт.

36

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm-1.25 x 16 mm, Replaces J900629

1шт.

37

J922847

CLAMP

retaining, Replaces: 214-259

1шт.

253240A1

KIT

COOLING KIT for changing over to a direct drive cooling system

1шт.
