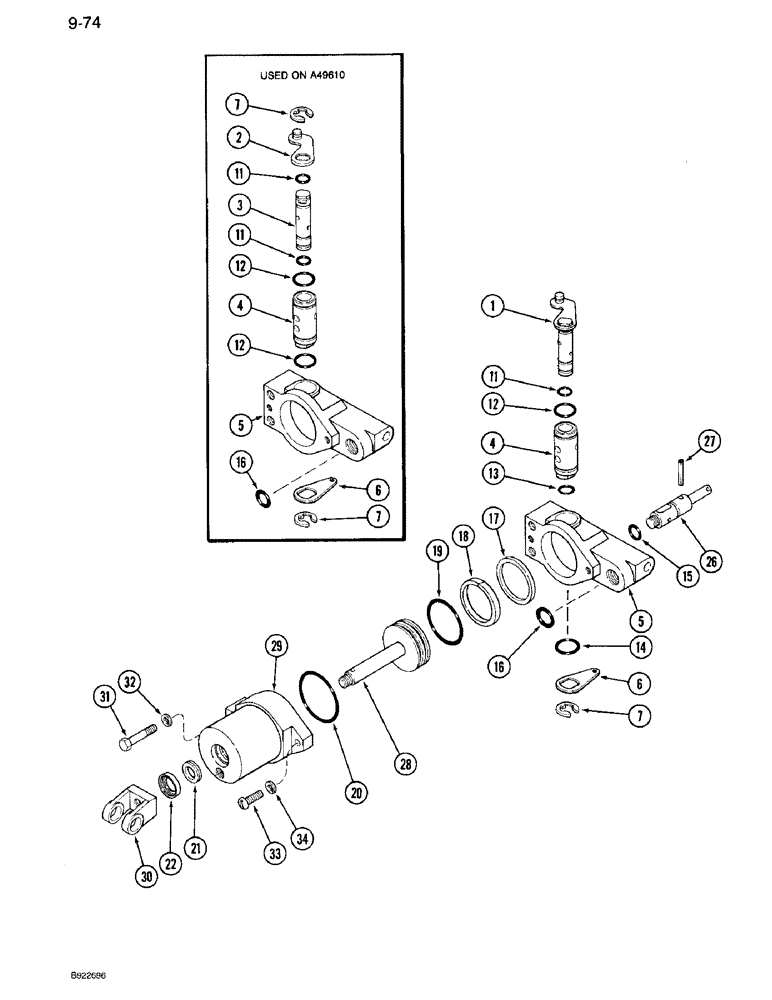

Запчасти Case IH 7120 (9-074) - SEAT CYLINDER ASSEMBLY, AIR/OIL SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A49828
CYLINDER
ASSEMBLY - module, Includes: Ref. 1 - 34 and P/N's A49610 and 1977388C1
1шт.
A49610
CYLINDER
ASSEMBLY - module, if equipped, order A49828, Includes: Ref. 1 - 34 and P/N 1977388C1
1шт.
1
NSS
NOT SOLD SEPARAT
SPOOL AND LEVER ASSEMBLY - push valve, used on A49828 only
1шт.
2
A49783
LEVER
- push valve spool, used on A49610 only
1шт.
3
A49781
SPOOL
- push valve, used on A49610 only
1шт.
4
NSS
NOT SOLD SEPARAT
VALVE - push, order A49828
1шт.
5
NSS
NOT SOLD SEPARAT
HEAD - front, cylinder, order A49828
1шт.
6
A49780
LEVER
- push valve
1шт.
7
A27785
CIRCLIP,#62, .480" Dia, E-Type
Ring, Retaining, , 2 used on A49610 #62, .480" Dia, E-Type
1шт.
1977388C1
GASKET KIT
O-RING AND SEAL KIT - cylinder, Includes: Ref. 11 - 22
1шт.
11
238-5111
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
2 used on A49610 -111, 70 Duro, .424" ID x .103" Thk
1шт.
12
238-5210
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
2 used on A49610 -210, 70 Duro, .734" ID x .139" Thk
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - push valve, used on A49828 only
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - push valve, used on A49828 only
1шт.
15
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
16
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
2шт.
17
A49687
RING
SEAL - piston ring
1шт.
18
A49685
RING
- piston wear
1шт.
19
238-5137
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
1шт.
20
238-5142
O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro
1шт.
21
A49686
SEAL
- piston rod
1шт.
22
A49684
WIPER SEAL
WIPER - piston rod
1шт.
26
A49782
SPOOL
- damper
1шт.
27
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
28
NSS
NOT SOLD SEPARAT
PISTON - cylinder
1шт.
29
NSS
NOT SOLD SEPARAT
HEAD - rear, cylinder
1шт.
30
NSS
NOT SOLD SEPARAT
CLEVIS - cylinder
1шт.
31
NSS
NOT SOLD SEPARAT
BOLT - hex, retaining
1шт.
32
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
33
NSS
NOT SOLD SEPARAT
BOLT - special, retaining
1шт.
34
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
Выбрано товаров: 31
