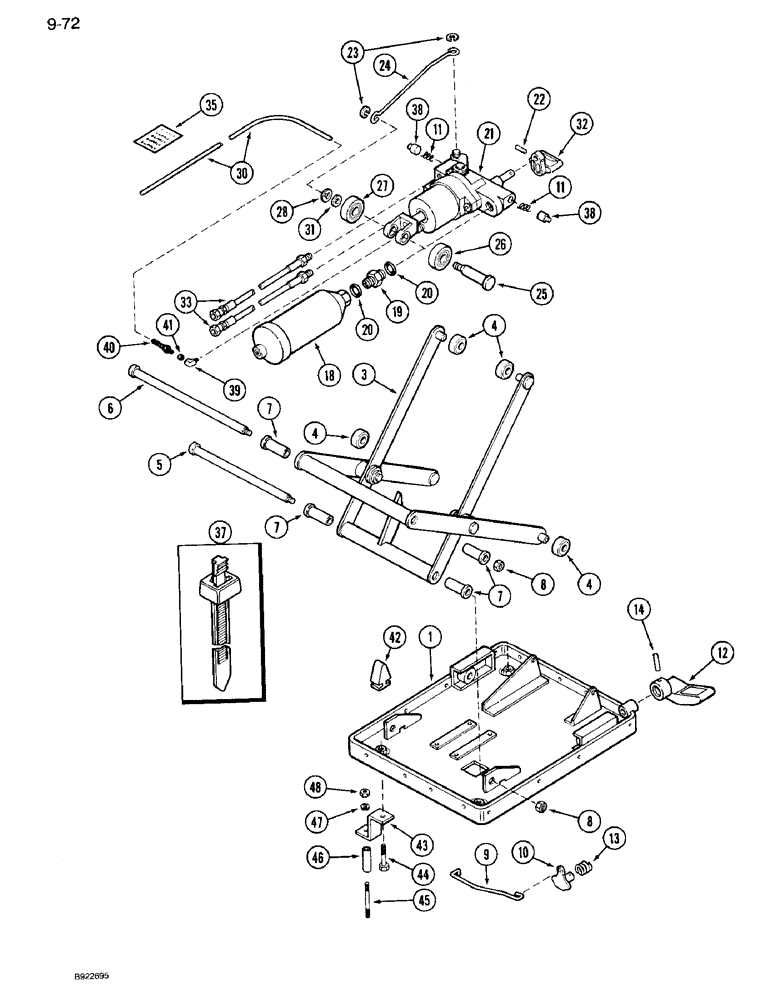

Запчасти Case IH 7120 (9-072) - SEAT SUSPENSION, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1954440C5

SEAT

ASSEMBLY - operator, air/oil, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1954440C4, Includes: Ref. 1 - 41 and P/N 237-6005

1шт.

1

1974724C1

HOUSING

ASSEMBLY - suspension, lower

1шт.

3

A49526

ARM

ASSEMBLY - scissor, suspension

1шт.

4

A49527

ROLLER

- suspension

4шт.

5

A49528

SHAFT

- torque tube

1шт.

6

A49529

SHAFT

- bearing tube

1шт.

7

A47760

BUSHING

TUBE - bearing

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

1974728C1

UNIT

MODULE ASSEMBLY - hydraulic final, Includes: Ref. 9 - 41

1шт.

9

1971234C1

CLIP

CONTROL WIRE - suspension

1шт.

10

A49535

LEVER

CONTROL ASSEMBLY - height adjustment

1шт.

11

A49537

SPRING

- control

2шт.

12

A49536

HANDLE

- height adjustment

1шт.

13

A49538

SPRING

- control

1шт.

14

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

18

A49617

ACCUMULATOR

- module

1шт.

19

A49620

FITTING

CONNECTOR ASSEMBLY - straight, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - module, See Figure 9-74

1шт.

22

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

23

A49623

RING, SNAP

RING - retaining

2шт.

24

A49615

ROD

- linkage, valve

1шт.

25

A49613

SHAFT

- cam roller

1шт.

26

A49614

ROLLER BEARING,17 mm ID x 44.48 mm OD x 12 mm

BEARING - roller

2шт.

27

A49616

NEEDLE BEARING,16.99mm ID x 40mm OD x 20mm W

BEARING - follower, cam

1шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE - drain, order A21561 and, Serial Range: cut-length

1шт.

31

95-81077

WASHER,0.39" ID x 0.62" OD x 0.07" Thk

- flat, 25/64 x 5/8 x 1/16 inch

1шт.

32

1974730C1

BUTTON

KNOB - damper valve

1шт.

33

1974731C1

HOSE ASSY.

HOSE - hydraulic, supply and return

2шт.

35

A49621

DECAL

LABEL - supply, pressure

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

38

A49531

PIN

- trunnion

2шт.

39

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

40

A49784

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - special nut, Includes: Ref. 41 and P/N 237-6005

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - elbow, order A49784

1шт.

42

A49530

INSULATOR BLOCK

BUMPER - suspension

2шт.

43

97026C1

BRACKET

- seat mounting

4шт.

44

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

45

1954650C1

STUD

- seat mounting

4шт.

46

F15988

SPACER

- seat mounting

4шт.

47

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

48

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

4шт.

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Not shown

1шт.
