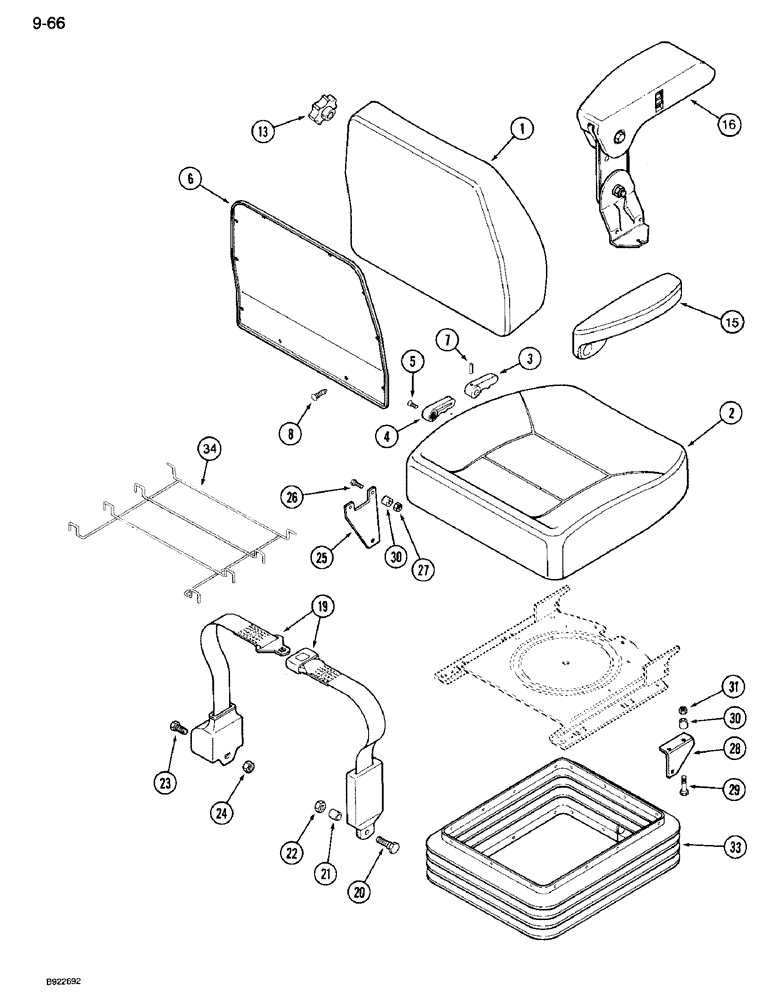

Запчасти Case IH 7120 (9-066) - SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1954440C5

SEAT

ASSEMBLY - operator, air/oil, no longer available, order 1999936C1 on Figure 9-95A, Replaces: 1954440C4, Includes: Ref. 1 - 33 and P/N1974700C1

1шт.

1974700C1

SET OF PARTS

SEAT KIT - top, service, Includes: Ref. 1 - 13

1шт.

1974700C1

SET OF PARTS

SEAT KIT - top, service

1шт.

1

132886A1

BACKREST

seat, cushion, order 1974702C1

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - seat, order 1974701C1

1шт.

3

1974712C1

LEVER

KNOB - seat tilt

1шт.

4

1987212C1

PACKAGE

KNOB ASSEMBLY - backrest tilt, no longer available, order ref. 35, 1999691C1 on Figure 9-88, Replaces: 1974711C1, Includes: Ref. 5

1шт.

5

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, oval head cross recess, 6 x 12 mm

1шт.

6

1974713C2

PACKAGE

COVER - seat backrest, Replaces: 1974713C1

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

7

138-2024

PIN,5/32" x 1", Coiled

1шт.

8

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

NSS

NOT SOLD SEPARAT

WASHER - rubber

4шт.

NSS

NOT SOLD SEPARAT

SPACER - bolt

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 x 3 inch NC

2шт.

1974732C1

WASHER

- flat

4шт.

13

1974710C1

BUTTON

KNOB - backrest lumbar

1шт.

1974701C2

CUSHION, SEAT

KIT - cushion, seat service, includes pad and rings

1шт.

Also order Ref. 34 support on this Fig. and 1343847C2 shaft assembly, Refs. 10 - 12 on Fig. 9-86, for seats prior to seat serial number 683824.

1шт.

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

48шт.

1974702C2

PACKAGE,SERVICE

KIT - cushion, backrest service, Replaces: 1974702C1, Includes pad and rings

1шт.

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

44шт.

15

1974703C2

ARMREST ASSY.

KIT - armrest, right-hand, black, includes armrest and pin

1шт.

The parts listed as NSS are P/N 1981851C1 Plastic Pin and P/N 199682C1 Armrest, Gray Armrest Assy. was P/N 107398A1 and the Gray Armrest alone P/N 1990639C1.

1шт.

NSS

NOT SOLD SEPARAT

ARMREST - seat, right-hand

1шт.

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

16

1974704C1

ARMREST

KIT - armrest, left-hand

1шт.

17

107394A1

ARMREST

KIT - armrest mechanism, black, left-hand, includes armrest, mechanism and hardware, Replaces: 1974705C1

1шт.

18

107399A1

SET OF PARTS

KIT - service, adjustable armrest, includes wheel, cable, hub, and hardware, not shown

1шт.

The Thumb Wheel is NSS.

1шт.

19

1343982C1

SAFETY BELT

SAFETY BELT, Replaces 1954788C1

1шт.

20

A61946

STEP BOLT

BOLT - hex, 7/16 NC x 1-3/4 inch

1шт.

21

S5375

SPACER,3/8" Pipe x 3/8"

- bolt

1шт.

22

131-667

NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

24

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

25

1971374C1

SUPPORT

BRACKET - seat belt, left-hand

1шт.

26

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

- hex, 1/2 NC x 1 inch

1шт.

27

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

28

1971375C1

BRACKET

- seat belt, right-hand

1шт.

29

424-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 2

- hex, 7/16 NC x 1-3/4 inch

1шт.

30

S5375

SPACER,3/8" Pipe x 3/8"

- pipe, 3/8 x 3/8 inch

2шт.

31

131-667

NUT,7/16"-14, GB

NUT - lock, 7/16 inch NC

1шт.

33

1974709C1

BELLOWS

BOOT - seat

1шт.

34

1999440C1

SUPPORT

- seat cushion, not included in 1954440C5 assembly

1шт.
