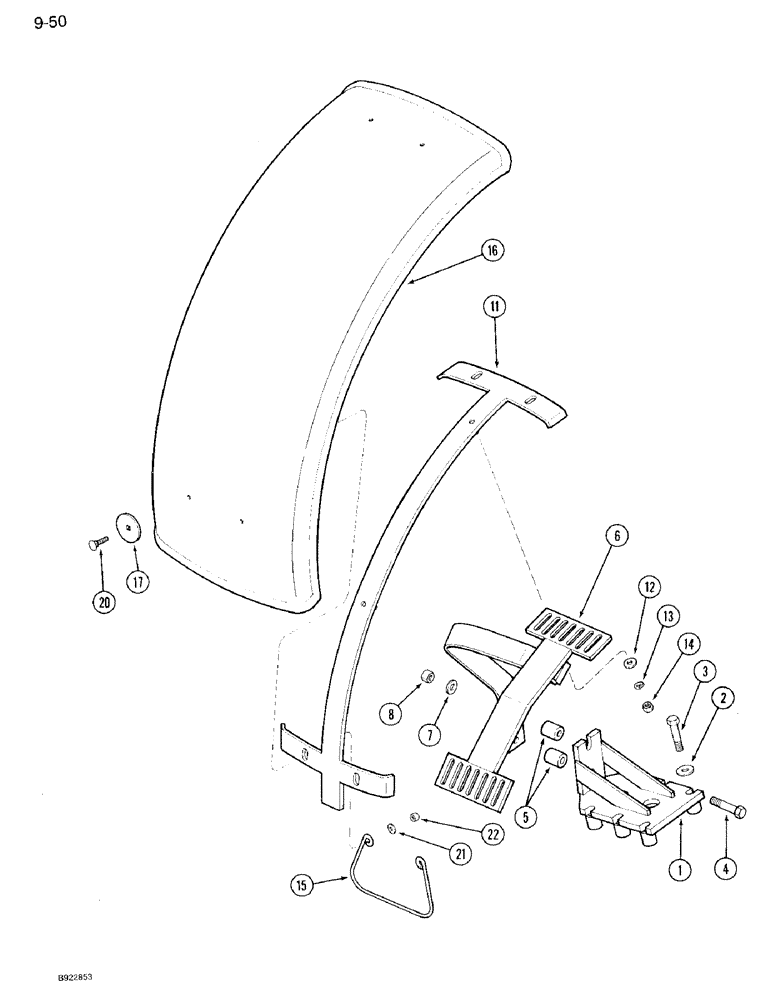

Запчасти Case IH 7120 (9-050) - FRONT FENDERS, MFD TRACTOR, P.I.N. JJA0016108 THROUGH JJA0021778 (09) - CHASSIS/ATTACHMENTS

1

1340591C1

BRACKET

- fender mounting

2шт.

Upper part of bracket may have a slot or a hole for mounting Ref 6, fender support brace.

1шт.

2

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

3

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

8шт.

4

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

4шт.

5

1340558C1

SPACER

- fender brace

2шт.

6

1340633C1

BRACE

- fender support, right, shown

1шт.

6

1340634C1

SUPPORT

BRACE - fender support, left

1шт.

7

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

8

825-1416

NUT,M16, Cl 8

4шт.

11

1280593C2

SUPPORT

- fender, inner

2шт.

12

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

15

1285781C1

SUPPORT

- lower fender

2шт.

16

3404842R1

FENDER

- front wheel

2шт.

17

1340559C1

WASHER

- flat, 2-1/2 inch

8шт.

20

1340640C1

BOLT

- round head square neck, 5/16 NC x 1-1/4 inch

8шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.
