Запчасти Case IH 7120 (9-044) - HYDRAULIC OIL FILTER COVER, PRIOR TO P.I.N. JJA0039446 (09) - CHASSIS/ATTACHMENTS

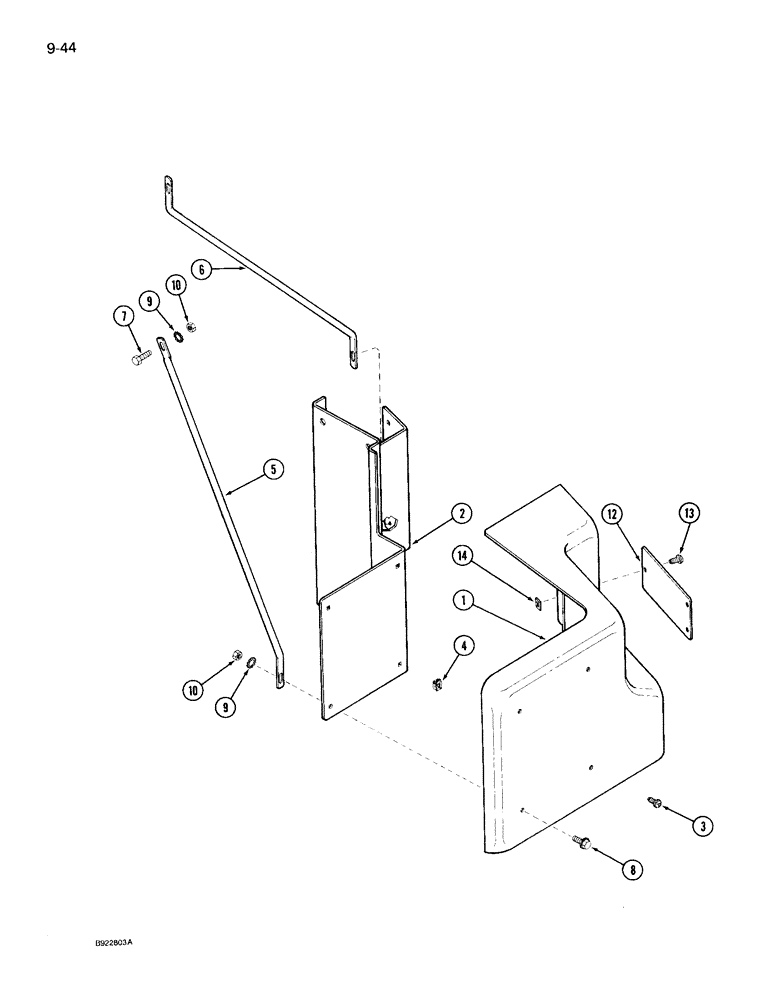

Схема запчастей Case IH 7120 - (9-044) - HYDRAULIC OIL FILTER COVER, PRIOR TO P.I.N. JJA0039446 (09) - CHASSIS/ATTACHMENTS
9
10
10
12
5
13
14
1
8
6
3
7
9
2
4

Артикул

Название

Примечание

Количество

1

96766C2

COVER ASSY

COVER - oil filter service

1шт.

2

1334631C1

ANGLE

- hydraulic filter cover, mounting

1шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

4шт.

4

104036C1

NUT

- expansion, No. 10-16 inch

4шт.

5

1334615C2

SUPPORT

ROD - mounting, filter cover

1шт.

6

1334616C3

ROD

- hydraulic filter cover, mounting

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

8

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 x 20 mm

2шт.

9

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

3шт.

10

825-1406

NUT,M6, Cl 8

3шт.

12

1334657C1

LARGE PLATE

PLATE - flood lamp option, cover

1шт.

13

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - cross recess tapping, No. 10-16 x 3/4 inch

3шт.

14

97123C1

NUT

- flat, No. 10-16 inch

3шт.

1340713C1

ATTACHMENT

GRILLE KIT - heavy trash, parts not shown, Includes: Ref. 20 - 26

1шт.

20

1340714C1

ATTACHMENT

GRILLE - upper, heavy trash, kit

1шт.

21

1340715C1

ATTACHMENT

GRILLE - lower, heavy trash, kit

1шт.

22

1340716C1

SEAL

- front, lower grille, heavy trash, kit

1шт.

23

1340717C1

SEAL

- lower side, grille, heavy trash, kit

2шт.

24

1340718C1

SEAL

- front, upper grille, heavy trash, kit

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - hex self tapping, No.14 x 1-1/4 inch, heavy trash grille kit

2шт.

26

NSS

NOT SOLD SEPARAT

SCREW - hex self tapping, No.8 x 1/2 inch, heavy trash grille kit

2шт.

Выбрано товаров: 21
