Запчасти Case IH 7120 (9-038) - HOOD LOWER SIDE PANELS AND SCREENS (09) - CHASSIS/ATTACHMENTS

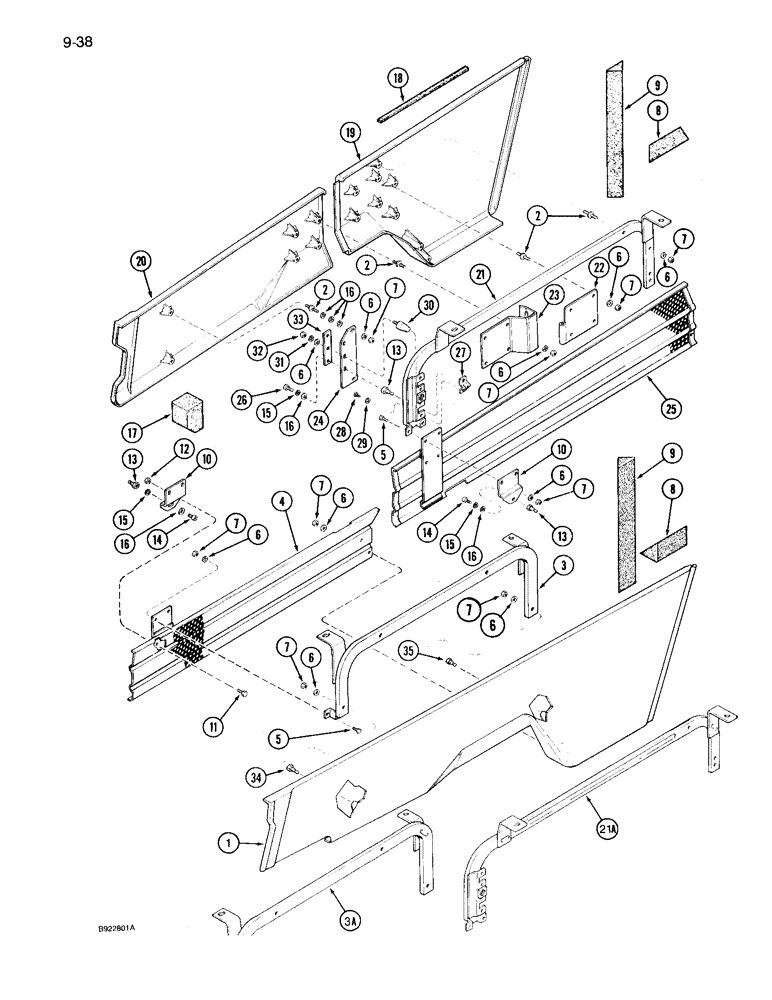

Схема запчастей Case IH 7120 - (9-038) - HOOD LOWER SIDE PANELS AND SCREENS (09) - CHASSIS/ATTACHMENTS
8
9
2
5
22
11
15
7
6
6
6
26
30
17
14
13
6
20
32
7
8
21a
29
7
6
4
7
7
7
16
3
16
27
7
9
14
21
2
10
1
34
12
23
6
13
16
7
28
7
5
13
6
15
6
24
35
6
31
6
2
16
25
15
19
3a
18
10
33

Артикул

Название

Примечание

Количество

1

128014A1

PANEL ASSY.

PANEL - hood, lower side right, Replaces: 1289316C2 and 1342154C2, includes Ref. 36 wear strip

1шт.

2

1968127C1

STUD

- mounting, 1/4 inch NC

1шт.

3

1960826C2

SUPPORT

- side panel, right, no longer available, order 1348580C1 support, Ref. 3A

1шт.

3a

1348580C1

SUPPORT

- side panel, right

1шт.

4

1960793C5

PROTECTION PLATE

SCREEN - hood, side right

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

7

131-1418

LOCK NUT,1/4"-20, Thin

NUT - lock, thin, 1/4 inch NC

1шт.

8

1974400C3

SEAL

- lower side, panel front

2шт.

9

1974407C2

SEAL

- lower side panel

2шт.

10

1960849C1

BRACKET

- screen latch outer

2шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

13

1348465C1

BALL STUD,#10 - 32

- rear side panel latch, Replaces: 1960762C1

1шт.

14

463-61010

SCREW,Hex, #10 - 32 x 5/8"

2шт.

15

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

16

495-31022

WASHER,#10

1шт.

17

1968061C1

SEAL

SEAL - side panel, left, ROPS only

1шт.

17

1968128C1

SEAL

SEAL - side panel, right, shown, ROPS only

1шт.

18

1348429C1

SEAL

- hood lower side panels, top, 386 mm (order 1348430C1 and, Serial Range: cut-length)

2шт.

19

128015A1

PANEL ASSY.

PANEL - hood front low, Replaces: 1289315C2 and 1289315C3, includes Ref. 36 wear strip

1шт.

20

1289399C3

PANEL ASSY.

PANEL - hood rear lower side left

1шт.

21

1960823C4

SUPPORT

- side panel, left, no longer available, order 1348583C1, Ref. 21A

1шт.

21a

1348583C1

SUPPORT

- side panel, left

1шт.

22

1348384C1

HINGE

- side panel front

1шт.

23

1348383C1

HINGE

- side panel rear

1шт.

24

1968038C3

SUPPORT ASSY.

SUPPORT - latch outer

1шт.

25

1960792C5

PROTECTION PLATE

SCREEN - hood side left

1шт.

26

463-61010

SCREW,Hex, #10 - 32 x 5/8"

2шт.

27

1960763C3

LATCH

RECEIVER - left rear side panel stud

2шт.

28

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - pan head, No. 8-18 x 5/8 inch

4шт.

29

495-21019

WASHER,#8

4шт.

30

A149863

GUIDE

- left rear side panel

1шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch

1шт.

33

1968137C1

PLATE ASSY.

PLATE - latch, outer rear

1шт.

34

1348552C1

STUD,9/32" - 16 x 0.7"

- mounting. lower side panel

1шт.

35

1348465C1

BALL STUD,#10 - 32

- rear side panel latch

2шт.

36

1348479C1

FOAM

STRIP - wear, panel end, 517 mm, order 1348532C1 and cut to length, not shown

2шт.

1348430C1

SEAL

- 50 foot, bulk roll

1шт.

1348532C1

ROLL

STRIP - wear, bulk roll

1шт.

Выбрано товаров: 41
