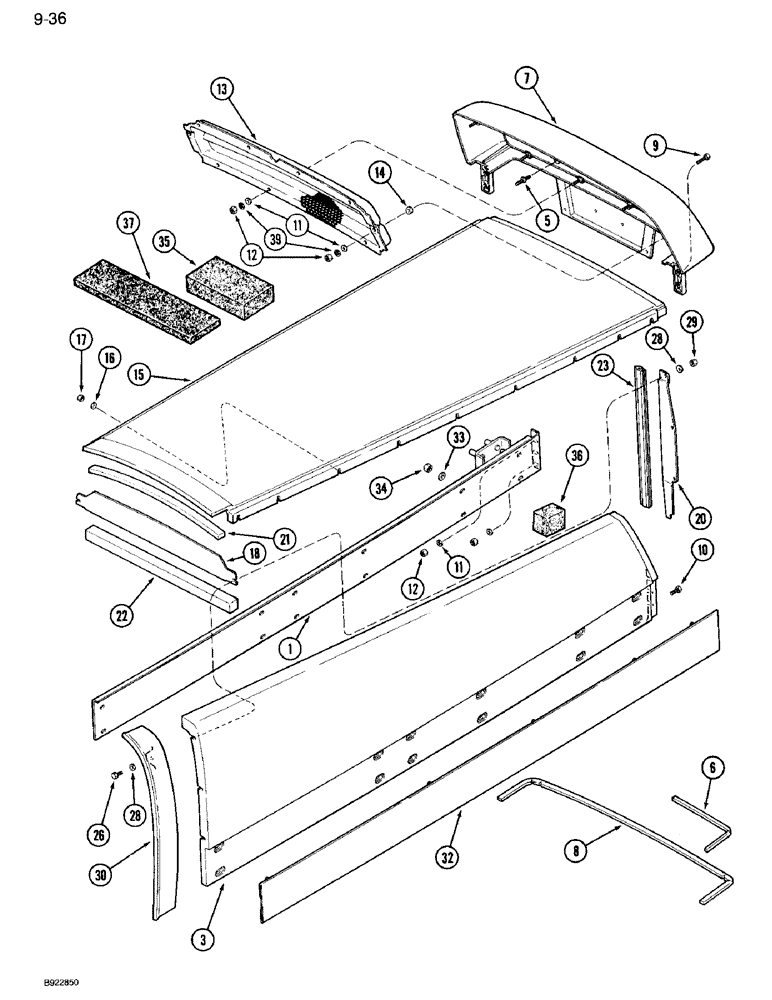

Запчасти Case IH 7120 (9-036) - HOOD, UPPER SIDE PANELS, AND UPPER GRILLE (09) - CHASSIS/ATTACHMENTS

1

1348364C1

SILL

FRAME - hood side, right, shown, Replaces: 1289362C2

1шт.

1

1348455C1

SILL

FRAME - hood side, left, Replaces: 1289360C2

1шт.

3

1348355C1

PANEL ASSY.

PANEL - hood, upper right, Shown, Replaces: 1289342C2

1шт.

3

1289341C2

PANEL ASSY.

PANEL - hood upper left

1шт.

5

1968127C1

STUD

- mounting, 1/4 inch NC

1шт.

6

1334318C1

SEAL - upper grille housing, bottom right, 343 mm, order 1348430C1 bulk seal and, Serial Range: cut-length

1шт.

6

1334317C1

SEAL - upper grille housing, bottom left, 343 mm, order 1348430C1 bulk seal and, Serial Range: cut-length

1шт.

7

1289074C2

HOUSING

- upper grille

1шт.

8

1348428C1

SEAL

- upper grille

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

20шт.

12

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

20шт.

13

1976792C1

SIEVE

SCREEN - grille, upper, Replaces: 1289081C2

1шт.

14

A147030

SPACER

- grille screen

2шт.

15

1289314C1

PANEL ASSY.

HOOD - top center

1шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

18шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

18шт.

18

1960788C1

ADAPTER

- hood seal center, ROPS only

1шт.

20

1960786C1

ADAPTER

- hood seal left, ROPS only

1шт.

20

1960787C1

ADAPTER

- hood seal right, shown, ROPS only

1шт.

21

1968072C1

SEAL

SEAL - hood center, ROPS only

1шт.

22

1968148C1

SEAL

SEAL - hood upper, ROPS only

1шт.

23

1968062C1

SEAL

SEAL - hood side, ROPS only

2шт.

26

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, ROPS only

6шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

28

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

12шт.

29

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

6шт.

30

1289322C1

HOUSING

COVER - hood to cab transition right, shown

1шт.

30

1289321C1

HOUSING

COVER - hood to cab transition left

1шт.

32

1974411C1

PANEL

- decal

2шт.

33

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

20шт.

34

131-205

LOCK NUT,5/16"-18

NUT - hex elastic, 5/16 inch

20шт.

35

1342160C1

SEAL

SEAL - hood to radiator, Replaces: 1289470C1

1шт.

36

1968082C1

SEAL

SEAL - hood to radiator corner

2шт.

37

1342164C1

SEAL

SEAL - hood to radiator, Replaces: 1289471C1

1шт.

39

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

10шт.

1348430C1

SEAL

- 50 foot, bulk roll

1шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
