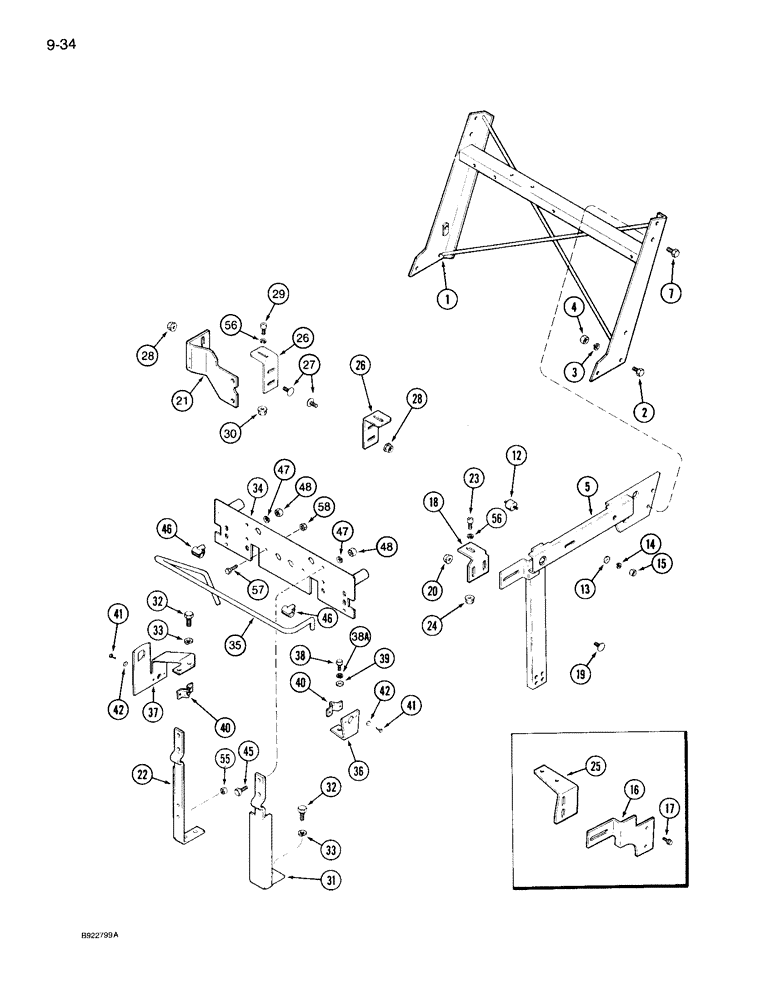

Запчасти Case IH 7120 (9-034) - HOOD SUPPORTS, P.I.N. JJA0019507 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1334382C4

SUPPORT

- hood front

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

1348511C1

SUPPORT ASSY.

CHANNEL - hood, right, shown, Replaces: 1968066C2

1шт.

5

1348512C1

SUPPORT ASSY.

CHANNEL - hood, left, Replaces: 1968067C2

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

12

A145743

MOUNTING PARTS

MOUNT - radiator upper, rubber

2шт.

13

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

16

1334489C2

SUPPORT

- side panel right front, shown, if equipped

1шт.

16

1334472C2

SUPPORT

- side panel left front, if equipped

1шт.

17

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex flange, 8 x 12 mm, If equipped

4шт.

18

1334474C1

BRACKET

- side panel support

2шт.

19

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

BOLT - round head square neck, 10 x 20 mm

4шт.

20

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

21

1334565C4

SUPPORT ASSY.

SUPPORT - side panel

1шт.

22

1289062C2

SUPPORT ASSY.

SUPPORT - hood release, left

1шт.

23

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 x 20 mm

2шт.

24

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

25

1334563C2

SUPPORT ASSY.

SUPPORT - side panel right rear, if equipped

1шт.

26

1334564C2

SUPPORT

BRACKET - side panel, support rear

2шт.

27

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

BOLT - round head square neck, 10 x 20 mm

4шт.

28

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

29

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 x 20 mm

2шт.

30

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

31

1289064C1

SUPPORT ASSY.

SUPPORT - hood release, right

1шт.

32

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

33

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

34

1340550C2

SUPPORT

- hood rear

1шт.

35

1340604C1

HANDLE

- hood release

1шт.

36

1960805C4

BRACKET

- screen latch inner right

1шт.

37

1340590C1

SUPPORT

BRACKET - screen latch inner left

1шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

1шт.

38a

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

40

1968039C3

FASTENER

RECEIVER - screen, latch stud

2шт.

41

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - pan head, No. 8-18 x 5/8 inch

4шт.

42

495-21019

WASHER,#8

4шт.

45

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

46

A169954

BUSHING

- hood release

2шт.

47

892-11010

LOCK WASHER,M10

2шт.

48

825-1410

NUT,M10, Cl 8

2шт.

55

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

56

892-12008

LOCK WASHER,M8.2

WASHER - lock, 8 mm

4шт.

57

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

58

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
