Запчасти Case IH 7120 (9-028) - ENGINE MOUNT AND SIDE FRAME (09) - CHASSIS/ATTACHMENTS

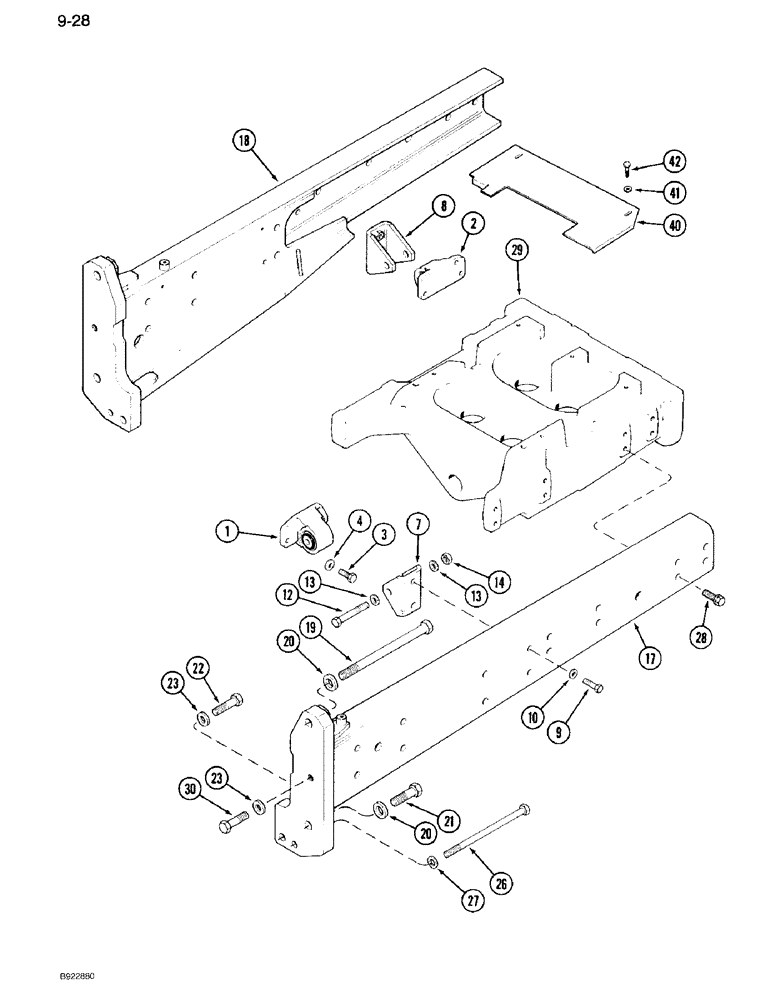

Схема запчастей Case IH 7120 - (9-028) - ENGINE MOUNT AND SIDE FRAME (09) - CHASSIS/ATTACHMENTS
13
18
40
23
27
8
42
20
7
2
22
20
23
4
26
21
19
29
30
13
41
9
10
12
1
14
28
17
3

Артикул

Название

Примечание

Количество

1

1334670C4

SUPPORT

MOUNT - engine, right

1шт.

2

1334669C4

SUPPORT

MOUNT - engine, left

1шт.

3

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 35 mm

6шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm

6шт.

7

1960839C1

SUPPORT

BRACKET - engine mount, right

1шт.

8

1960841C1

SUPPORT

BRACKET - engine mount, left

1шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

12

826-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

- hex, 16 mm - 2.0 x 100 mm, 10.9

2шт.

13

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

4шт.

14

825-1416

NUT,M16, Cl 8

2шт.

17

1289057C2

RAIL

FRAME - side rail, right

1шт.

18

1289056C1

RAIL

FRAME - side rail, left

1шт.

19

828-22305

BOLT,Hex, M22 x 2.5 x 305mm, Cl 10.9

- hex, 22 mm - 2.5 x 305 mm, 10.9

2шт.

20

1289069C1

WASHER

- flat

4шт.

21

828-22070

BOLT,Hex, M22 x 2.5 x 70mm, Cl 10.9

- hex, 22 mm - 2.5 x 70 mm, 10.9

2шт.

22

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 x 70 mm, class 10.9

2шт.

23

A177650

WASHER

- flat

4шт.

26

828-16280

BOLT,Hex, M16 x 2 x 280mm, Cl 10.9

2шт.

27

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

- flat, hardened, 17.5 x 34 x 5 mm

2шт.

28

A169100

BOLT

- hex flange, 16 mm - 2.0 x 45 mm, class 10.9

16шт.

29

A185918

SUPPORT ASSY.

SUPPORT - front end

1шт.

30

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 x 70 mm, class 10.9

2шт.

40

1955424C1

PLATE

- bolster cover

1шт.

41

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

42

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

Выбрано товаров: 26
