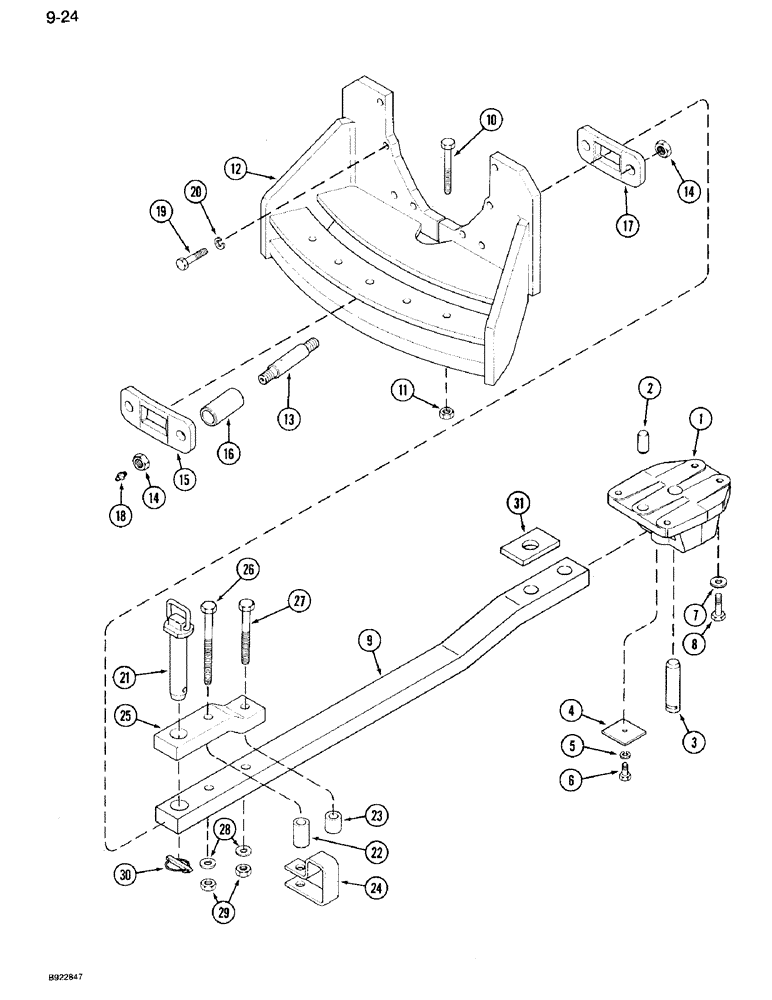

Запчасти Case IH 7120 (9-024) - DRAWBAR, WITHOUT HITCH, P.I.N. JJA0023395 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

142619C3

SUPPORT ASSY.

SUPPORT - pivot, drawbar, Replaces: 1982147C1, Includes: Ref. 2

1шт.

2

837-25050

DOWEL,M25 x 50, HDN

pin M25 x 50, HDN

1шт.

3

1982103C1

PIN,34.87mm OD x 140mm L

- pivot, drawbar

1шт.

4

67828C1

RETAINER

- pin, drawbar

1шт.

5

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

7

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

- flat, 16 mm

4шт.

8

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

9

1348127C1

PLATE

DRAWBAR - swinging

1шт.

10

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

2шт.

11

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, M16 x 2, Cl 8

2шт.

12

1982156C3

SUPPORT

BRACKET ASSEMBLY - rear support

1шт.

13

1998066C1

PIN

- drawbar roller, Replaces: T38572

2шт.

14

23443R1

LOCK NUT,1"-8, GC

NUT - hex lock, 1 inch

4шт.

15

1982141C1

LARGE PLATE

PLATE - rear support

1шт.

16

A145831

BUSHING

ROLLER - drawbar

2шт.

17

1982142C1

LARGE PLATE

PLATE - front support

1шт.

18

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

2шт.

19

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

8шт.

20

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

- lock, 16 mm

8шт.

21

1286985C4

HITCH PIN,40mm OD x 200mm L

PIN ASSEMBLY - drawbar hitch

1шт.

22

1286924C1

SPACER

- strap

1шт.

23

1331939C1

SPACER

- strap

1шт.

24

1331943C1

SUPPORT ASSY.

SUPPORT - chain, safety

1шт.

25

1348030C1

DRAWBAR,306mm L x 76.2mm W x 38.1mm Thk, 31.9mm Offset

STRAP - hammerstrap

1шт.

26

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

- hex, 20 x 200 mm, class 10.9

1шт.

27

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

- hex, 20 x 150 mm, class 10.9

1шт.

28

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

2шт.

29

829-1420

NUT,M20, Cl 10

2шт.

30

1348043C1

LINCH PIN

Assy - lock, Klik

1шт.

31

224619C2

SPACER

- drawbar pivot

1шт.
